64k- or 32k-color Type
A2-7
A2
3D Parts
* Using parts with “II” (such as “3D-II”) in their comment fields is recommended.
Parts with “I” are for the 128-color type (V6-compatible).
For more information on the [Change Part] dialog, refer to “How to Modify the Placed Part”
page 3-55.

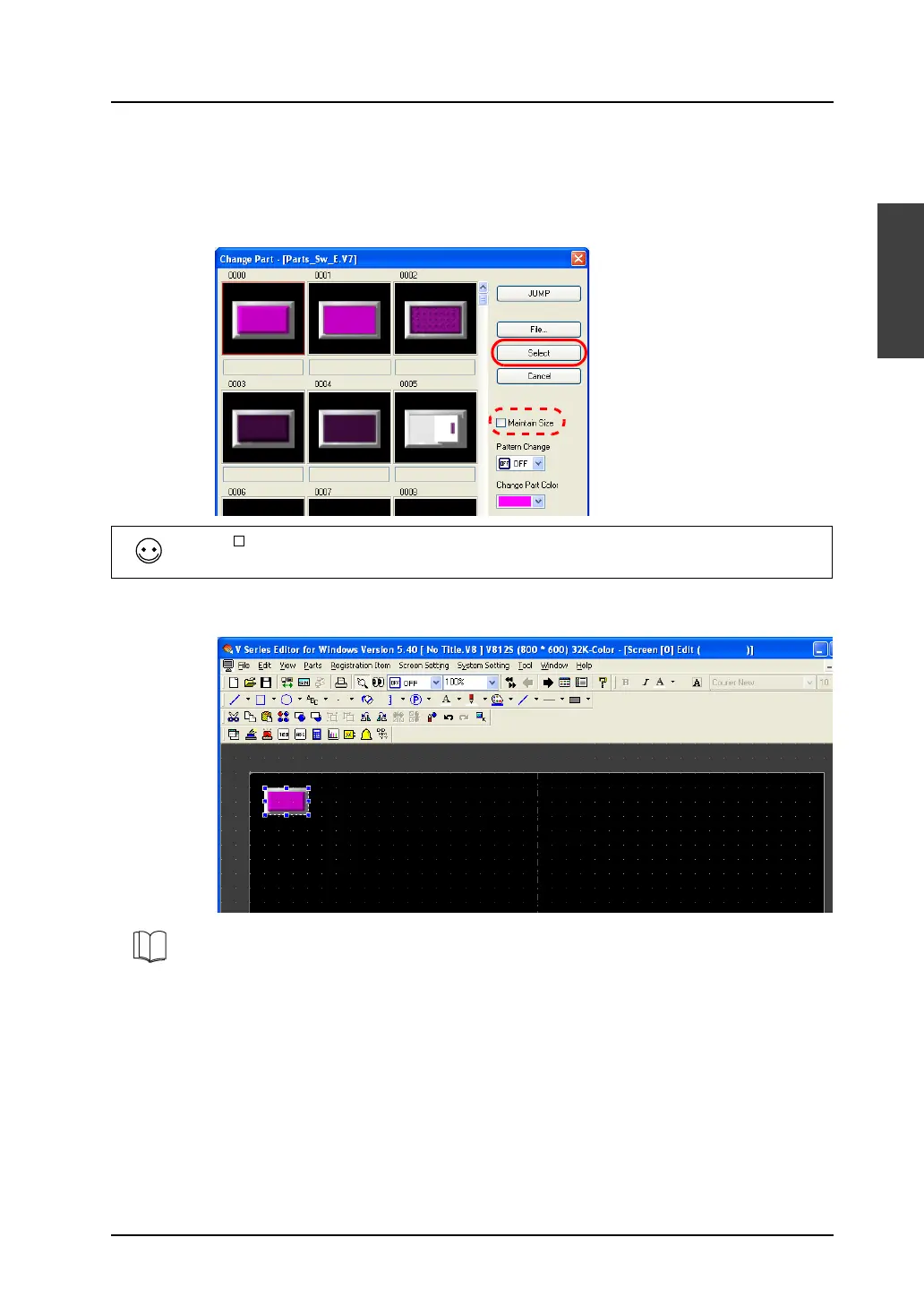

4. Select your desired part and click [Select].
5. The switch part on the screen is replaced with the part selected above.
With [ Maintain Size] checked, the size and setting of the existing switch remain the same even
after it is replaced with a newly selected part.
3D parts are provided with the flashing function that makes a switch or a lamp flash between different
patterns: ON pattern or pattern P3 to P128 and OFF pattern.
For more information on the setting, refer to “Flashing Function” page A2-8.
For more information on the features of parts, refer to the V8 Series Reference Manual.
