3.6 Parts
3-63
3
Screen Editing

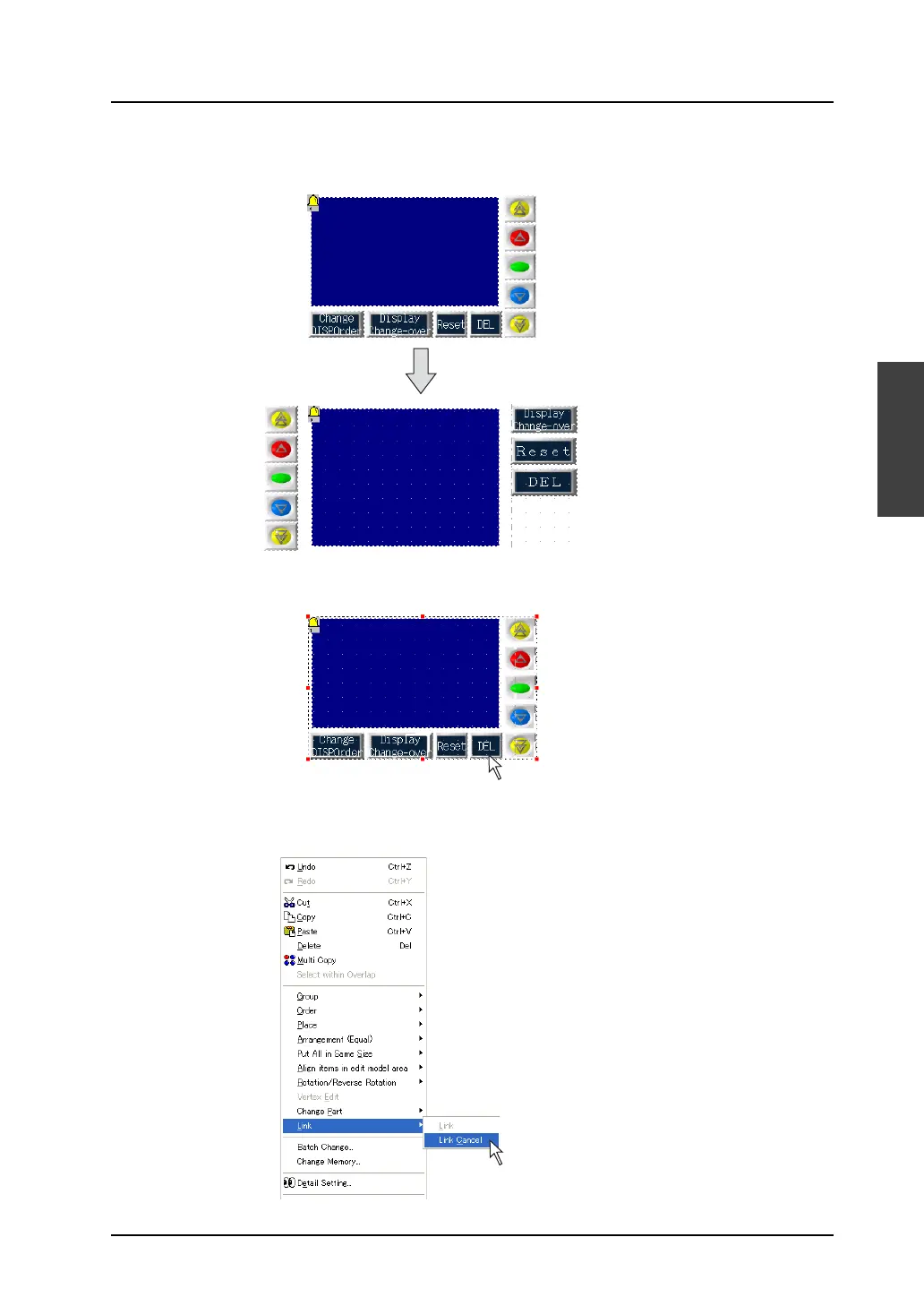

Example of modification (for alarm tracking)
This section provides the procedure to change the linked part as shown below.
1. Select the alarm tracking part placed on the screen. The parts is enclosed with the red handle.
2. Right-click the mouse and click [Link] → [Link Cancel] while the part is selected as in step 1.
The linked part is separated into individual pieces.
Click.
Right-click.
