3.7 Parts Placement and Setting

3-68

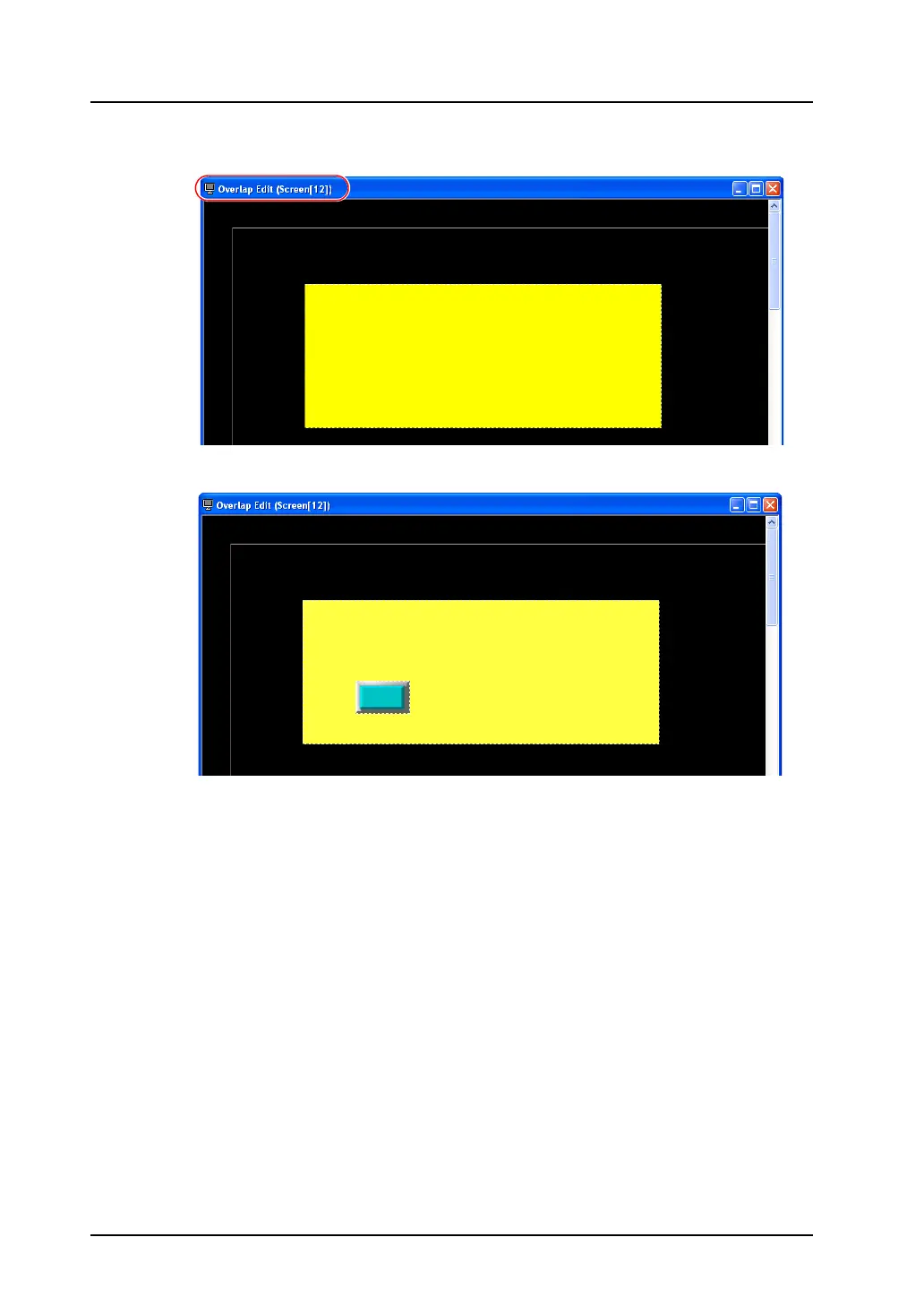

3. Now the [Screen Edit] window is switched to the [Overlap Edit] window.

4. Click the [Switch] icon and place it on the overlap display.
