5.6 Graphic Library
5-19
5
Registration

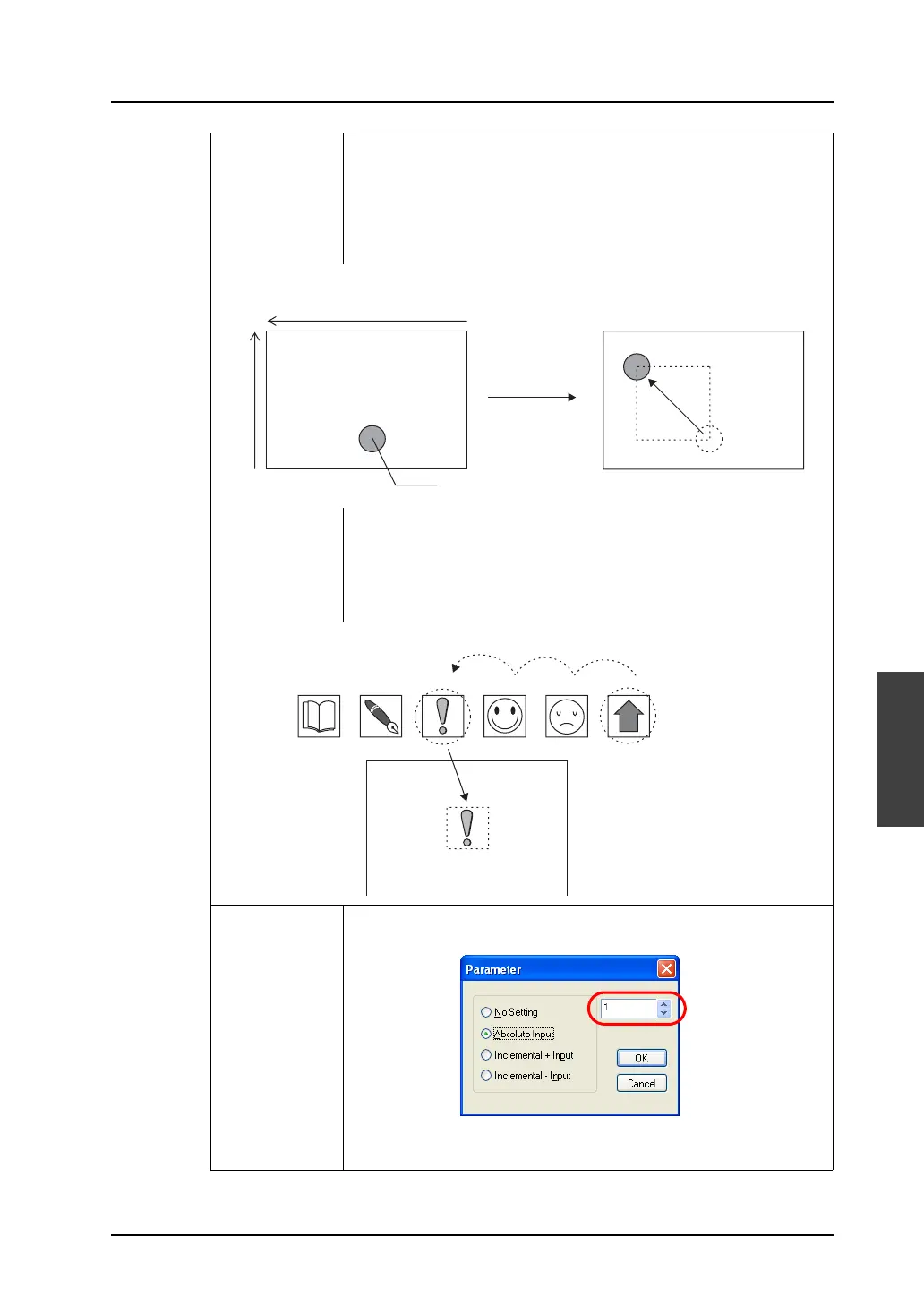

Incremental −
Input
Allows you to specify parameter values in incremental coordinates in the
minus direction.
Specifying coordinates:
Based on a placed graphic position regarded as (0, 0), specifying a
positive coordinate value in memory moves it in the minus direction and
specifying a negative coordinate value moves it in the plus direction.
Specifying a number:
(Valid for patterns and graphic call)
Based on a placed pattern or graphic number regarded as “0,” specifying
a positive value calls a pattern or a graphic of a smaller number, and
specifying a negative value calls a pattern or a graphic of a greater
number.
No. When using parameters, be sure to set a parameter number in the
[Parameter] dialog.
For more information on parameter numbers, refer to Chapter 11, “Graphic
Display” (page 11-10) in the Reference Manual.
200
200
When (200, 200) is specified in parameter
memory, the graphic is moved from the initial
position to the position below.
Initial position (0, 0)
− direction
− direction
No. 3 No. 4 No. 5 No. 6 No. 7 No. 8
+3
Pattern
When “3” is specified in the parameter
memory with pattern No. 8 placed on
the screen, pattern No. 5 is called.
Initial pattern
To Next Page
