Cleaning guide rollers
The guide rollers can be removed for cleaning
.

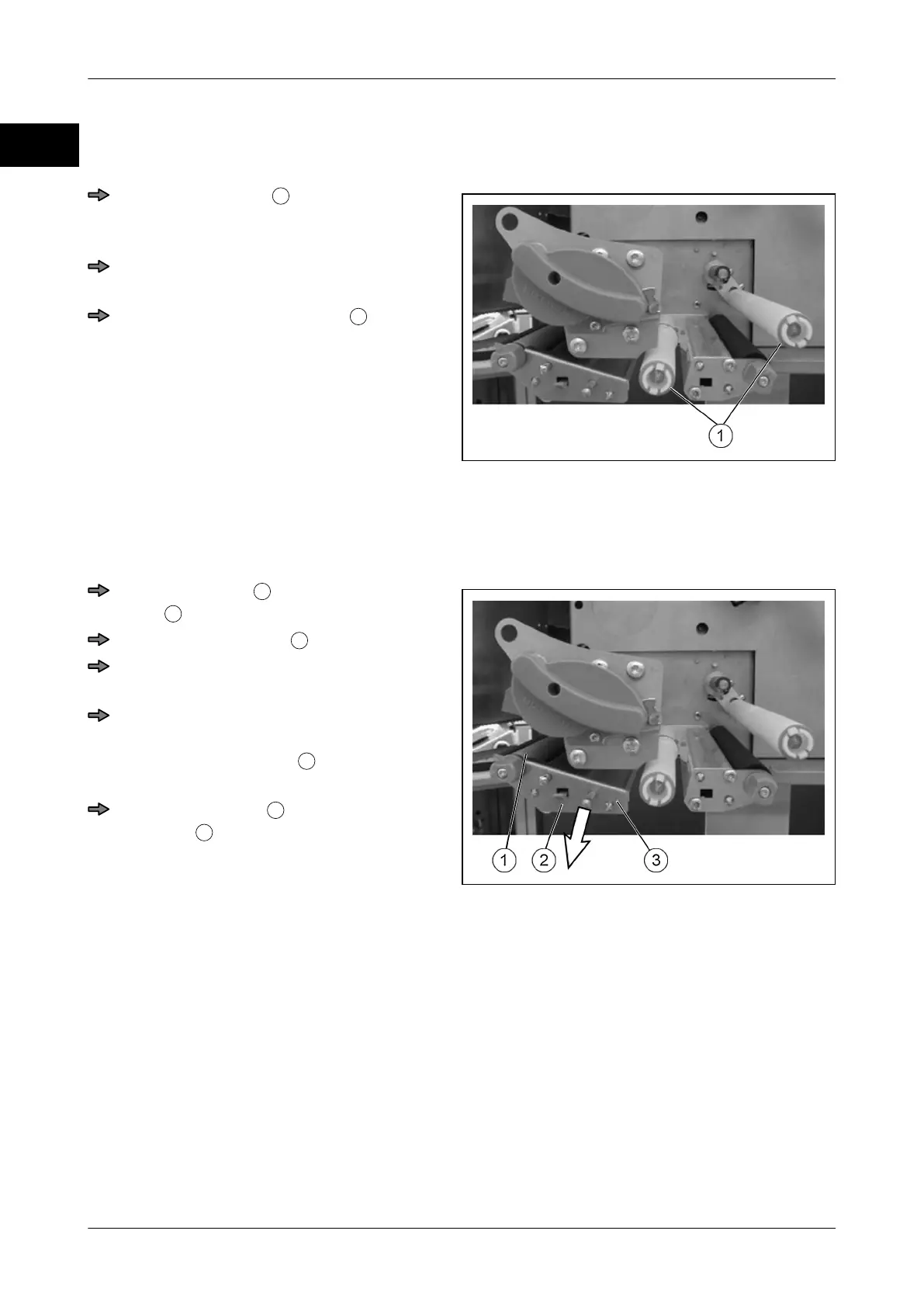

Illustration 69: Guide rollers
Grap guide rollers
1
at the front and
back and pull out with a strong force
(spring detent).
Pull the guide rollers out, clean with spi-
rit and wipe dry.
Reposition the guide rollers
1
, pushing
it until you hear it click into place
.
Cleaning printer roller
The printer roller can be removed for cleaning.
Illustration 70: Removing printer roller
Lift safety catch
2
and pull out guide
plate
3
with both hands.
Pull out printer roller
1
.
Clean the printer roller with spirits and
wipe dry.
Lubricate both shaft ends and insert into
the guide bearings in the main board
.
Turn the printer roller
1
until the shaft
engages in the take
-up unit.
Insert guide plate
3
until safety catch
engages
2
.
