Instruction manual GLM-I Accessories
38.019.129.001 en 421
31
31 Accessories
31.1 Package guidance
The device may be equipped with an adjustable package guidance (alignment rails). Un-
der certain circumstances
, packages of critical dimensions must be laterally guided during
transport to avoid toppling over. For this reason, optional package guidances can be
mounted onto the conveyor belts.
31.2 Manual package guidance
In case of different package sizes the alignment rails of the package guidance need to be
adjusted to the package sizes accordingly
. The distance between the alignment rails
should be slightly larger than the package width.
31.2.1 Centered package alignment
With the two-part conveyor belts usually a centered package alignment is used.

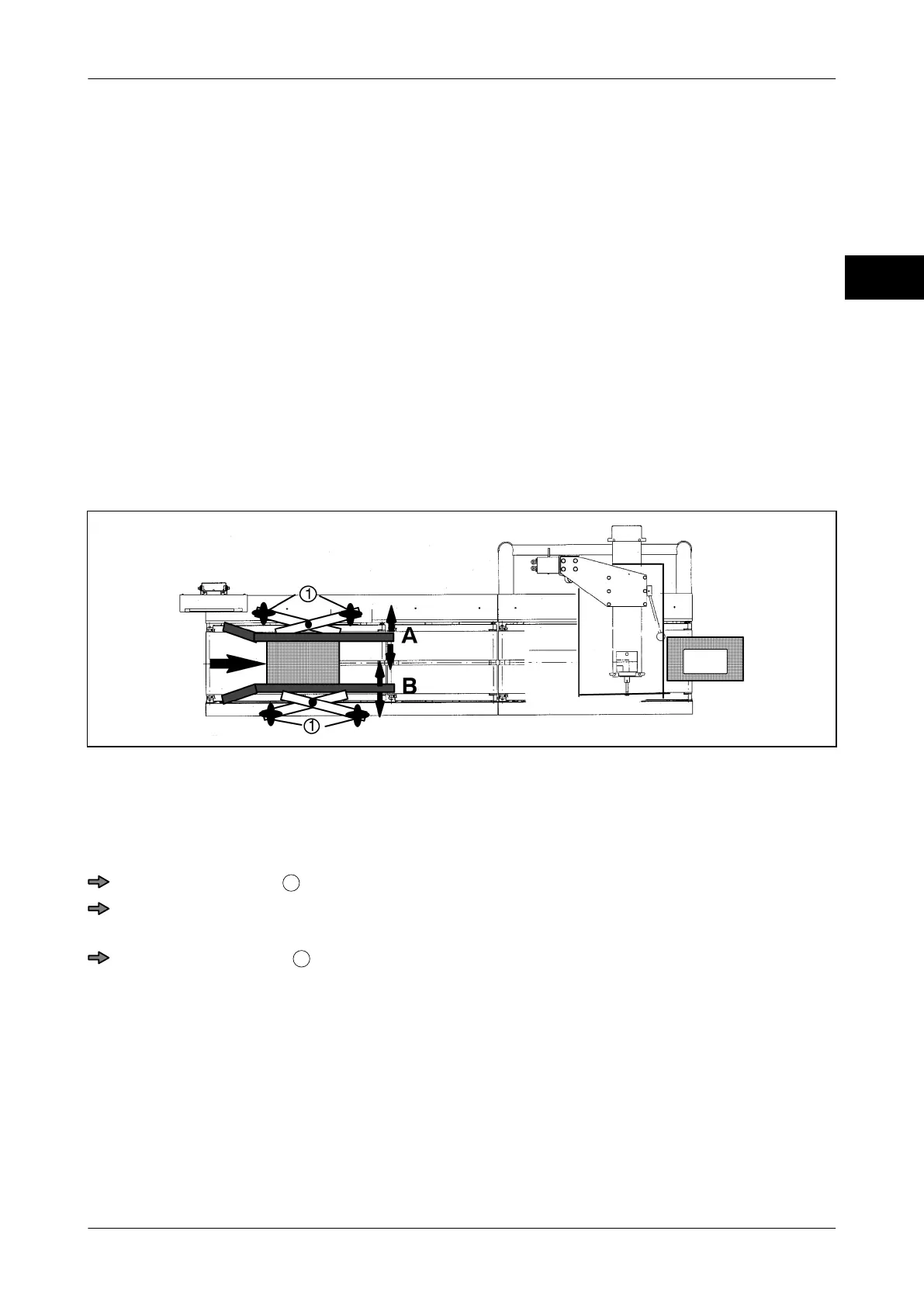

Illustration 78: Centered package guidance
When changing the package with the alignment rails A and B need to be moved by the
same value from the center.
Proceed as follows
:
Loosen star handle
.
Move the front and back alignment rail forward or back by the same distancee middle
axis.
Tighten star handles
.
