31.3.6 Guide rail adjustment
The motorized guide rails can be adjusted using a tilt lever. The front and rear guide rail
can be adjusted separately
.
The rear guide rail is adjusted using the tilt lever A, the front guide rail is adjusted using
the tilt lever B.

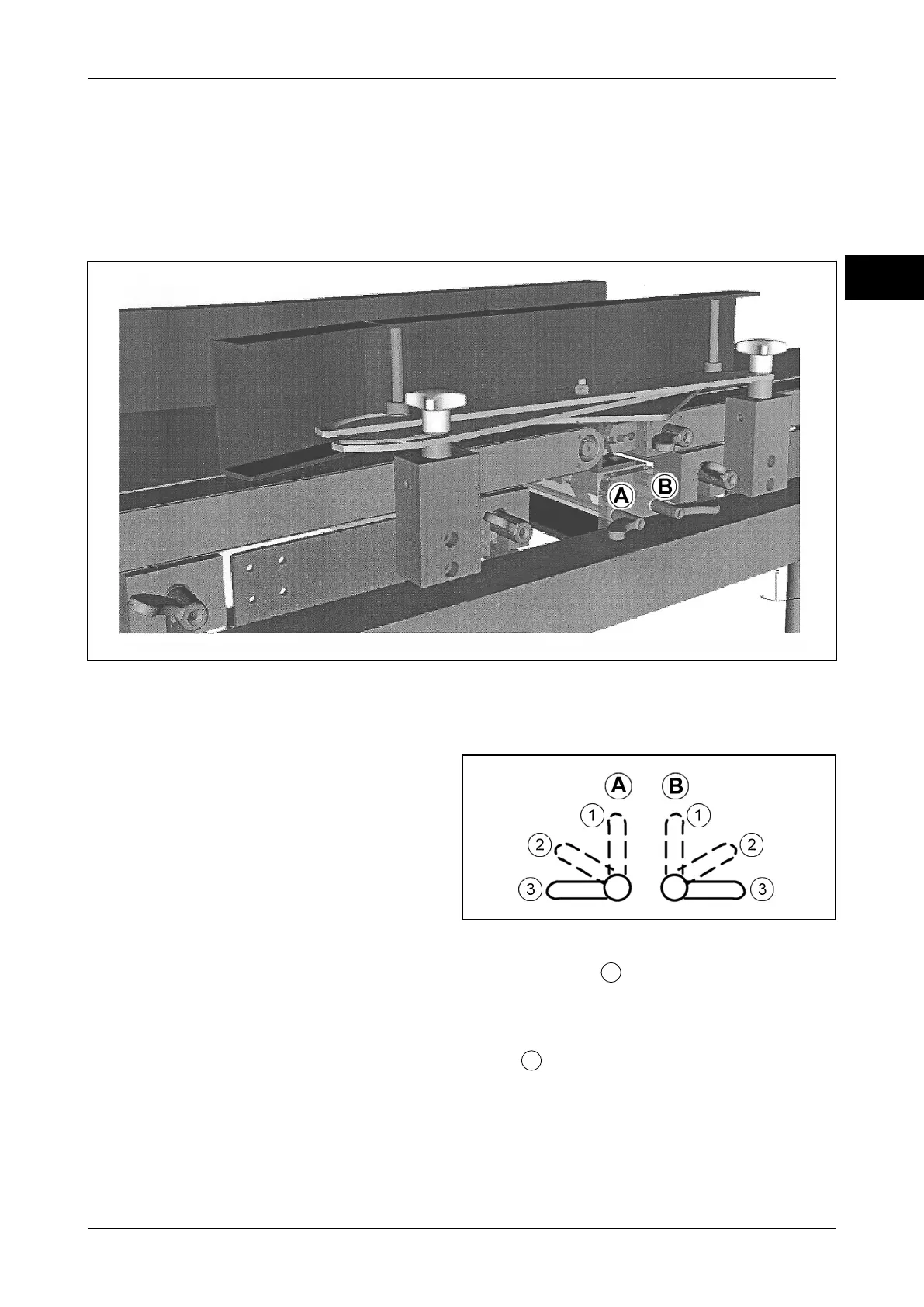

Illustration 80: Adjusting guide rails
Motorized guide rail adjustment by means of the tilt levers A and B can be defined as fol-
lows:
Illustration 81: Lever position
Motorized adjustment of the guide rail: Tilt lever in position
1
.
This position allows adjusting the respective guide rail either automatically according to
PLU data, manually via softkeys or according to the specified package width
.
Manual guide rail adjustment: Tilt lever in position
2
.
This position allows adjusting the respective guide rail by manually moving it to a position
that suits the package width.
