6.2 Cross-adjusting labeler
6.2.1 Manual cross- adjustment of the labeler
With the power-driven cross-adjustment the labeler can be adjusted as follows:
1. Pull rocking lever A down and hold in
position
2.
With your other hand, move the labeler
forward or back
3. After achieving the required cross posi-
tion release rocking lever A.

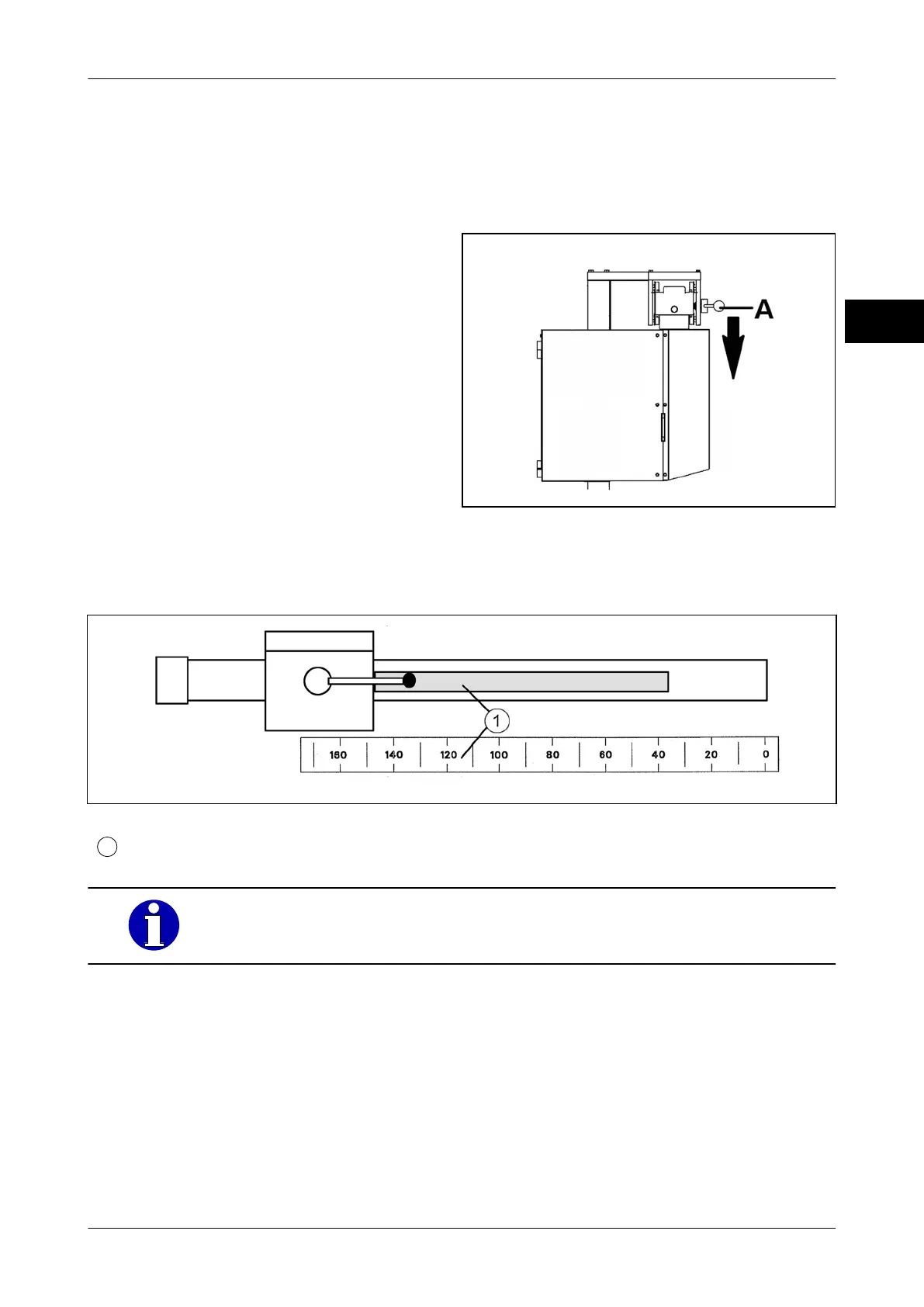

Illustration 7: Manual moving
The guiding arm of the labeler for cross adjustment includes a ruler with which the cross
adjustment of the labeler can be set accordingly
. Mark the basic setting (e.g. for tape cen-
ter) on the guide and move the relevant amounts forward or back in mm.
Illustration 8: Ruler
1
Ruler
A precise label positioning is only possible if the packages have been
aligned accordingly with the alignment rails
!
