Bizerba GLM-I - Cross-adjusting labeler

Instruction manual GLM-I Labeling systems
38.019.129.001 en 45
6
6 Labeling systems
6.1 Adjusting labeler to package height
To achieve a high position accuracy of the labels on the packages, the labeler must be ad-
justed in height for different package heights
. Depending on the device model this can be
done through a power-driven height adjustment or by moving it manually. The min. and
max. distance a from upper edge of package to lower edge of labeler depends on the re-
spective label size and sohould not be less than 10 mm and not more than 120 mm.
The following applies:
Small label: Distance 10 - 30 mm
Large label: Distance 30 - 120 mm

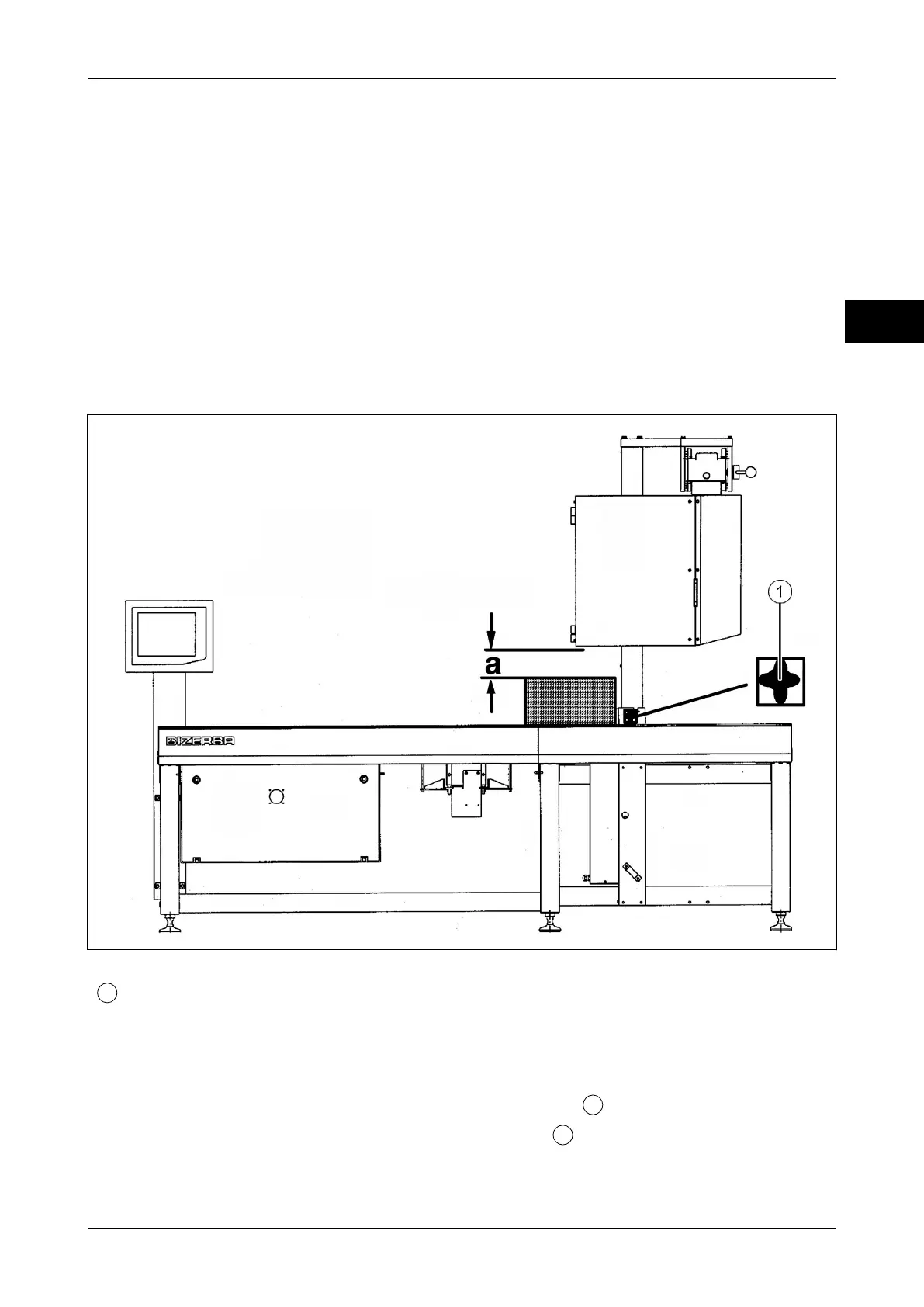

Illustration 5: Adjusting package height
1
Fastening screw
6.1.1 Manual adjustment of the labeler height
The labeler can be adjusted as follows:
–
Hold the labeler and carefully loosen the locking screw
1
.
–
Move labeler in height and re-tighten locking screw
1
.
