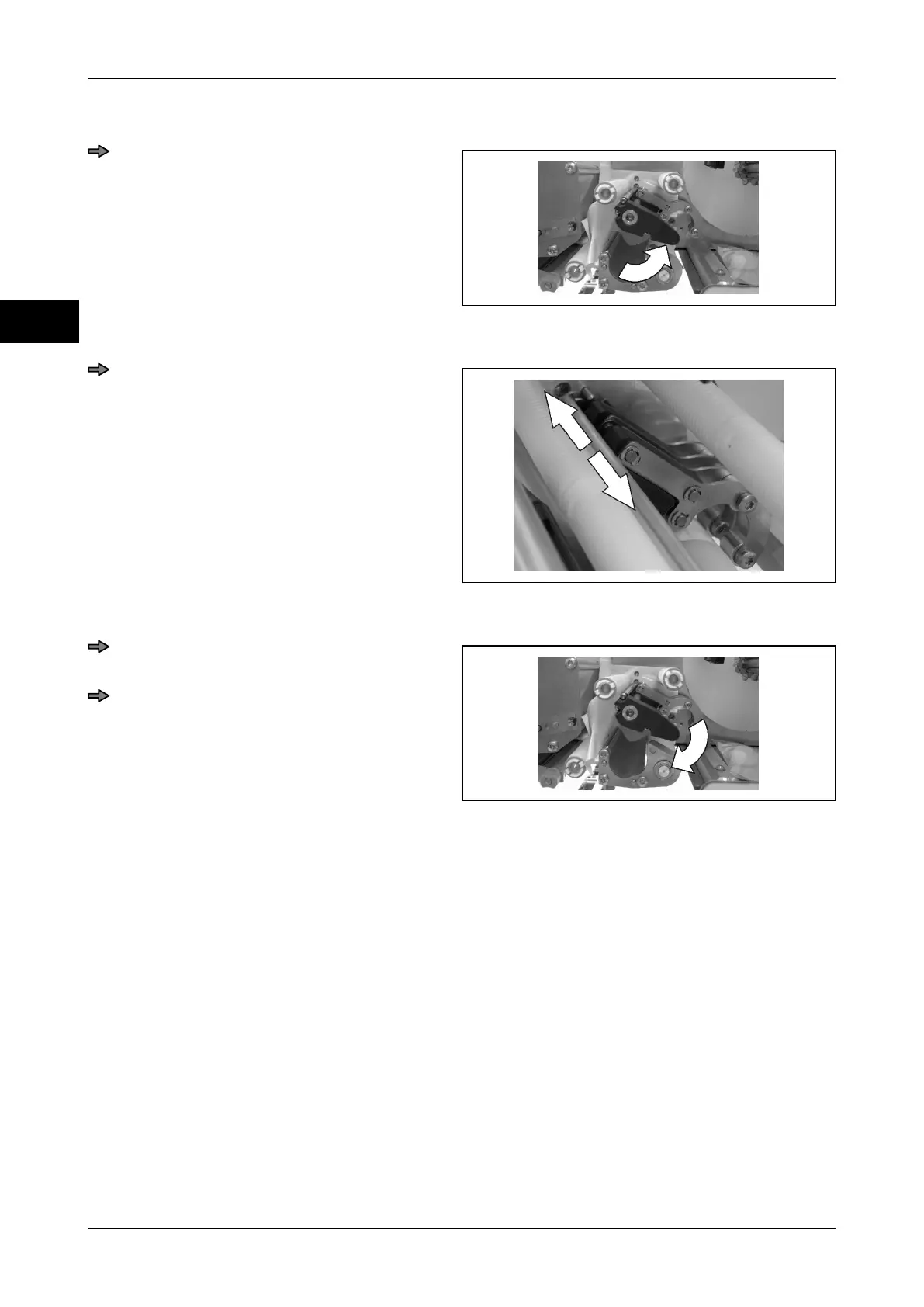

Open pressure rollers in front of the take-up pin.
Illustration 15: Open
Pull out pivot lever and turn it counter-
clockwise.
The pressure rollers are lifted from the
stripping roller
.
Adjust width
Illustration 16: Adjust width
Adjust pressure rollers to width of back-
ing paper. If this is not possible when
using small labels
, the right pressure
roller should be set to the center of the
backing paper.
Close pressure rollers in front of the take-up pin.
Illustration 17: Close
Turn pivot lever clockwise until the catch
engages.
Close side door.
6.6 Labeling from bottom with air jet or stamp labeler
When labeling from the bottom a precise infeed of the packages is necessary, e. g.
through alignment rails
. For different label sizes, the belts of the labeling belt can be adjus-
ted independently. In this manner the label can be applied to the package at any position.
