Pivot pressure roller away.

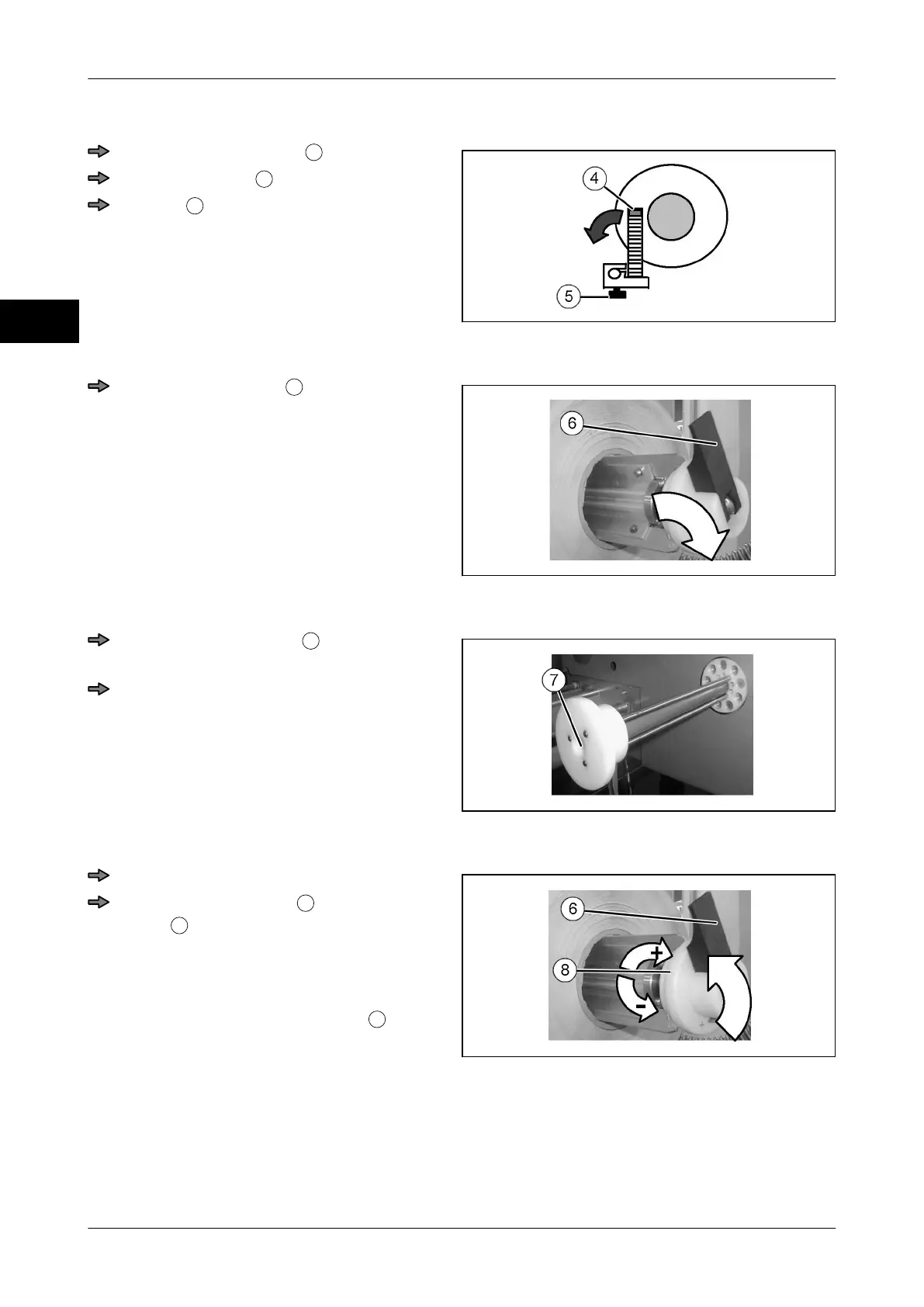

Illustration 30: Pressure roller
Loosen knurled screw
5
.
Turn swivel arm
4
to the left.
Tighten
5
knurled screw.
Remove label roll
Illustration 31: Take-up device for label rolls
Fold clamping lever
6
forward.
The label roll can now be pulled off the
take-up device.
Remove bearing roll
Illustration 32: Take-up arbor
Pull out take-up arbor
7
together with
bearing roll
.
Pull the take-up arbor out of the bearing
roll.
Insert new label roll
Illustration 33: Roll take-up
Pull label roll over roll take-up.
Close clamping lever
6
at label roll cen-
tering
8
by pushing it up.
If the core of the roll is smaller or bigger
than the take-up arbor, the outer diame-
ter of the roll take-up can be reduced by
turning the label roll centering
8
to the
left - or increased by turning it to the
right +.
