MAX32665-MAX32668 User Guide

Maxim Integrated Page 273 of 457

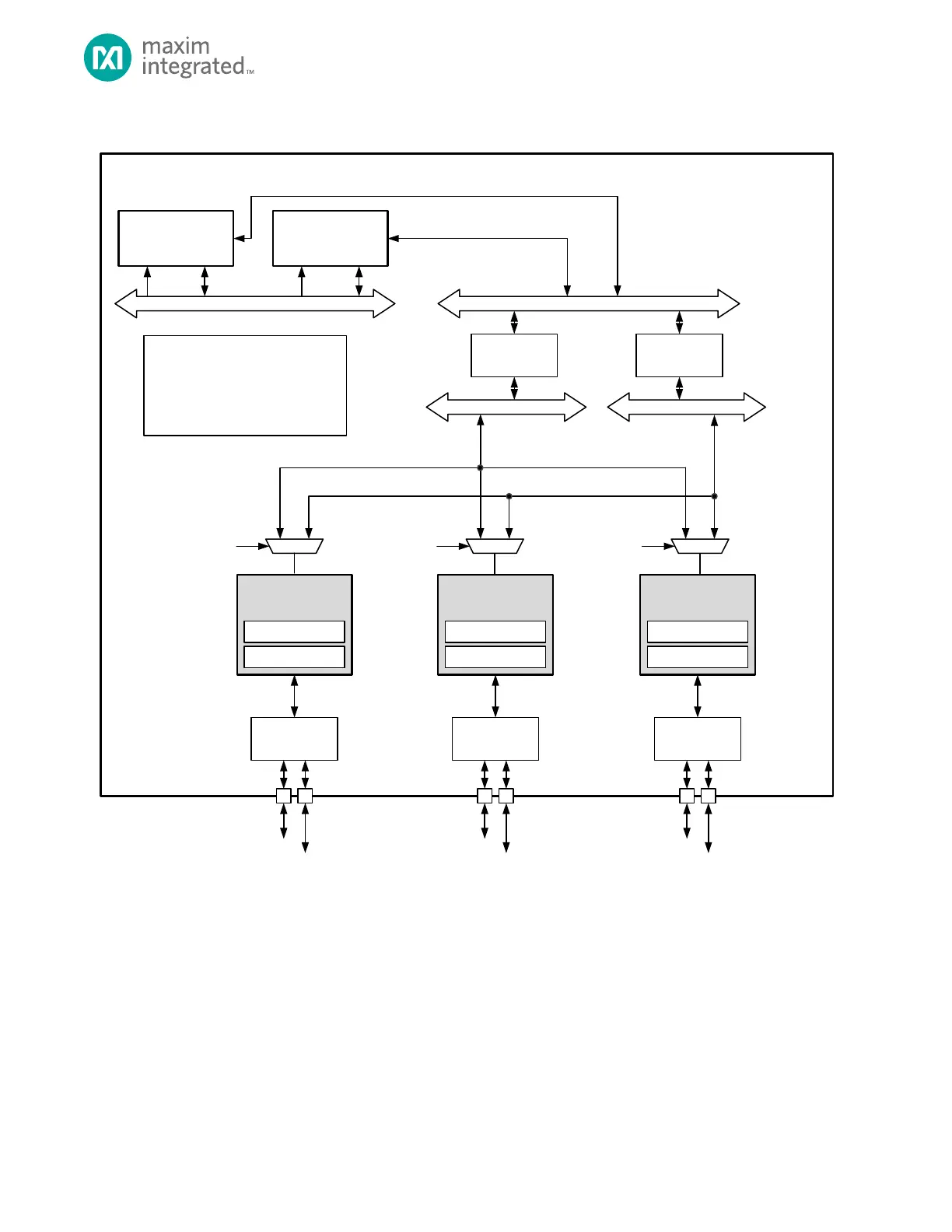

Figure 13-1: I

C Block Diagram

I D

GCR_APB_ASYNC.

apbasyncI2C0

ARM

Cortex

-M4

CPU1

AHB

I2C0

MASTER/SLAVE

I2C2

MASTER/SLAVE

SYSTEM BUS (AHB)

I/O

RX FIFORX FIFO

ARM

Cortex

-M4

CPU0

I D

I2C1

MASTER/SLAVE

RX FIFO

AHB2APB

SYNC ÷ 2

APB 0 APB 1

AHB2APB

ASYNC ÷ 1

TX FIFO TX FIFOTX FIFO

BUS 0

BUS 1

PCLK =

SYS_CLK

÷ 2

7MCLK

I/O I/O

I2C0_SCL

I2C0_SDA

I2C1_SCL

I2C1_SDA

I2C2_SCL

I2C2_SDA

BUS 0

BUS 1

I2C0 0x4001_D000 0x4011_D000

I2C1 0x4001_E000 0x40 11_E000

I2C2 0x4001_F000 0x4011_F000

I2Cn BUS 0 BUS 1

BASE ADDRESSES

GCR_APB_ASYNC.

apbasyncI2C2

BUS 0

BUS 1

GCR_APB_ASYNC.

apbasyncI2C1

BUS 0

BUS 1

I2c_CLK

= 7.3728MHz

I2c_CLK

= f

PCLK
