16.10 Gated Mode (110b)

Gated mode is similar to continuous mode, except that TMRn_CNT only increments when the timer pin is in its active state.

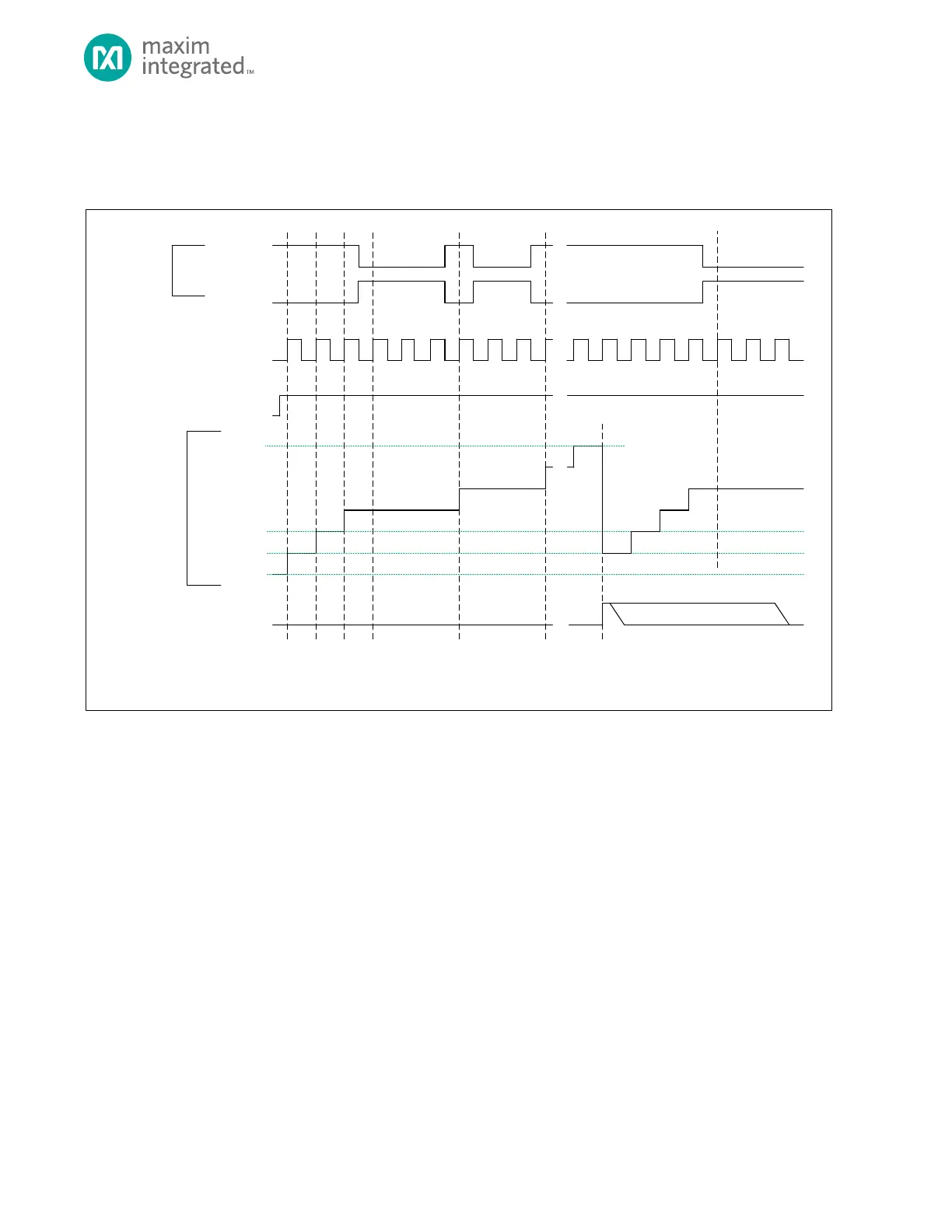

Figure 16-6: Gated Mode Diagram

TMR_CN.TEN

TMR_CNT

0X0000_0000**

0X0000_0001*

TMR_INT.IRQ



TIMER CLOCK

TMR_CMP

* TMR_CNT AUTOM ATICALLY RELOADS WITH 0X0000_0001 AT THE END OF THE TIMER PERIOD, BUT SOFTWARE CAN WRITE ANY INITIAL VALUE TO TMR_CNT

BEFORE THE TIMER IS ENABLED.

** THE DEFAULT VALUE OF TMR_CNT FOR THE FIRST PE RIOD AFTER A SYSTEM RESET IS 0X0000_0000 UNLESS CHANGED BY SOFTWARE.

TMR_CN.TPL = 1

TMR_CN.TPL = 0

TIMER PIN

(INPUT)

0X0000_0002

SOFTWARE CLEARS BIT



Default Chapter2
