MAX32665-MAX32668 User Guide

Maxim Integrated Page 375 of 457

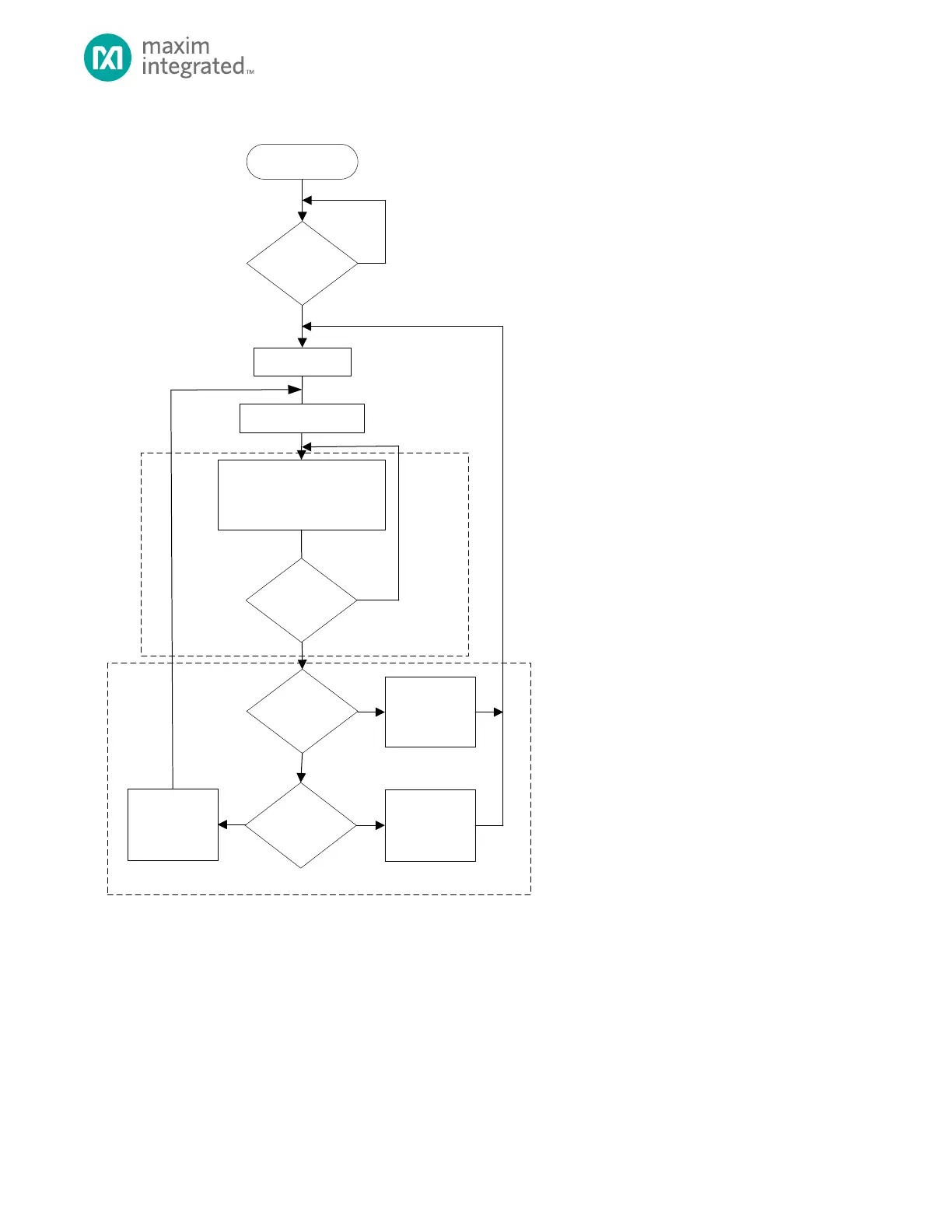

Figure 18-4. Internal Implementation of Digital Trim, 4kHz

RTC_CTRL.enable = 1

TRIM_COUNT

< 1,000,000?

INCREMENT

RTS_SSEC TWICE

TRIM_COUNT

>2,000,000?

DO NOT

INCREMENT

TRIM_COUNT = TRIM_COUNT +

RTC_TRIM

LOOP_COUNT = LOOP_COUNT +1

(INCREMENTS 4kHz)

TRIM_COUNT =

1,000,000

RTC_TRIM = 0?

(TRIM FUNCTION

DISABLED)

INCREMENT

RTS_SSEC

LOOP_COUNT =

16?

LOOP_COUNT = 0

[256Hz DOMAIN]

[4kHz DOMAIN]
