Appendix A CTC Information and Shortcuts
A.2 Manage the CTC Window
A.2 Manage the CTC Window
Different navigational methods are available within the CTC window to access views and perform
management actions. You can double-click and right-click objects in the graphic area and move the
mouse over nodes, cards, and ports to view popup status information.
A.2.1 CTC Menu and Toolbar Options
The CTC window menu bar and toolbar provide primary CTC functions. Table A-3 shows the actions
that are available from the CTC menu and toolbar.
Terminal (west) A terminal (west) node is represented as a three-dimensional
cylinder with one amplifier on the west side of the icon.
• A terminal node contains one 32DMX or 32DMX-O and
one 32-MUX-O. No OADM cards are provisioned.
• A flexible terminal node contains a series of OADM and
amplifier cards.
Terminal (east) A terminal (east) node is represented as a three-dimensional
square with one amplifier on the east side of the icon.
• A terminal node contains one 32DMX or 32DMX-O and
one 32MUX-O. No OADM cards are provisioned.
• A flexible terminal node contains a series of OADM and
amplifier cards.
Line
OSC regeneration line
Line and OSC regeneration line nodes are represented as a
three-dimensional cylinder with one arrow pointing west and
another arrow pointing east.
• A line node has only Optical Preamplifier (OPT-PRE) or
OPT-BST amplifiers provisioned.
• An optical service channel (OSC) regeneration line node
contains two OSC-CSM cards.
Unknown An unknown DWDM node icon is represented as a
three-dimensional cylinder with one arrow pointing north. An
unknown node means that the provisioned cards do not allow
the node to fit any of the defined DWDM node categories.

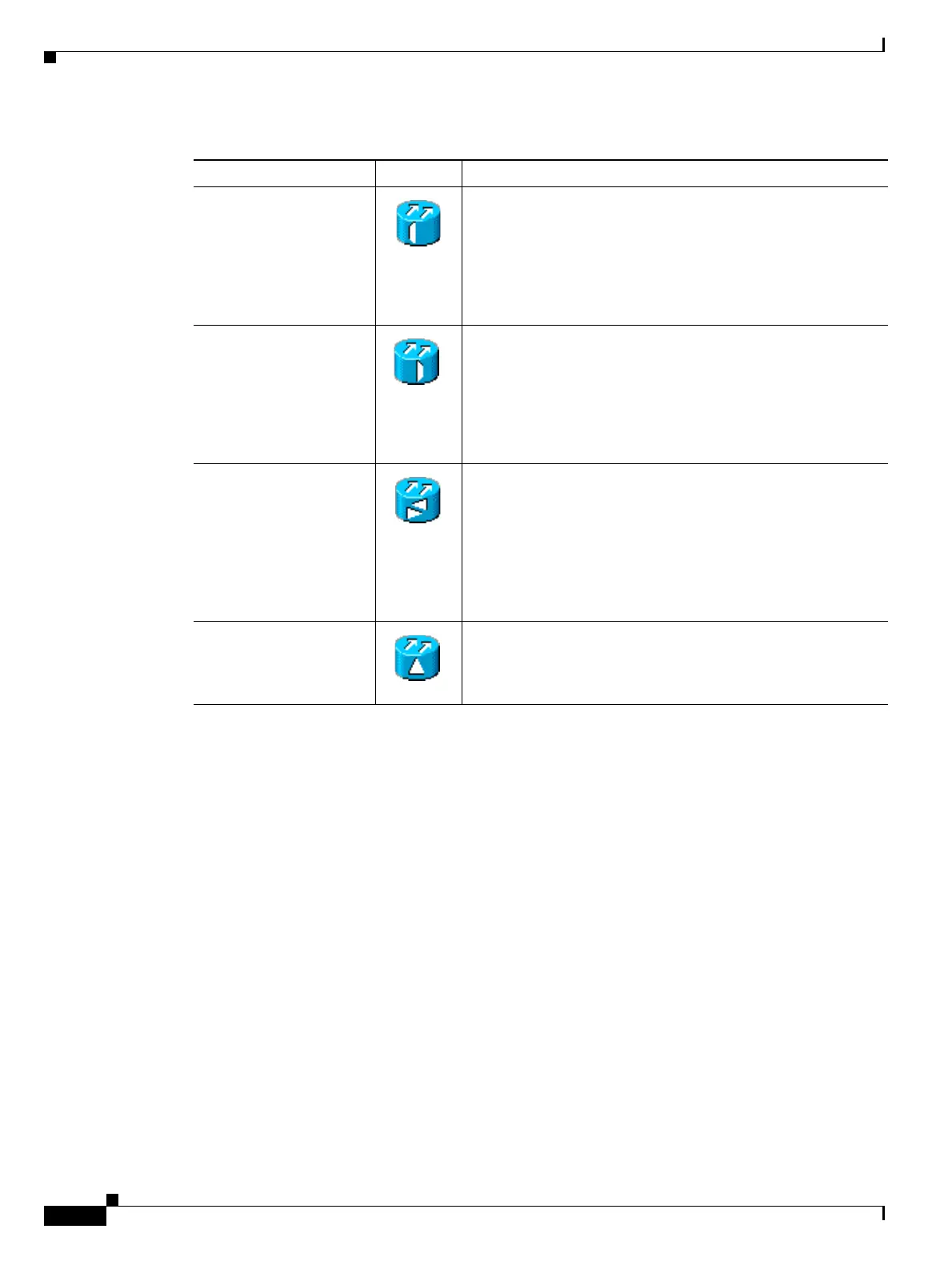

Table A-2 Description of Node Icons on Network View Map (continued)
Node Name Icon Description
