Cisco ONS 15454 DWDM - DLP- G24 Install Timing Wires on the Backplane (ANSI Only)

1-55
Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0
August 2005
Chapter 1 Install the Shelf and Common Control Cards
DLP-G24 Install Timing Wires on the Backplane (ANSI Only)

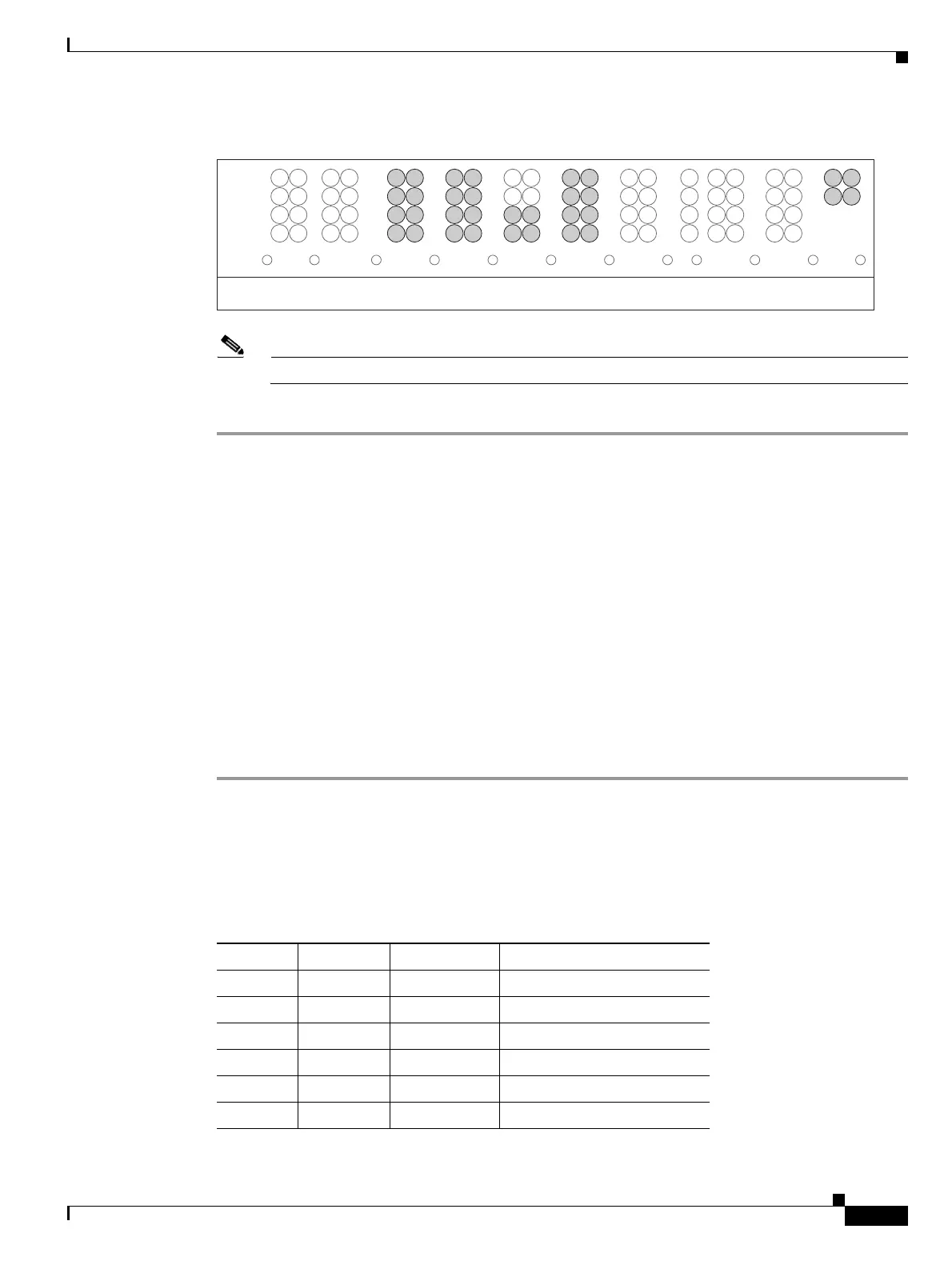

Figure 1-22 Highlighted Environmental Alarms
Note The X.25, Modem, and TBOS pin fields are not active on either pin field.
Step 2 Return to your originating procedure (NTP).
DLP-G24 Install Timing Wires on the Backplane (ANSI Only)
Step 1 Using 100-ohm shielded BITS clock cable #22 or #24 AWG (0.51 mm² or 0.64 mm²), twisted-pair
T1-type, wrap the clock wires on the appropriate wire-wrap pins according to local site practice.
Ground the shield of the BITS input cable at the BITS end. For BITS output, wrap the ground shield of
the BITS cable to the frame ground pin (FG1) located beneath the column of BITS pins. Table 1-6 lists
the pin assignments for the BITS timing pin fields.
1
2
3
4
A
FG4FG3FG2FG1
BITS LAN
1
2
3
4
AB
1
2
3
4
AB
IN
1
2
3
4
AB
IN/OUT
FG6FG5
7
8
95
106
ABAB
ENVIRONMENTAL ALARMS
IN
ACO
FG7
1
2
3
4
IN
AB
FG8
1
2
3
4
AB
MODEM
FG9
1
2
3
4
A
CRAFT
AUDVIS
FG10
1
2
3
4
AB
LOCAL ALARMS
IN
FG12FG11
11
12
AB B
83020
Purpose This task installs the BITS timing wires on the ONS 15454 ANSI
backplane.
Tools/Equipment Wire wrapper
100-ohm shielded BITS clock cable pair #22 or #24 AWG (0.51 mm² or
0.64 mm²), twisted-pair T1-type
Prerequisite Procedures NTP-G5 Remove the Backplane Covers (ANSI Only), page 1-26
Required/As Needed As needed
Onsite/Remote Onsite
Security Level None
Table 1-6 External Timing Pin Assignments for BITS
BITS Pin Tip/Ring CTC/TL1 Name Function
A4 ring BITS-1 Input from BITS device 1
B4 tip BITS-1 Input from BITS device 1
A3 ring BITS-1 Output to external device 1
B3 tip BITS-1 Output to external device 1
A2 ring BITS-2 Input from BITS device 2
B2 tip BITS-2 Input from BITS device 2
