Chapter 9 Monitor Performance
DLP-G139 View Optical Service Channel PM Parameters

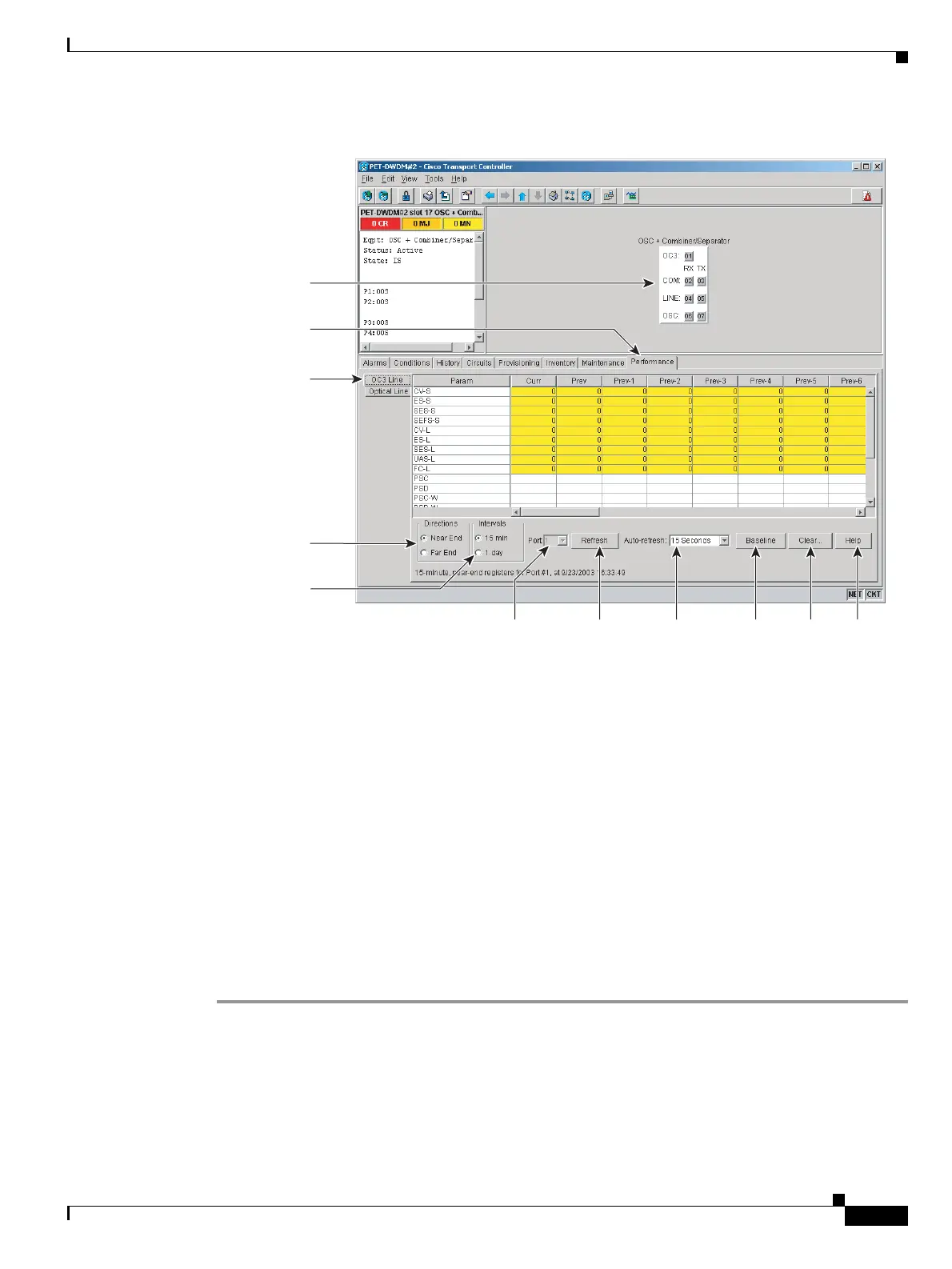

Figure 9-1 OC3 Line Tab in the Optical Service Channel Card View Performance Window
Step 3
Click Refresh. PMs appear for the OC3 (Port 1).
Step 4 Click the Optical Line tab.
Step 5 In the Port drop-down list, choose the optical line port where you want to view the power statistics:
• 2—COM RX
• 3—COM TX
• 4—LINE RX (available only on the OSC-CSM card)
• 5—LINE TX (available only on the OSC-CSM card)
• 6—OSC RX (available only on the OSC-CSM card)
• 7—OSC TX (available only on the OSC-CSM card)
Step 6 Click Refresh. The minimum, maximum, and average optical power statistics for the selected line port
appear.
Step 7 Return to your originating procedure (NTP).
