Cisco ONS 15454 DWDM - Line Amplifier Node

17-12
Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0
August 2005
Chapter 17 Node Reference
17.1.7 OSC Regeneration Node

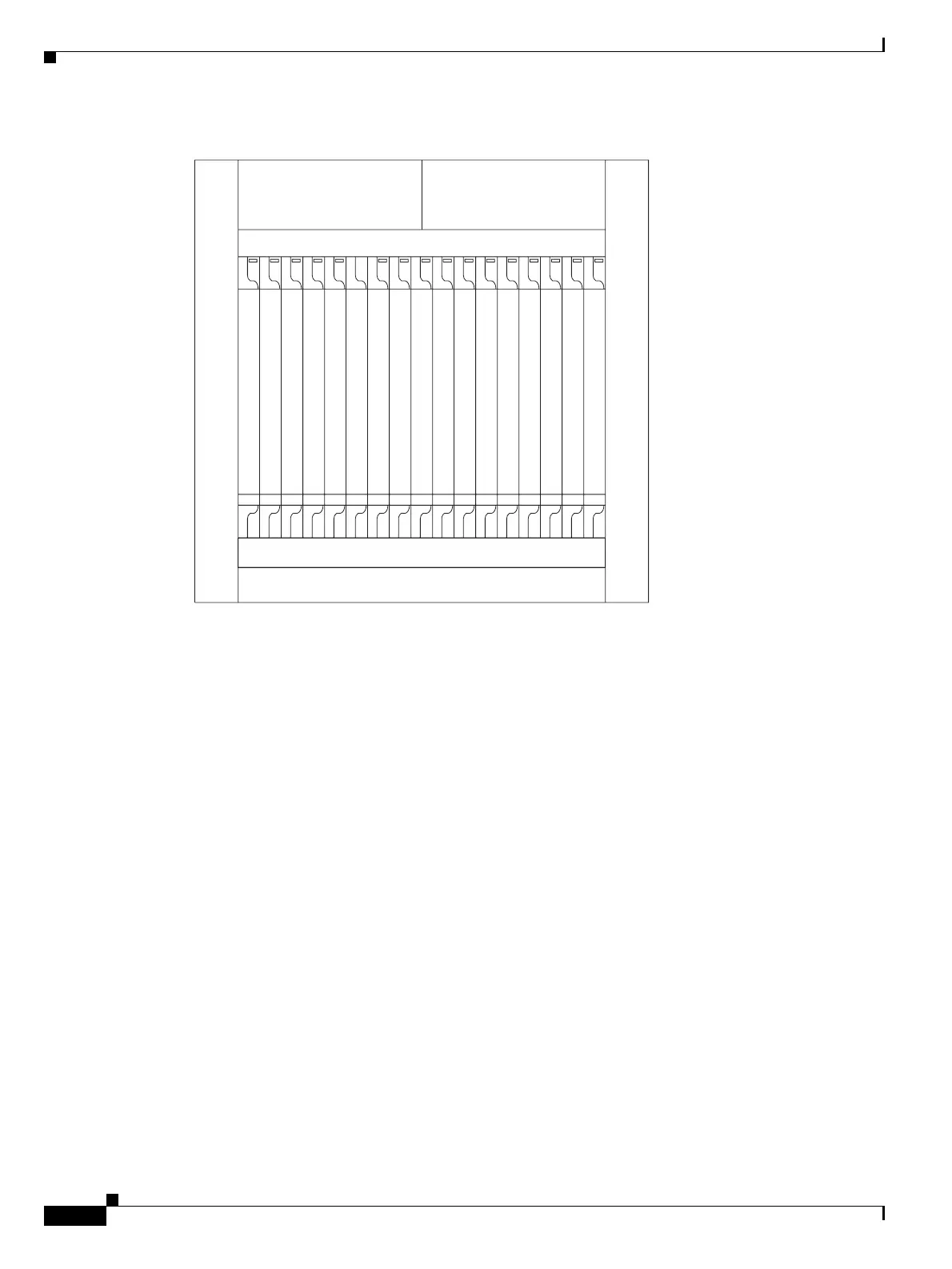

Figure 17-12 Line Amplifier Node Configuration Example
17.1.7 OSC Regeneration Node
The OSC regeneration node is added to the DWDM networks for two purposes:
• To electrically regenerate the OSC channel whenever the span links are 37 dB or longer and payload
amplification and add/drop capabilities are not present. Cisco MetroPlanner places an OSC
regeneration node in spans longer than 37 dB. 31 dB is the longest span between the OSC
regeneration node and the next DWDM network site.
• To add data communications network (DCN) capability wherever needed within the network.
OSC regeneration nodes require two OSC-CSM cards, as shown in Figure 17-13.
OPT-BST
OPT-PRE
Available
DCU
Air ramp
DCU
Available
Available
Available
TCC2/TCC2P
OSCM
OSCM
TCC2/TCC2P
Available
Available
Available
OPT-PRE
OPT-BST
Available
AIC-I
96425
