9-23
Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0
September 2005
Chapter 9 Monitor Performance
DLP-G147 View Payload PM Parameters

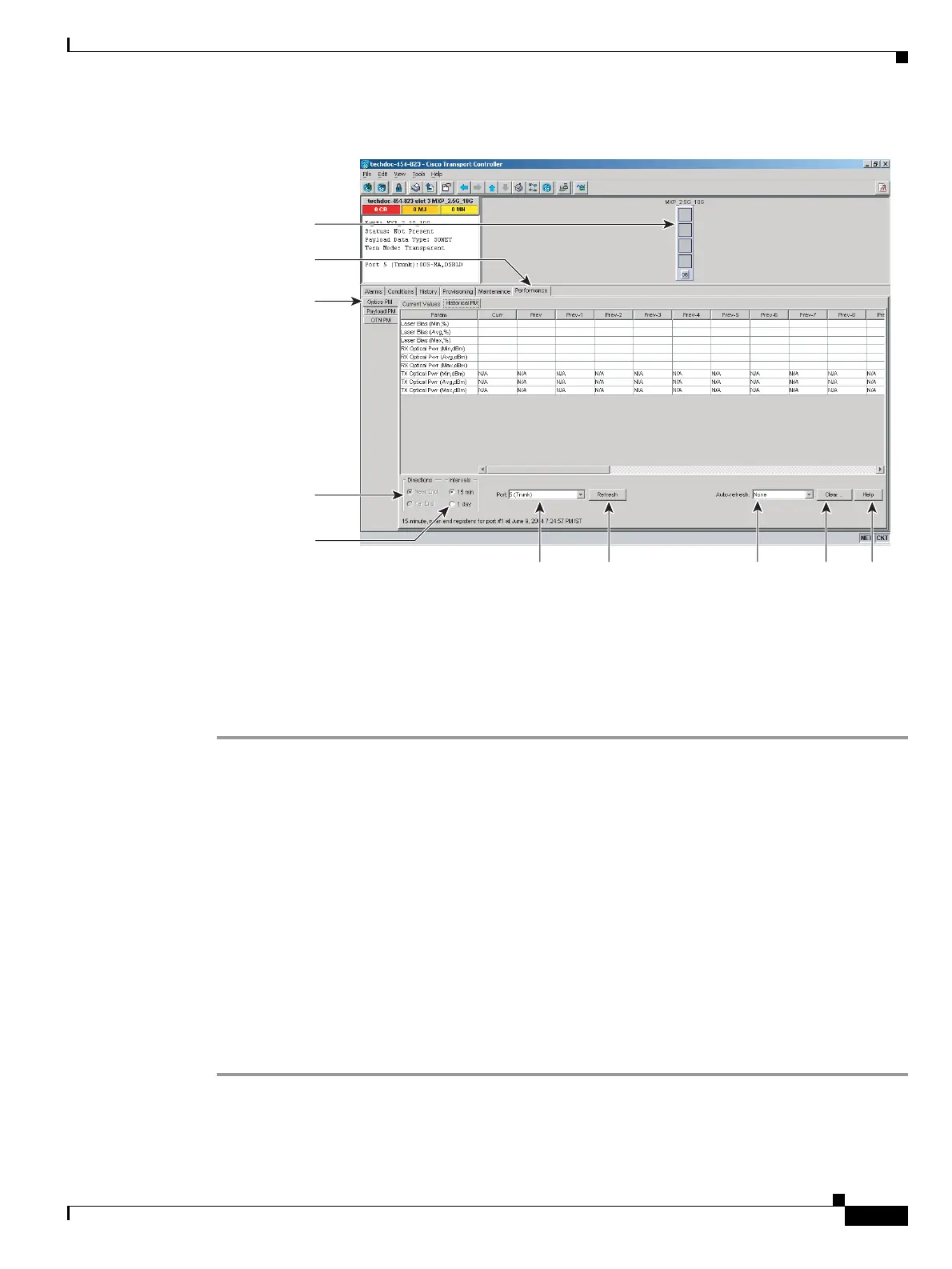

Figure 9-6 Viewing Optics Performance Monitoring Information
Step 3
View the PM parameter names that appear in the Param column of the Current Values and History PM
tabs. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM
parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454
Troubleshooting Guide or the Cisco ONS 15454 SDH Troubleshooting Guide.
Step 4 Return to your originating procedure (NTP).
DLP-G147 View Payload PM Parameters
Step 1 In node view, double-click the transponder or muxponder card where you want to view PM counts. The
card view appears.
Step 2 Click the Performance > Payload PM tabs (Figure 9-7).
Purpose This task enables you to view the payload PM counts on a transponder
(TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G, TXP_MR_10E),
or muxponder (MXP_2.5G_10E, MXP_2.5G_10G) card and port to
detect possible performance problems.
Tools/Equipment None
Prerequisite Procedures DLP-G46 Log into CTC, page 2-25
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
115765
Directions
radio buttons
Performance
tab
Optics PM tab
Card View
Intervals
radio buttons
Help
button
Clear
button
Signal-type
port menu
Auto-refresh
menu
Refresh
button
