Chapter 9 Monitor Performance
DLP-G142 View Channel Optical Add/Drop Multiplexer Power Statistics

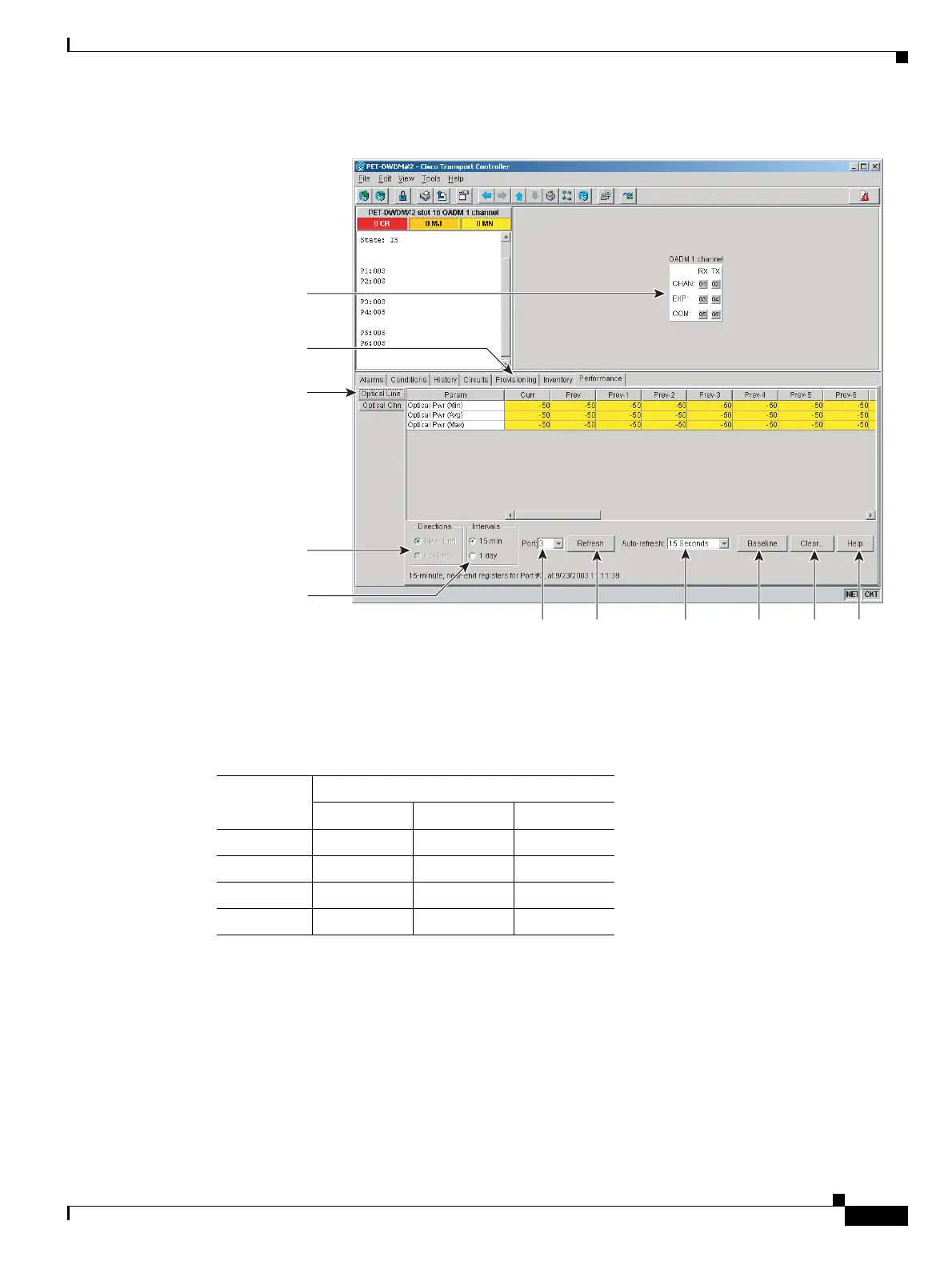

Figure 9-5 Optical Line Tab in the Channel Filter OADM Card View Performance Window
Step 3
In the Port drop-down list, choose an optical line port (Table 9 -1 ) where you want to view the optical
power statistics.
Step 4 Click Refresh. Optical line power statistics for the selected port appear.
Step 5 Click the Optical Chn tab.
Step 6 In the Port drop-down list, choose an optical channel port (Ta bl e 9-1 ) where you want to view the optical
power statistics.
Table 9-1 Channel OADM Optical Line Ports
Port Name
Port Number
AD-1C-xx.x AD-2C-xx.x AD-4C-xx.x
EXP RX359
EXP TX 4 6 10
COM RX5711
COM TX6812
96973
Directions
radio buttons
Performance
tab
Optical Line
tab
Card View
Intervals
radio buttons
Help
button
Clear
button
Baseline
button
Auto-refresh
menu
Refresh
button
Signal-type
port menu
