Chapter 6 Turn Up Network
NTP-G142 Perform a Protection Switch Test

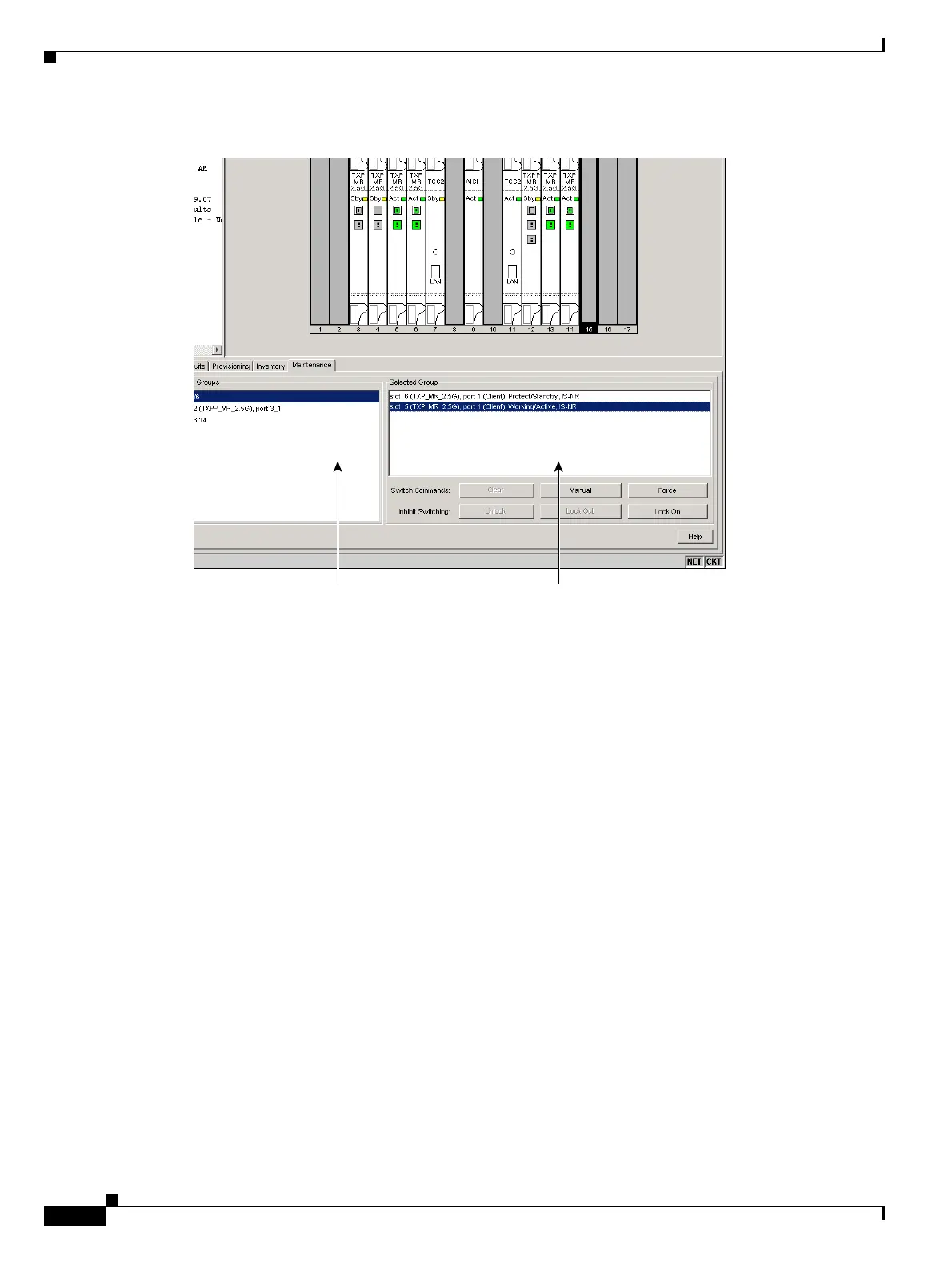

Figure 6-1 Maintenance > Protection Tabs
Step 11 In the Protection Groups area, highlight the protection group to be tested.
Step 12 In the Selected Group area, identify the slot that is Active and the slot that is Standby.
Step 13 Verify that the LED display on the physical cards in the shelf match the following:
a. For the Active TXP card, record the slot number: _____. Verify the port LEDs are as follows:
–
DWDM port is green.
–
Client port is green.
b. For the Standby TXP card, record the slot number:_____. Verify port LEDs are as follows:
–
DWDM Port is green.
–
Client Port is not illuminated.
Step 14 In the Selected Group area, highlight the Active transponder slot.
Step 15 From the Switch Commands area below the Selected Group area, click Manual, then click YES.
Step 16 From the Selected Group area, record the following information and verify the active and standby
transponder slots are the opposite of Step 13.
• Active TXP card slot number: _____
• Standby TXP card slot number: _____
Step 17 Verify that the LED displays on the physical cards in the shelf match the following:
a. For the Active transponder slot LEDs:
–
DWDM port is green.
–
Client port is green.
134960
Protection Group area Selected Group area
