18.5 ROADM Power Equalization Monitoring
18.5 ROADM Power Equalization Monitoring
Reconfigurable OADM (ROADM) nodes allow you to monitor the 32WSS card equalization functions
on the Maintenance > DWDM > Power Monitoring subtab (Figure 18-9). The tab shows the input
channel power (Padd), the express or pass-through (Ppt) power and the power level at output (Pout).

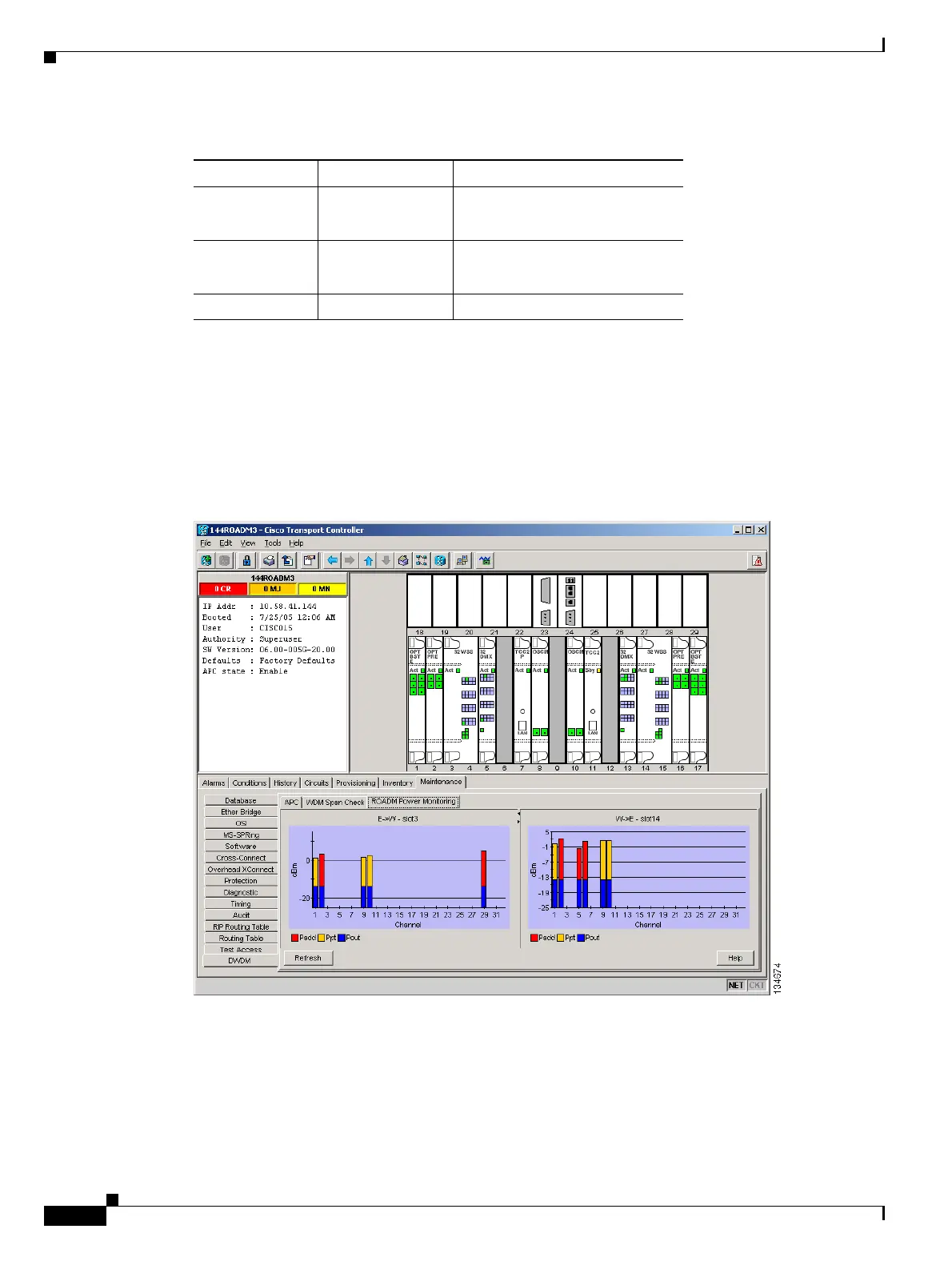

Figure 18-9 Power Monitoring Subtab
AD-1C-xx.x
AD-2C-xx.x
LINE-1-TX VOA Target Attenuation
AD-4C-xx.x LINE-1-TX
CHAN-i-TX
VOA Target Attenuation
32-DMX LINE-1-TX VOA Target Attenuation
Table 18-21 APC-Managed Parameters (continued)
Card Port Parameters
