Chapter 3 Turn Up a Node
NTP-G22 Verify Common Card Installation

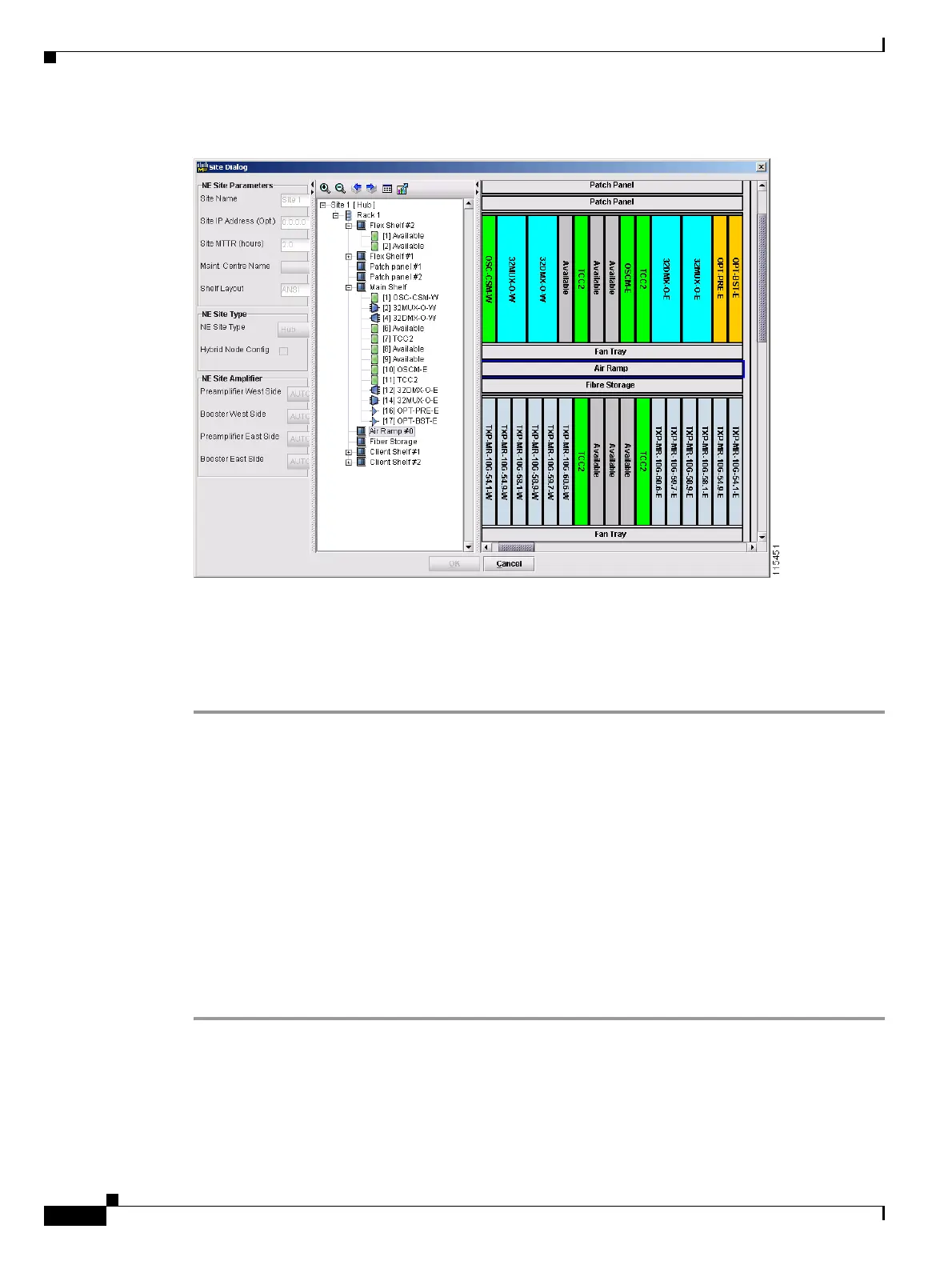

Figure 3-1 Cisco MetroPlanner Shelf Layout
If you not do not have all the reports and files listed in Table 3-1, do not continue. See your site or
network planner for the required information and files.
Step 2 Print Table 3-1 for reference. You will need information from the reports during node turn-up.
Stop. You have completed this procedure.
NTP-G22 Verify Common Card Installation
Step 1 Verify that two TCC2/TCC2P cards are installed in Slots 7 and 11.
Step 2 Verify that the green ACT (active) LED is illuminated on one TCC2/TCC2P and the amber STBY
(standby) LED is illuminated on the second TCC2/TCC2P.
Purpose This procedure verifies that the ONS 15454 node has two TCC2/TCC2P
cards installed and is ready for turn-up.
Tools/Equipment None
Prerequisite Procedures Chapter 1, “Install the Shelf and Common Control Cards”
Required/As Needed Required
Onsite/Remote Onsite
Security Level Retrieve or higher
