Cisco ONS 15454 DWDM User Manual

15-7
Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0
September 2005
Chapter 15 Shelf Hardware Reference
15.3.1 Mounting a Single Node

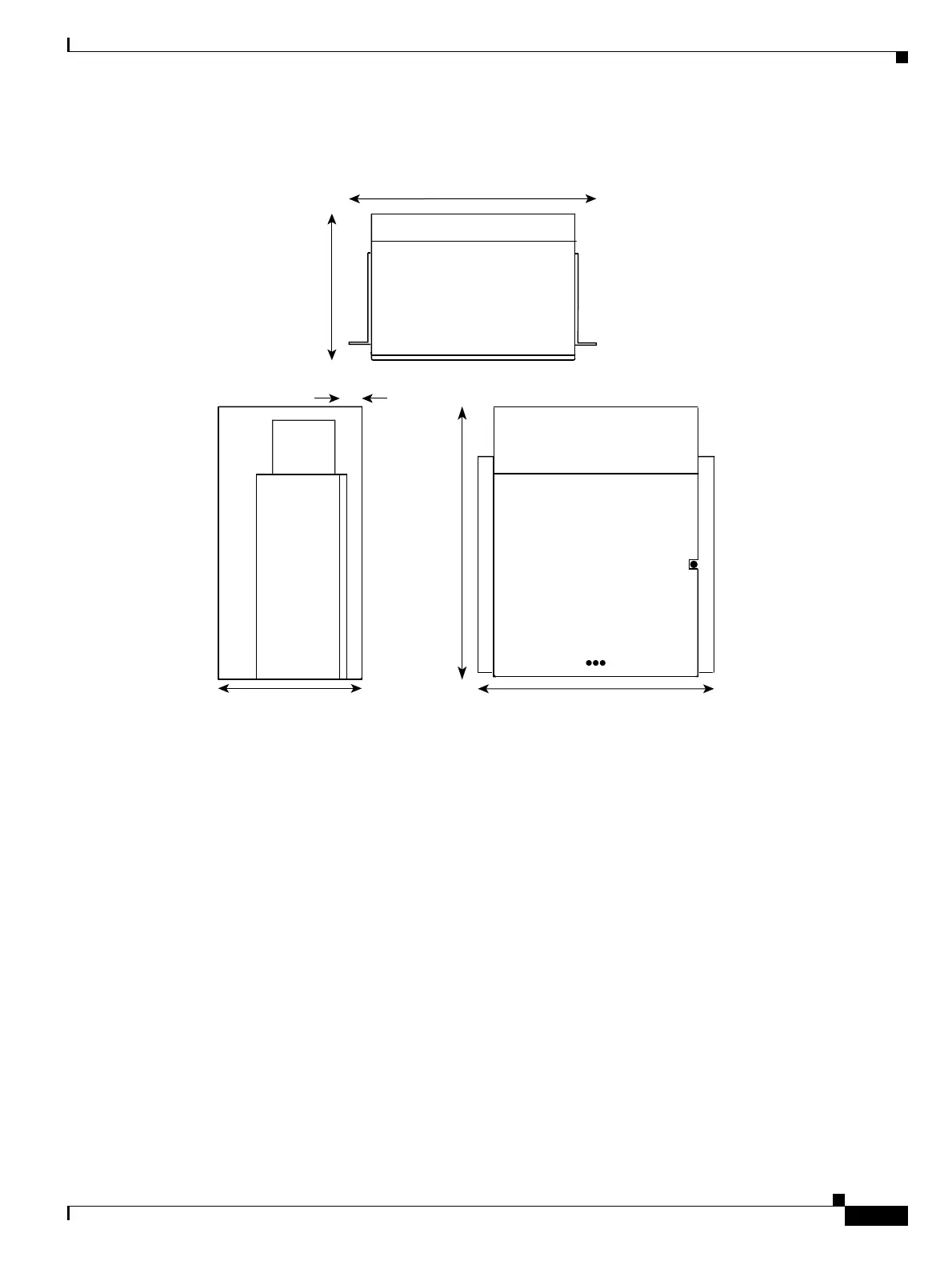

Figure 15-3 ONS 15454 ETSI Dimensions
15.3.1 Mounting a Single Node
The ONS 15454 ETSI requires 616.5 mm (24.24 inch) minimum of vertical rack space and 25 mm
(1 inch) below the installed shelf assembly to allow air flow to the fan intake. If a second
ONS 15454 ETSI is installed above a shelf assembly, the air ramp between the shelves provides space
for air flow. To ensure the mounting is secure, use two to four M6 mounting screws for each side of the
shelf assembly. A shelf assembly should be mounted at the bottom of the rack if it is the only unit in the
rack.
Figure 15-4 shows the rack mounting position for the ONS 15454 ETSI shelf.
Front View
S
ide View
Top View
616.5 mm
(24.27 in.)
61213
280 mm (11.02 in.)
280 mm
(11.02 in.)
40 mm (1.57 in.)
535 mm (21.06 in.) total width
535 mm (21.06 in.) total width

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
