DLP-G151 View Payload History PM Parameters
DLP-G151 View Payload History PM Parameters
Step 1 In node view, double-click the MXP_MR_2.5G or MXPP_MR_2.5G card where you want to view PM
counts. The card view appears.
Step 2 Click the Performance > Payload PM > History tabs (Figure 9-12).

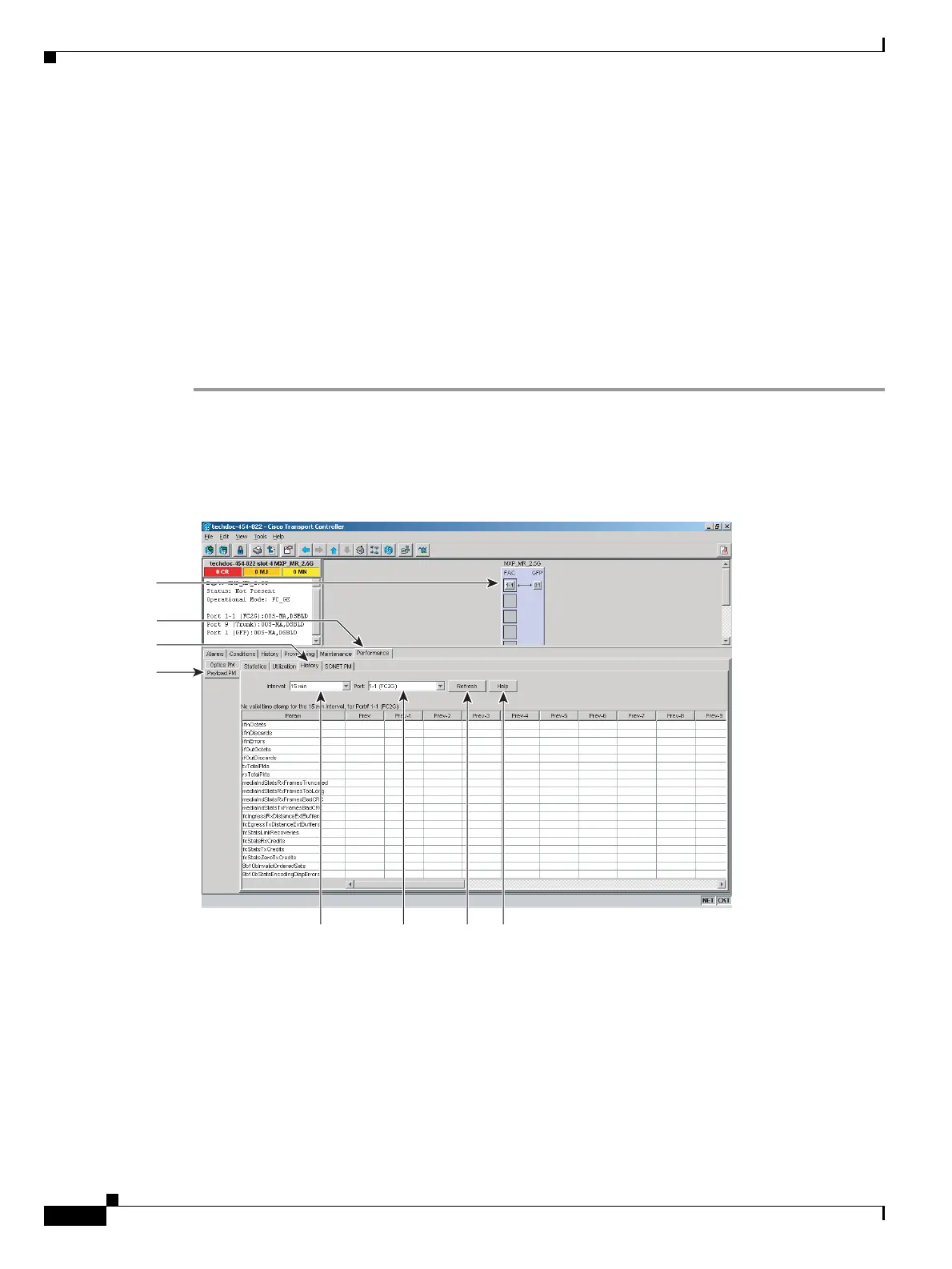

Figure 9-12 History Tab on the Card View Performance Window
Step 3
Select the desired port from the Port drop-down list.
Step 4 Click Refresh. PM statistics appear for the selected port.
Step 5 View the PM parameter names that appear in the Param column. The PM parameter values appear in the
Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the
Cisco ONS 15454 Troubleshooting Guide or the Cisco ONS 15454 SDH Troubleshooting Guide.
Purpose This task enables you to view historical PM counts at selected time
intervals on an MXP_MR_2.5G or MXPP_MR_2.5G card and port to
detect possible performance problems.
Tools/Equipment None
Prerequisite Procedures DLP-G46 Log into CTC, page 2-25
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
115777
Payload PM tab
Performance tab
Card View
History tab
Refresh
button
Help
button
Port
menu
Interval
menu
