Chapter 17 Node Reference
17.1.4 ROADM Node
Figure 17-9 shows an example of an ROADM with 32DMX-O cards installed.

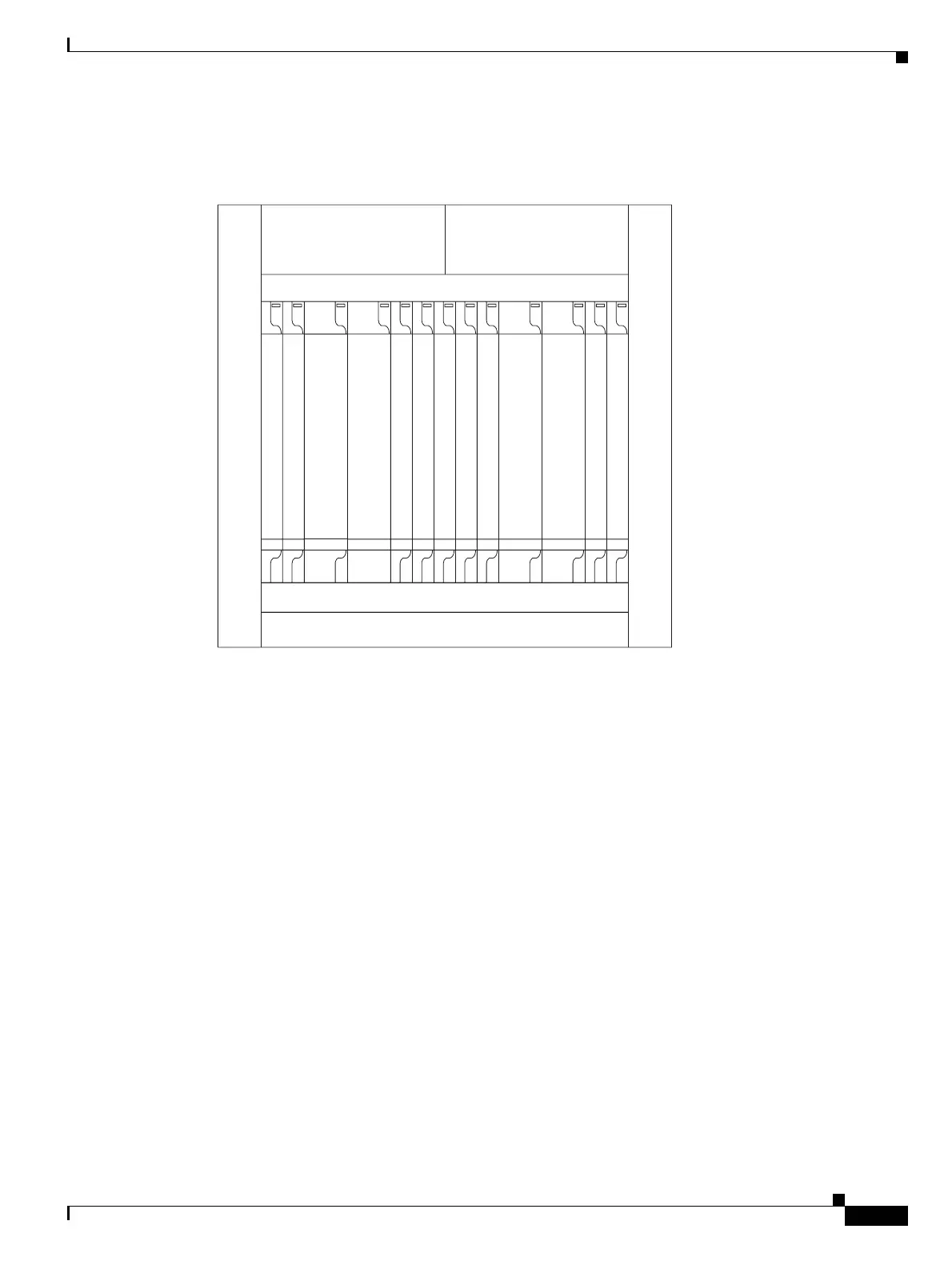

Figure 17-9 ROADM Node with BST-PRE, OPT-BST, and 32DMX-O Cards Installed
Figure 17-10 shows an example of a reconfigurable OADM east-to-west optical signal flow. The
west-to-east optical signal flow follows an identical path through the west OSC-CSM and west 32WSS
modules. In this example, OSC-CSM modules are installed so OPT-BST modules are not needed.
OPT-PRE
OPT-BST
32WSS
DCU W
Air ramp
DCU E
32DMX-O
32DMX-O
TCC2/TCC2P
OSCM
OSCM
TCC2/TCC2P
32WSS
OPT-BST
OPT-PRE
AIC-I
115231
