15.7.2 Rear Cover
15.7.2 Rear Cover
The ONS 15454 ANSI has an optional clear plastic rear cover. This clear plastic cover provides
additional protection for the cables and connectors on the backplane. Figure 15-27 shows the rear cover
screw locations.

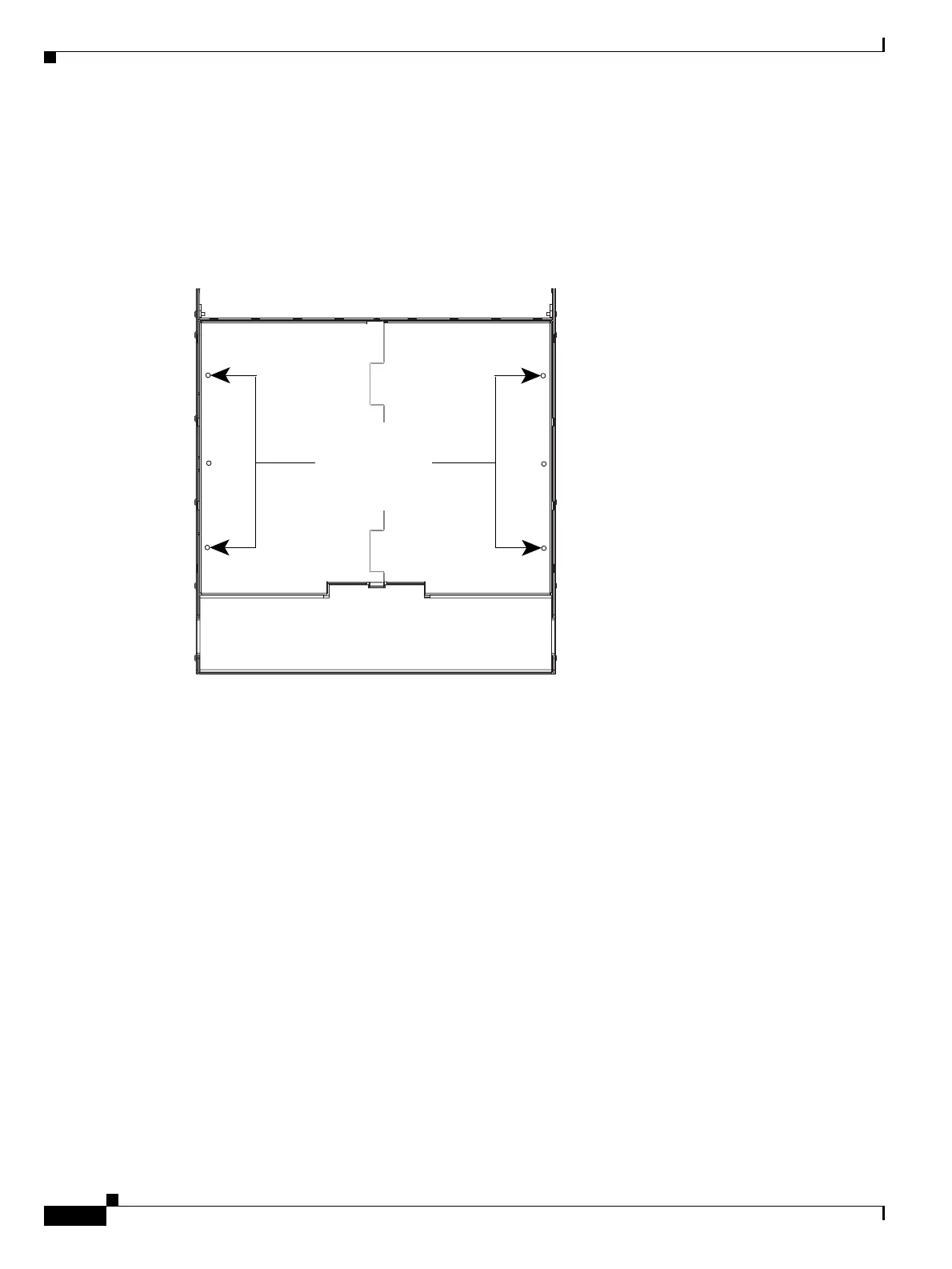

Figure 15-27 Backplane Attachment for Cover
You can also install the optional spacers if more space is needed between the cables and rear cover
(Figure 15-28).
32073
Screw locations
for attaching the
rear cover
