17-13

Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0

August 2005

Chapter 17 Node Reference

17.1.7 OSC Regeneration Node

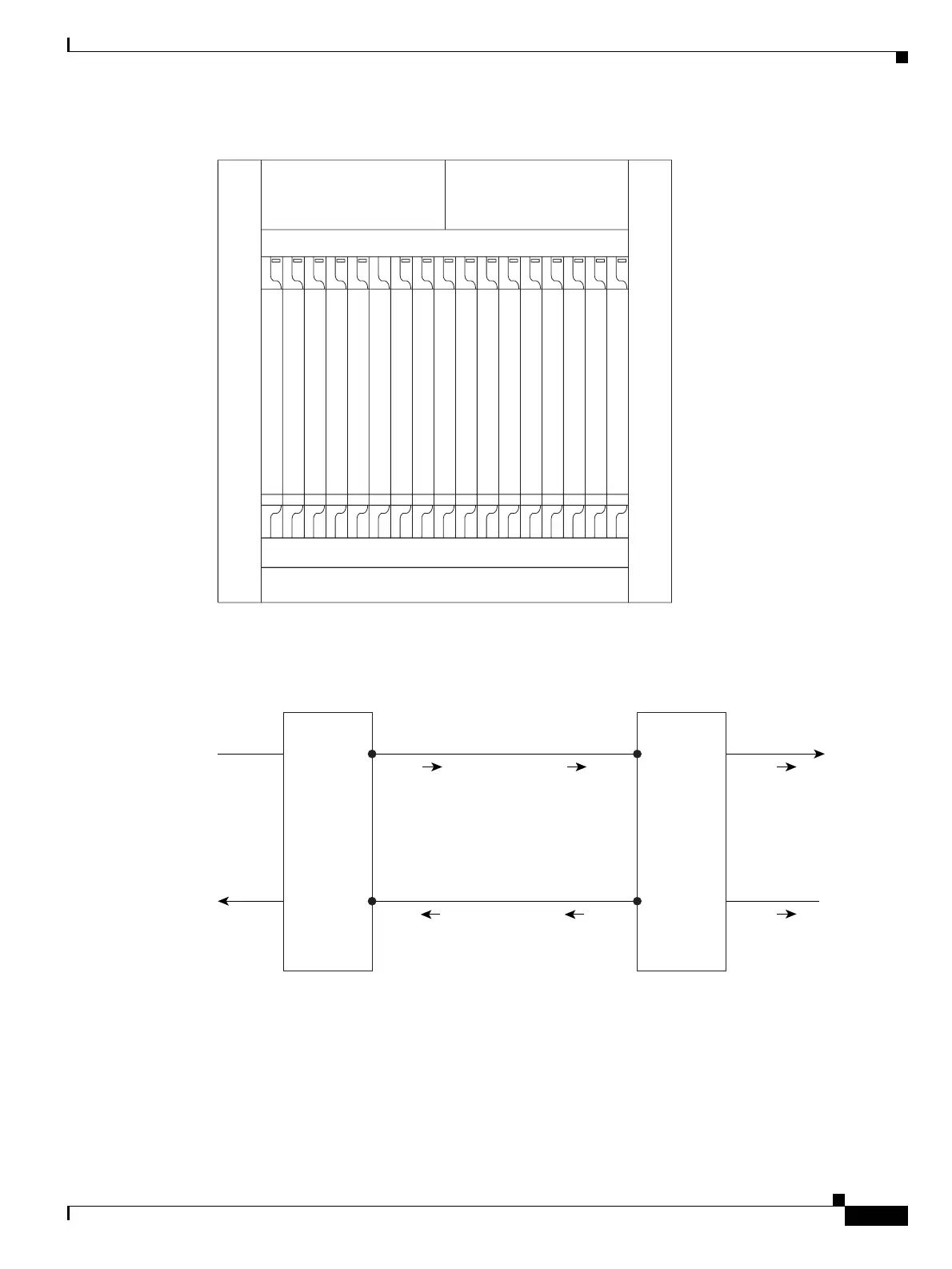

Figure 17-13 OSC Regeneration Line Node Configuration Example

Figure 17-14 shows the OSC regeneration line node OSC signal flow.

Figure 17-14 OSC Regeneration Line Node Flow

OSC-CSM

Available

DCU

Air ramp

DCU

Available

TCC2/TCC2P

Available

TCC2/TCC2P

Available

OSC-CSM

Available

AIC-I

115232

115255

Fiber

Side B

OSC-CSM

Side A

OSC-CSM

Side B

Side A

COM-TX

Line-TX

Side B

Side A

COM-RX

Line-RX

Side B

Side A

COM-RX

Side B

Side A

Side B

Side A

Side B

Side A

COM-TX
