Chapter 15 Shelf Hardware Reference
15.15 Cards and Slots
15.15 Cards and Slots
ONS 15454 cards have electrical plugs at the back that plug into electrical connectors on the shelf
assembly backplane. When the ejectors are fully closed, the card plugs into the assembly backplane.
Figure 15-43 shows card installation for an ONS 15454 ANSI shelf.

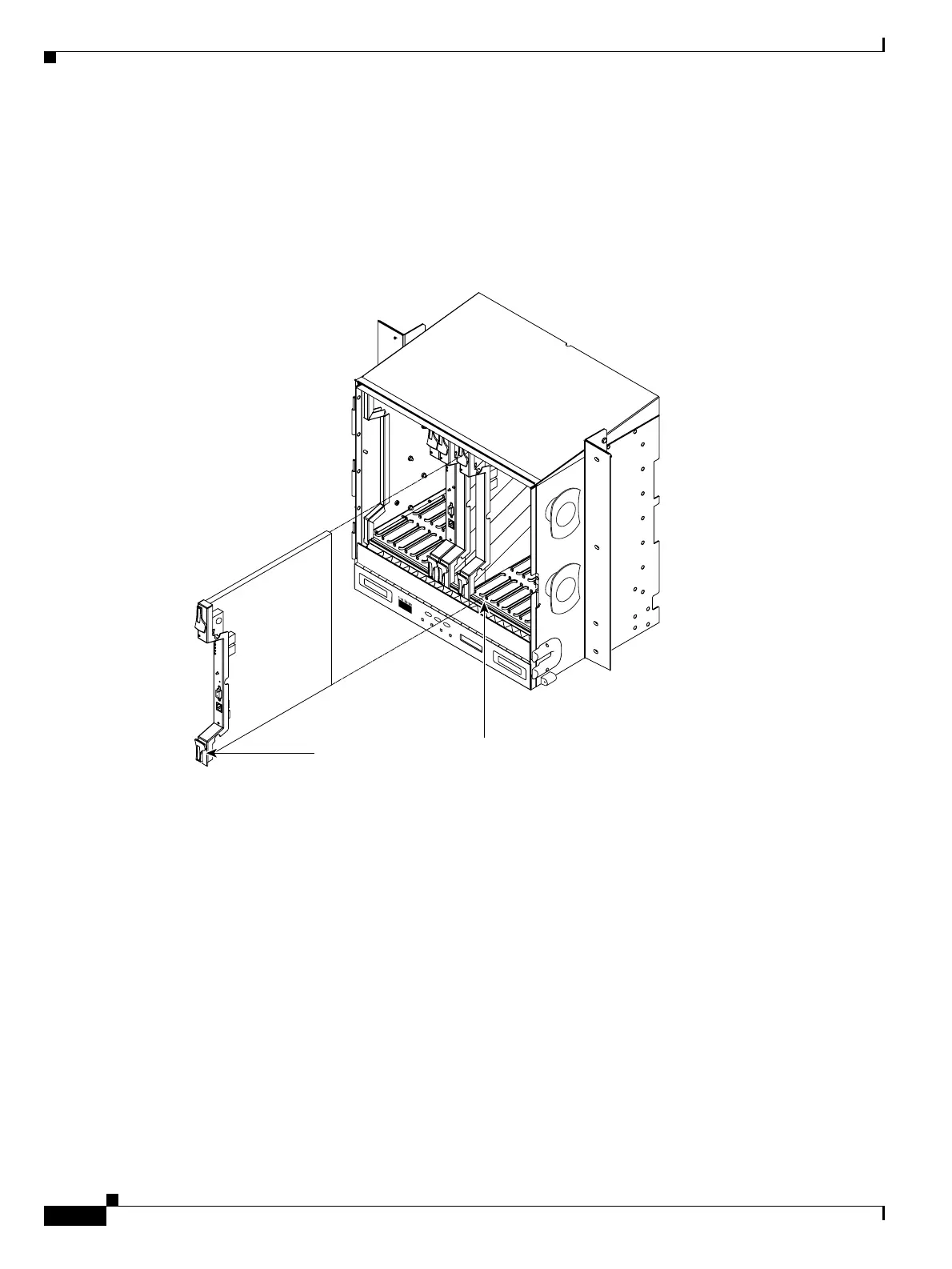

Figure 15-43 Installing Cards in the ONS 15454 ANSI
F
A
N
F
A
IL
C
R
IT
M
A
J
M
IN
39391
Guide rail
Ejector
