Cisco ONS 15454 DWDM User Manual

1-64
Cisco ONS 15454 DWDM Installation and Operations Guide, R6.0
August 2005
Chapter 1 Install the Shelf and Common Control Cards
NTP-G13 Install the Rear Cover (ANSI Only)
Step 7 Continue with the “NTP-G14 Install DWDM Equipment” procedure on page 1-66.
Stop. You have completed this procedure.
NTP-G13 Install the Rear Cover (ANSI Only)
Step 1 Locate the three screws that run vertically along on each side of the backplane (Figure 1-27).

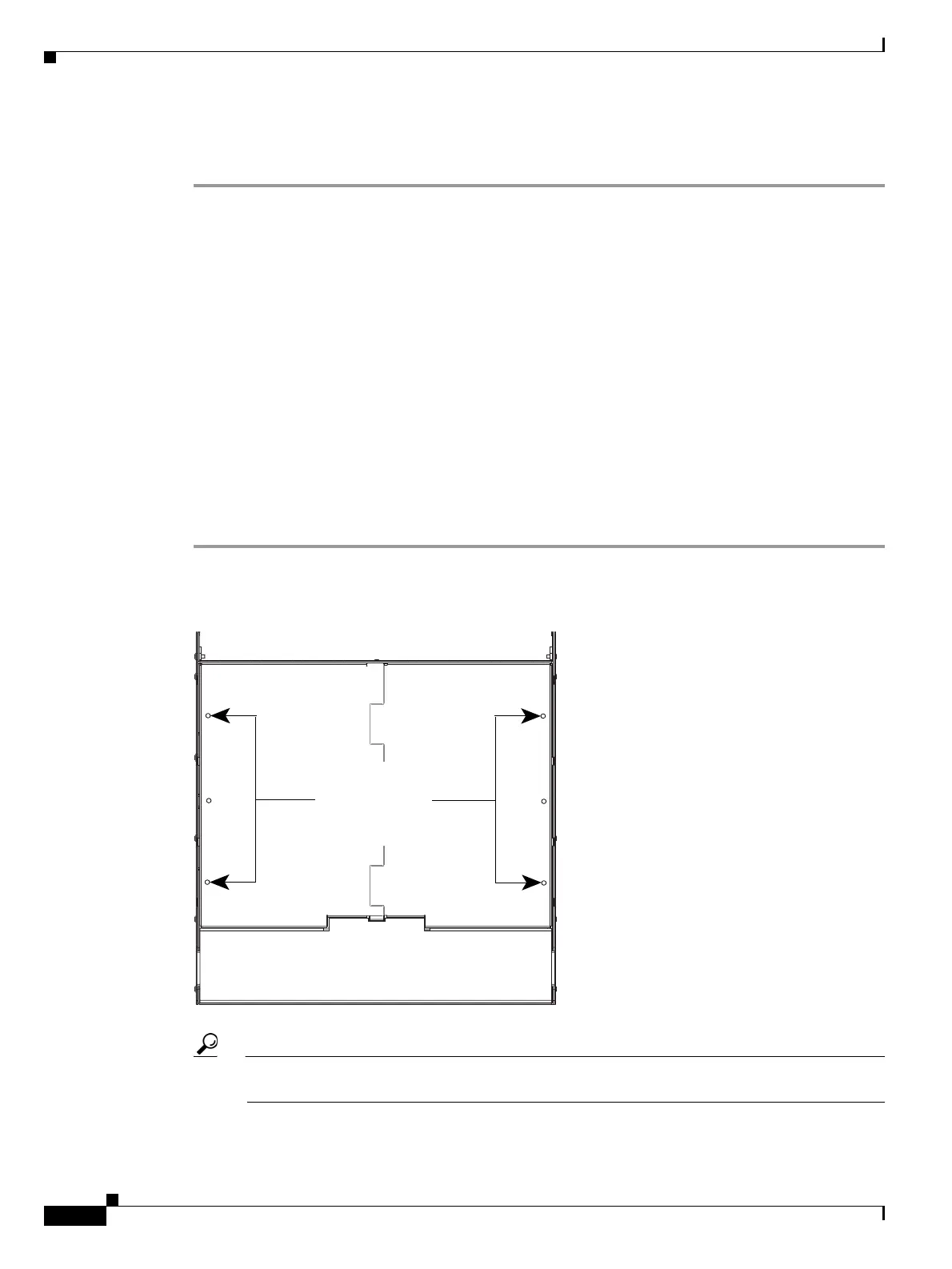

Figure 1-27 Backplane Attachment for the Rear Cover
Tip Only six screws (three on each side) line up with the screw slots on the mounting brackets,
making the screws easy to locate.
Purpose The following procedure explains how to install the rear cover on an
ONS 15454 ANSI shelf.
Tools/Equipment #2 Phillips screwdriver
Medium slot-head screwdriver
Small slot-head screwdriver
Prerequisite Procedures NTP-G5 Remove the Backplane Covers (ANSI Only), page 1-26
Required/As Needed Required
Onsite/Remote Onsite
Security Level None
32073
Screw locations
for attaching the
rear cover

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
