NTP-G117 Replace the ANSI Shelf Alarm Interface Panel

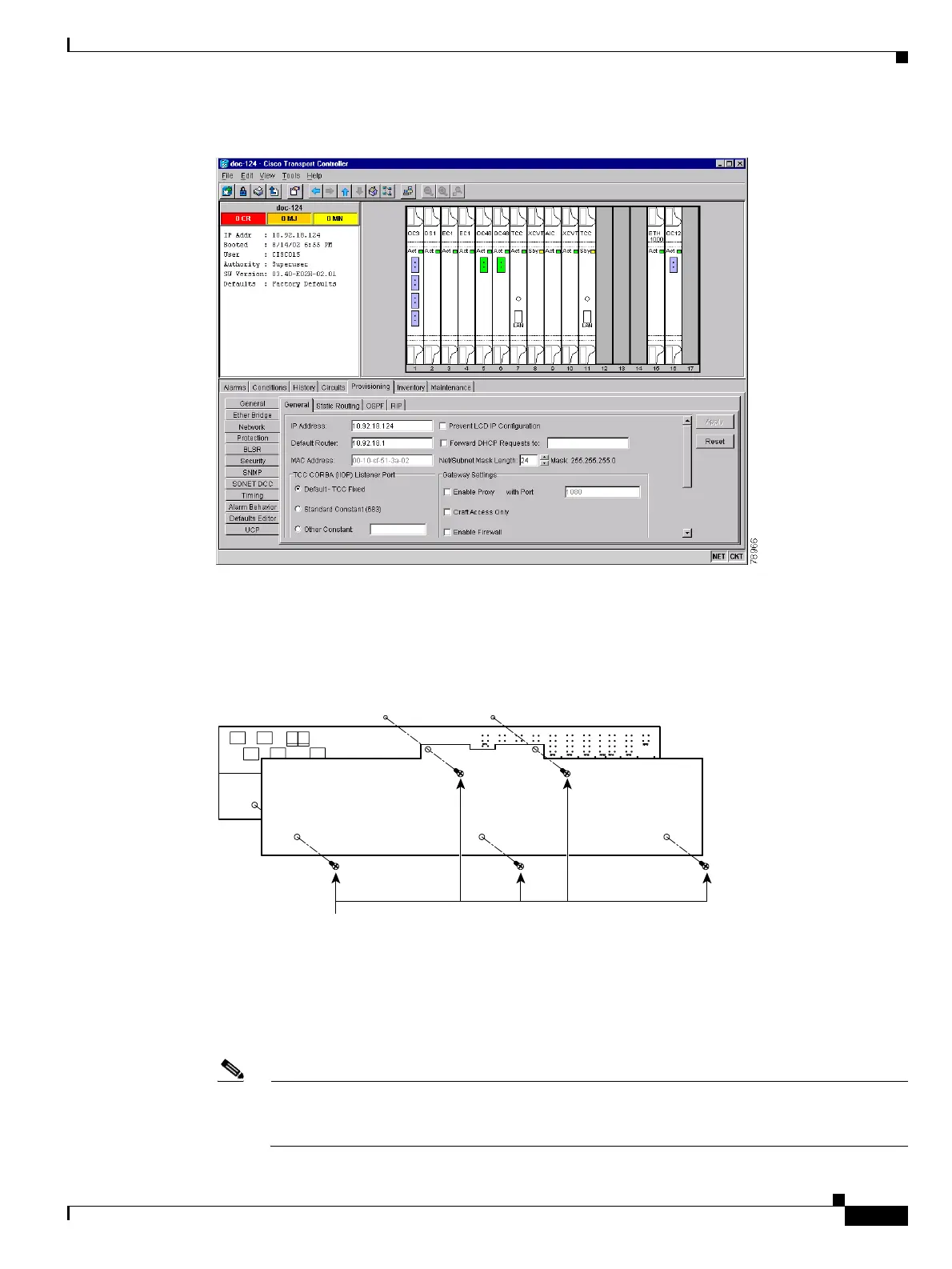

Figure 13-10 Find the MAC Address
Step 4
Call Cisco TAC for assistance in replacing the AIP and maintaining the original MAC address. See the
“Obtaining Technical Assistance” section on page lxxvi.
Step 5 Unscrew the five screws that hold the lower backplane cover in place (Figure 13-11).
Figure 13-11 Lower Backplane Cover
Step 6
Grip the lower backplane cover and gently pull it away from the backplane.
Step 7 Unscrew the two screws that hold the AIP cover in place.
Step 8 Grip the cover and gently pull away from the backplane.
Note On the 15454-SA-HD (P/N: 800-24848), 15454-SA-NEBS3E, 15454-SA-NEBS3, and
15454-SA-R1 (P/N: 800-07149) shelves, the AIP cover is clear plastic. On the 15454-SA-ANSI
shelf (P/N: 800-19857), the AIP cover is metal.
32069
Retaining
screws
