Chapter 19 CTC Operation Reference
19.5.3 Card View

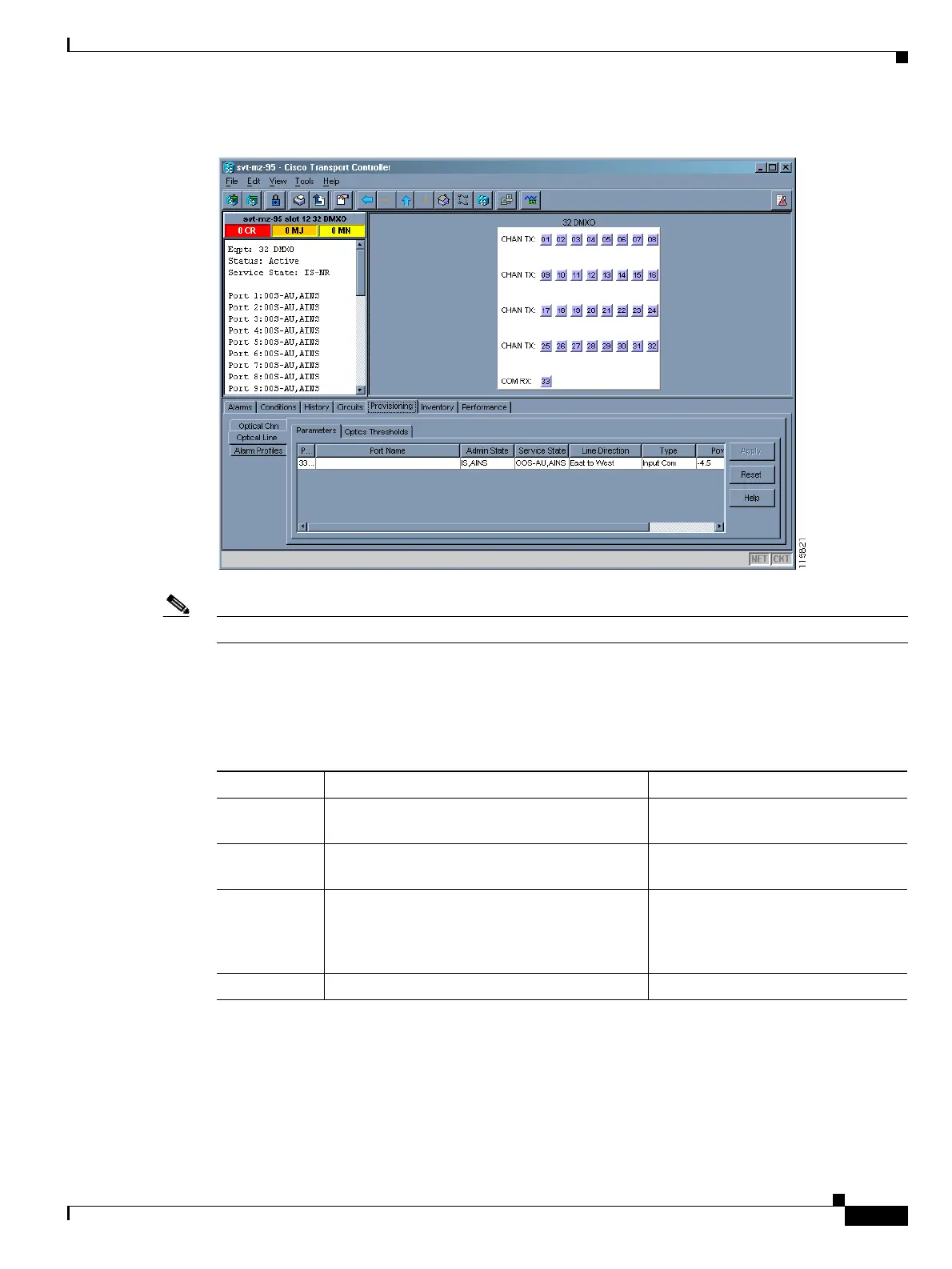

Figure 19-7 CTC Card View Showing a 32DMX-O Card
Note CTC provides a card view for all ONS 15454 cards except the TCC2/TCC2P card.
Use the card view tabs and subtabs shown in Table 19-12 to provision and manage the ONS 15454. The
subtabs, fields, and information shown under each tab depend on the card type selected. The
Performance tab is not available for the Alarm Interface Controller–International (AIC-I) cards.
Table 19-12 Card View Tabs and Subtabs
Tab Description Subtabs
Alarms Lists current alarms (CR, MJ, MN) for the card
and updates them in real time.
—
Conditions Displays a list of standing conditions on the
card.
—
History Provides a history of card alarms including
date, object, port, and severity of each alarm.
Session (displays alarms and events
for the current session), Card
(displays alarms and events retrieved
from a fixed-size log on the card)
Circuits Creates, deletes, edits, and search circuits. —
