17.2.3 Hybrid Terminal Node

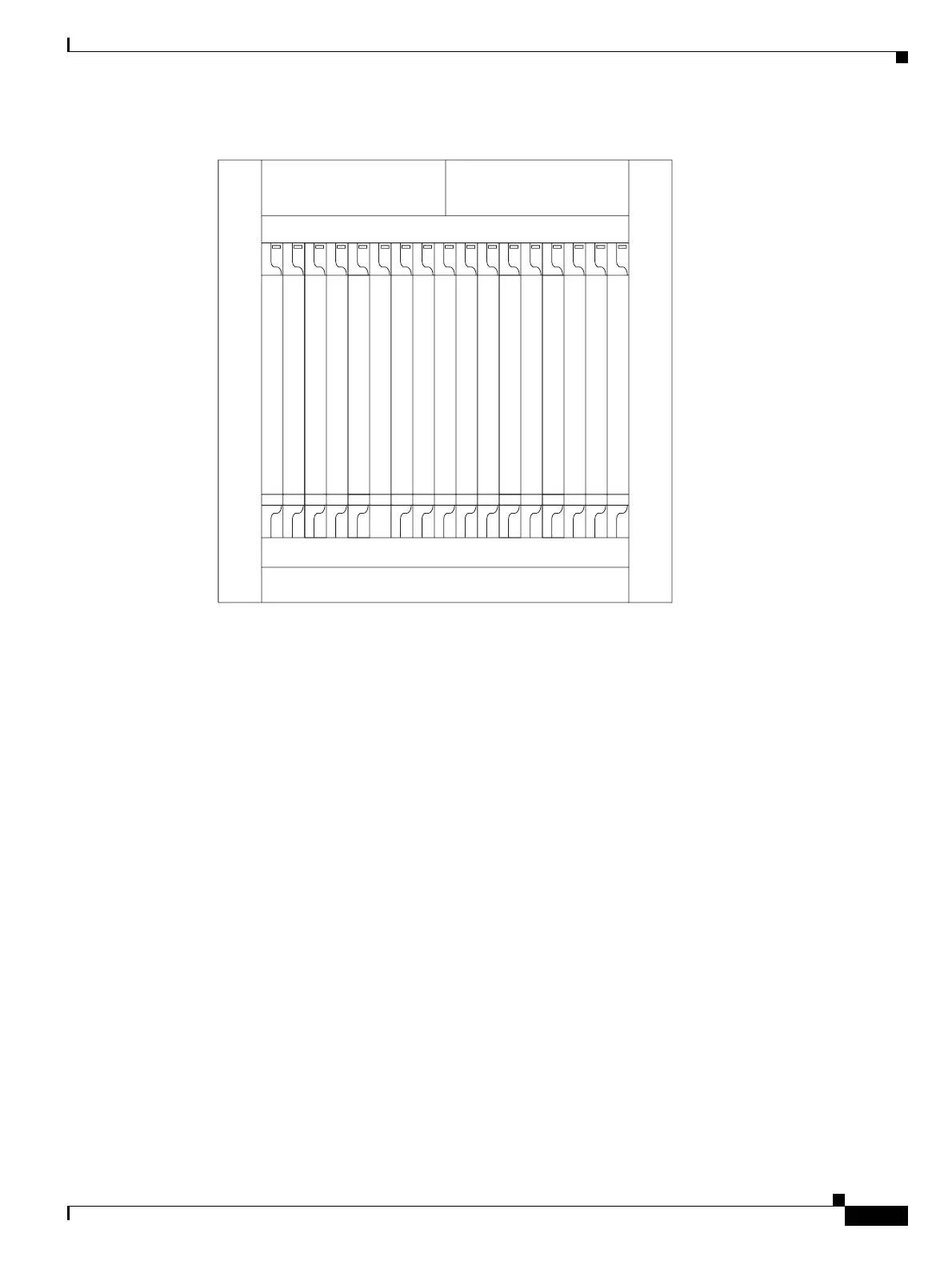

Figure 17-20 Scalable Terminal Example
17.2.3 Hybrid Terminal Node
A hybrid terminal node is a single ONS 15454 node equipped with at least one 32 MUX-O card, one
32 DMX-O card, two TCC2/TCC2P cards, and TDM cards. If the node is equipped with OPT-PRE or
OPT-BST amplifiers, it is considered an amplified terminal node. The node becomes passive if the
amplifiers are removed. The hybrid terminal node type is based on the DWDM terminal node type
described in the “17.1.2 Terminal Node” section on page 17-3. Figure 17-21 shows an example of an
amplified hybrid terminal node configuration.
OPT-BST or OSC-CSM
OPT-PRE
DCU
Air ramp
Available
TCC2/TCC2P
XC10G
XC10G
TCC2/TCC2P
AIC-I
96902
OSC-CSM or OADM
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
OADM or 4MD or ITU-T line card
