Chapter 9 Monitor Performance
DLP-G149 View Payload Statistics PM Parameters
DLP-G149 View Payload Statistics PM Parameters
Step 1 In node view, double-click the MXP_MR_2.5G or MXPP_MR_2.5G card where you want to view PM
counts. The card view appears.
Step 2 Click the Performance > Payload PM > Statistics tabs (Figure 9-10).

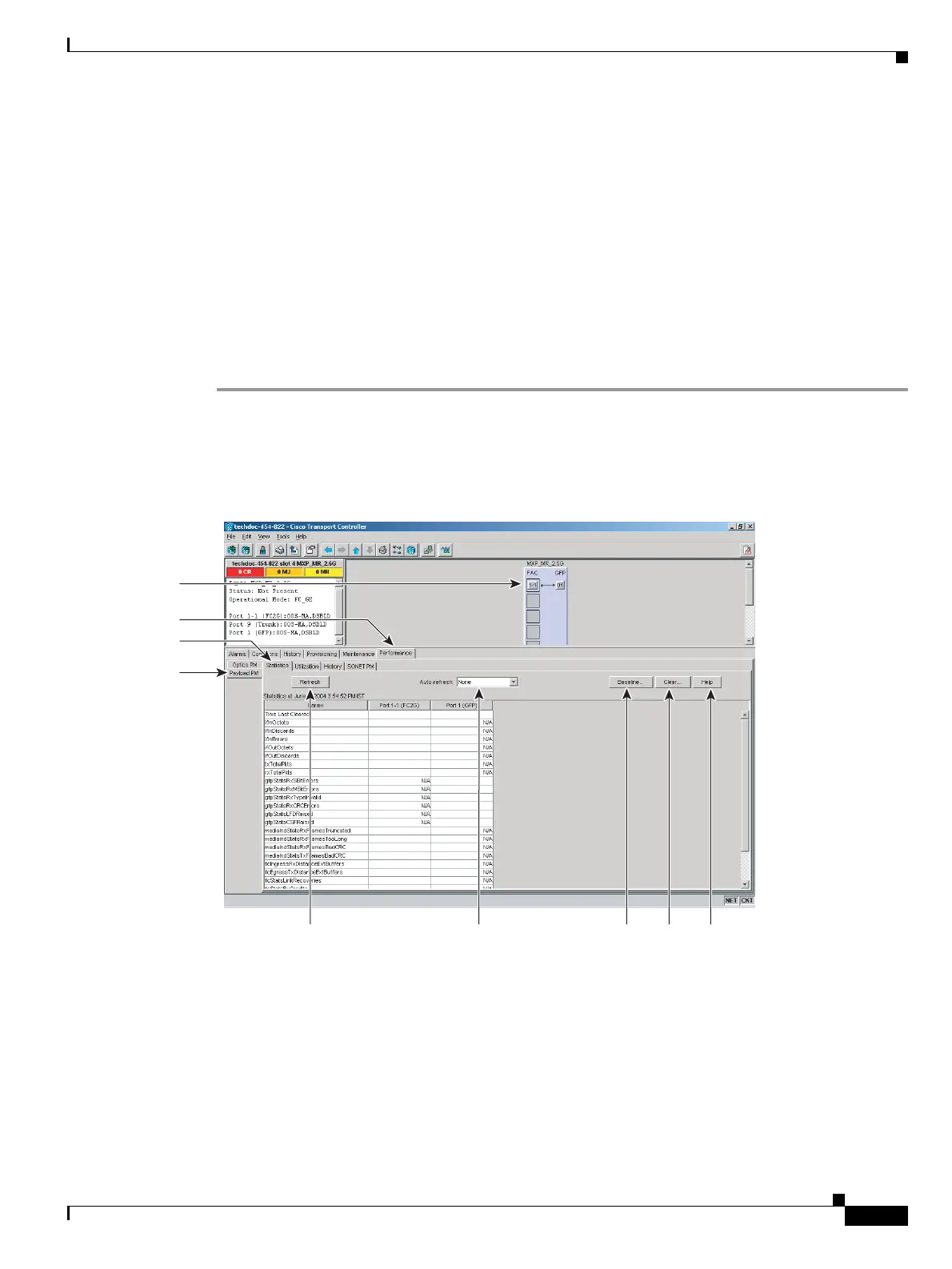

Figure 9-10 Statistics Tab on the Card View Performance Window
Step 3
Click Refresh. PM statistics appear for each port on the card.
Step 4 View the PM parameter names that appear in the Param column. The current PM parameter values appear
in the Port # columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in
the Cisco ONS 15454 Troubleshooting Guide or the Cisco ONS 15454 SDH Troubleshooting Guide.
Purpose This task enables you to view current statistical PM counts on an
MXP_MR_2.5G or MXPP_MR_2.5G card and port to detect possible
performance problems.
Tools/Equipment None
Prerequisite Procedures DLP-G46 Log into CTC, page 2-25
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
