Chapter 7
IP Address Assignment
RUGGEDCOM ROX II
CLI User Guide
222 Example: Configuring the Device as a Relay Agent
IMPORTANT!
The values shown are specific to the provided topology. Actual values can vary based on the user's
configuration.
192.168.0.52
P2, switch.0001
192.168.0.8
P10, PVID=1
10.10.10.1/24
P2, PVID=3
172.16.10.1/24
P1, PVID=2
4
6
1
7
3
1
2
5

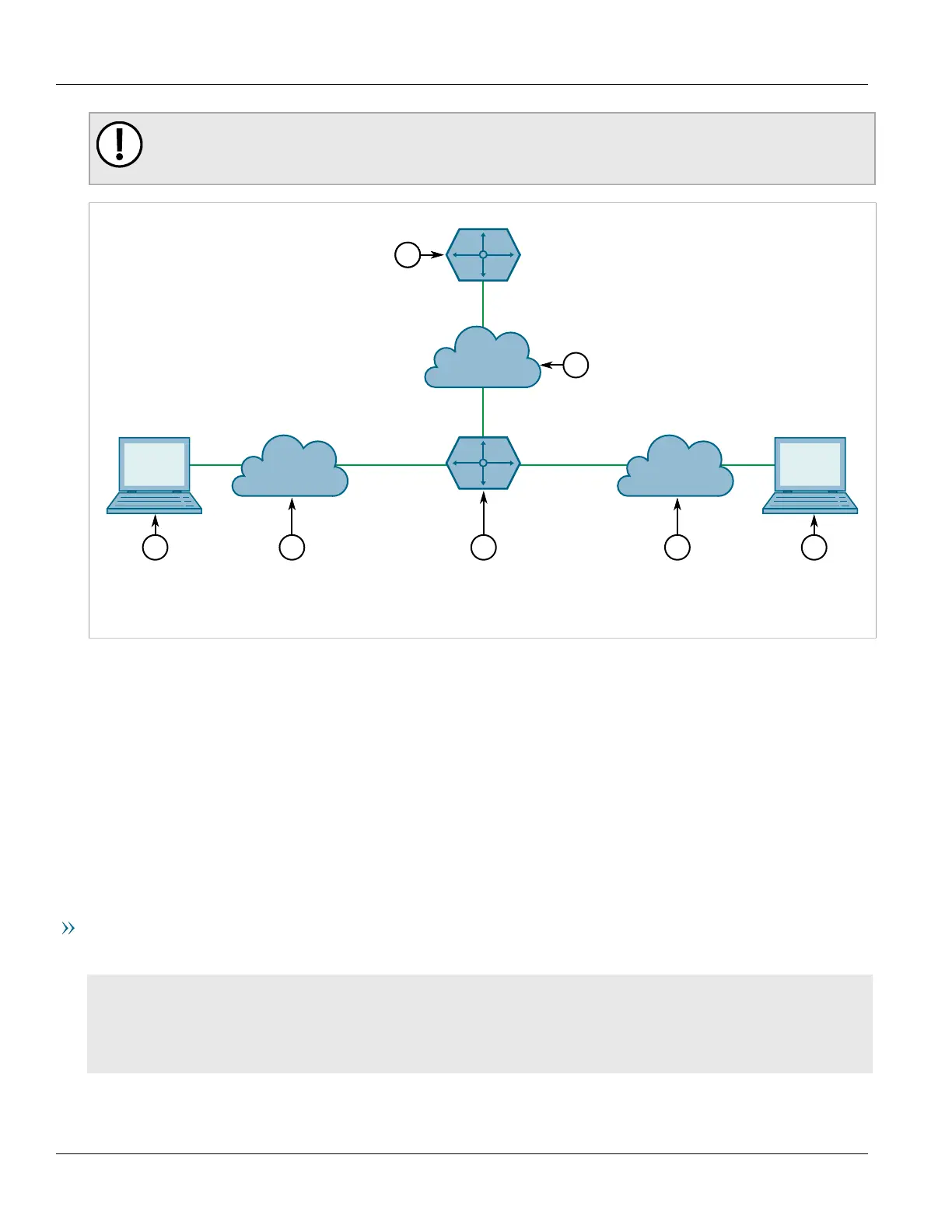

Figure4:Topology – Device as a Relay Agent
1.DHCP Server 2.LAN A 3.Client 2 4.LAN B 5.DHCP Relay Agent (RUGGEDCOM ROX II Device) 6.LAN C 7.Client 1
To configure the device as a DHCP relay agent per the topology, do the following:
1. Configure the device as a DHCP relay agent:
a. Add VLAN 2 and VLAN 3. For more information, refer to Section8.5.5.2, “Adding a Static VLAN”.
b. Assign IP address 192.168.0.8 to VLAN 1. For more information, refer to Section7.1.3.2, “Adding an IPv4
Address” or Section7.1.4.2, “Adding an IPv6 Address”.
c. Change the PVID of port 1 to PVID 2, and change the PVID of port 2 to PVID 3. Refer to Section8.1.2,
“Configuring a Switched Ethernet Port” for more information.
2. Configure a separate device as the DHCP Server. If the DHCP server being used is a RUGGEDCOM ROX II
device, refer to Section7.3.19, “Example: Configuring the Device as a DHCP Server to Support a Relay Agent”
for more information.
Final Configuration Example
The following configuration reflects the topology:
# show running-config switch dhcp-relay-agent
dhcp-server-address 192.168.0.52
dhcp-client-ports lm4 1
!
dhcp-client-ports lm4 2
!
