Siemens RUGGEDCOM ROX II User Manual

RUGGEDCOM ROX II
CLI User Guide
Chapter 10
Serial Server
Example: Serial Interfaces Configured as a Source and Sink
for Multicast Streams 345
protocols rawsocket
setrawsocket local-port 10002
setrawsocket transport udp
setrawsocket remote-host 232.2.2.2 6001
interface switch.0030
!
interface switch.0040
Section10.4.5
Example: Serial Interfaces Configured as a Source and Sink for
Multicast Streams
This configuration example shows ser-1-1 receiving data on the wire from S1, then creating multiple raw socket
connections to send the data to both interfaces switch.0010 and switch.0020. This data is then packetized as
multicast packets and sent to destination group 232.1.1.1 and destination UDP port 5001. Additionally, ser-1-1
forwards the same data stream to ser-1-2, which then sends the data to S2.
IMPORTANT!
The values shown are specific to the provided topology. Actual values can vary based on the user's
configuration.
switch.0010
10.1.0.1/8
switch.0020
20.1.0.1/8
ser-1-1
ser-1-2
10.1.1.1/8
232.1.1.1:5001
10.1.2.1/8
232.1.1.1:5001
10.1.1.2/8
232.1.1.1:5001
10.1.2.2/8
232.1.1.1:5001
20.1.1.1/8
232.1.1.1:5001
20.1.2.1/8
232.1.1.1:5001
20.1.1.2/8
232.1.1.1:5001
20.1.2.2/8
232.1.1.2:5001
232.2.2.2:5001
232.1.1.1:5001
S1
S2
3
3
1
1
2

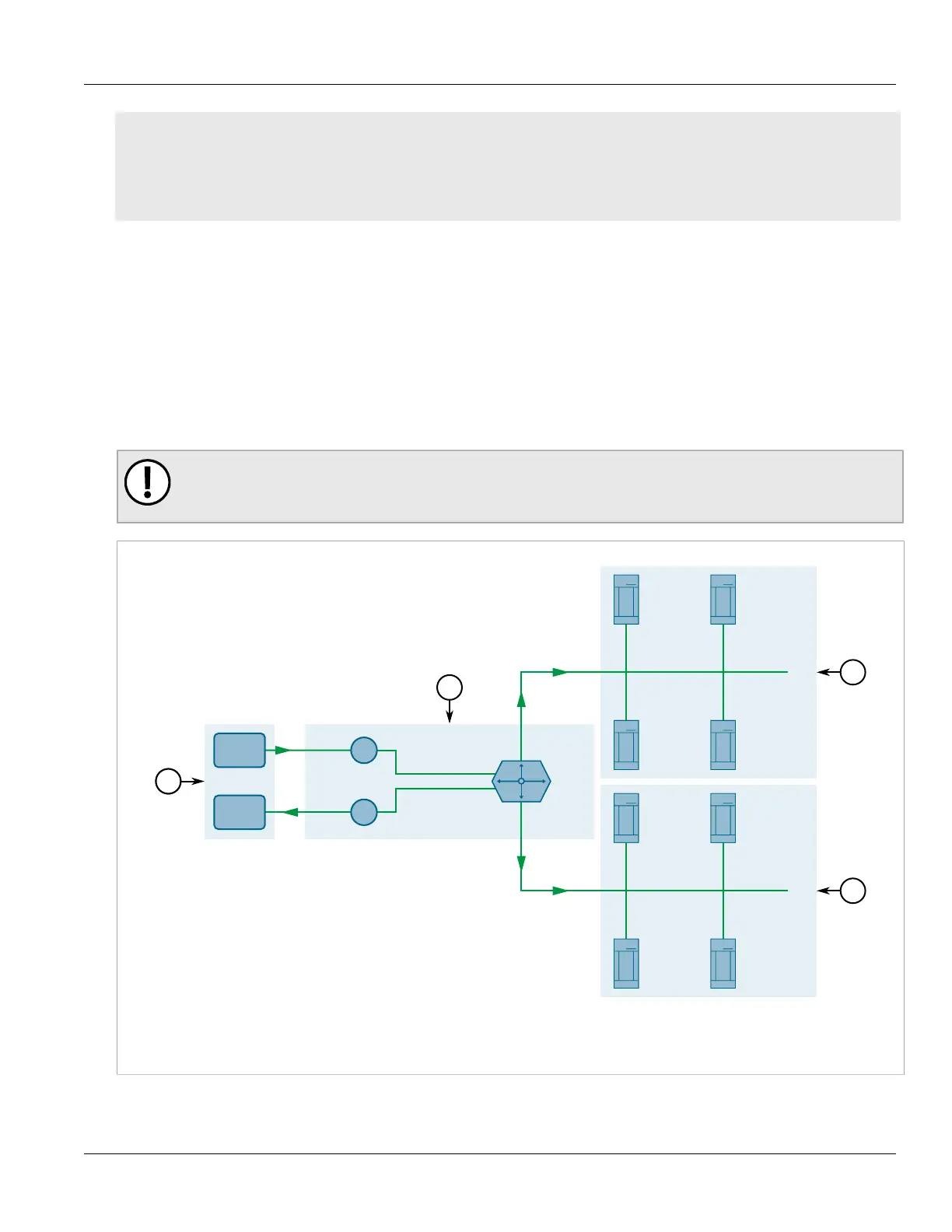

Figure14:Topology - Serial Interfaces Configured as a Source and Sink for Multicast Streams
1.Serial Devices 2.Source and Sink Device (RUGGEDCOM RX5000 Series Device) 3.Listeners 4.Ethernet Network Interfaces
