RUGGEDCOM ROX II
CLI User Guide
Chapter 10
Serial Server
Example: Serial Interfaces Configured as a Source for
Multicast Streams 343
switch.0030
30.1.0.1/8
ser-1-1
ser-1-2
232.2.2.2:6001
232.1.1.1:5001
switch.0040
40.1.0.1/8
40.1.4.1/8
232.2.2.2:6001
40.1.4.2/8
232.2.2.2:6001
30.1.3.1/8
232.2.2.2:6001
30.1.3.2/8
232.2.2.2:6001
switch.0020
20.1.0.1/8
switch.0010
10.1.0.1/8
10.1.1.1/8
232.1.1.1:5001
10.1.1.2/8
232.1.1.1:5001
20.1.2.1/8
232.1.1.1:5001
20.1.2.2/8
232.1.1.1:5001
S1
S2
3
1
1
2
3
3
3

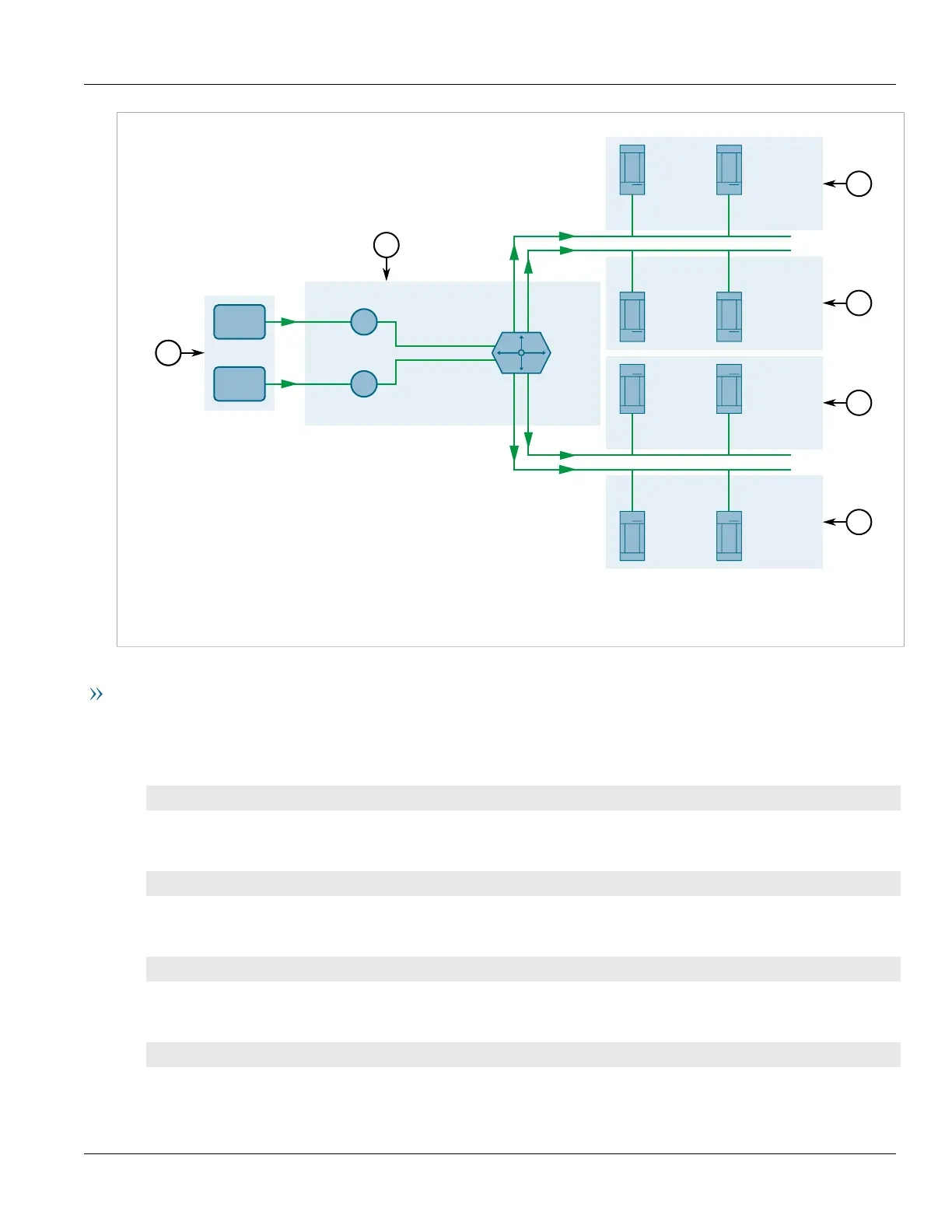

Figure13:Topology - Serial Interfaces Configured as a Source for Multicast Streams
1.Serial Devices 2.Source Device (RUGGEDCOM RX5000 Series Device) 3.Listeners
Step 1: Configure ser-1-1
1. Configure IP addresses for the interfaces (switch.0010, switch.0020, switch.0030, and switch.0040). For
more information, refer to Section7.1.3.2, “Adding an IPv4 Address”.
2. Create a raw socket connection for ser-1-1:
interface serial lm1 1 protocols rawsocket
For more information, refer to Section10.2.3, “Adding a Serial Port Protocol”.
3. Set the raw socket of the local port to 10001:
setrawsocket local-port 10001
For more information, refer to Section10.2.6, “Configuring the Raw Socket Protocol”.
4. Set the transport method to UDP:
setrawsocket transport udp
For more information, refer to Section10.2.6, “Configuring the Raw Socket Protocol”.
5. Set the multicast group for the local host to 232.1.1.1 and the UDP destination port to 5001:
setrawsocket remote-host 232.1.1.1 5001
For more information, refer to Section10.5.2, “Adding a Remote Host”.
6. Set switch.0010 and switch.0020 as the interfaces for the remote host:
