RUGGEDCOM ROX II
CLI User Guide
Chapter 12
Tunneling and VPNs
Example: Configuring an Encrypted VPN Tunnel 423
192.168.50.1/24
192.168.50.100/24
2.2.2.1/30 2.2.2.2/30
192.168.60.1/24
192.168.60.100/24
1
5
4
1
3
2

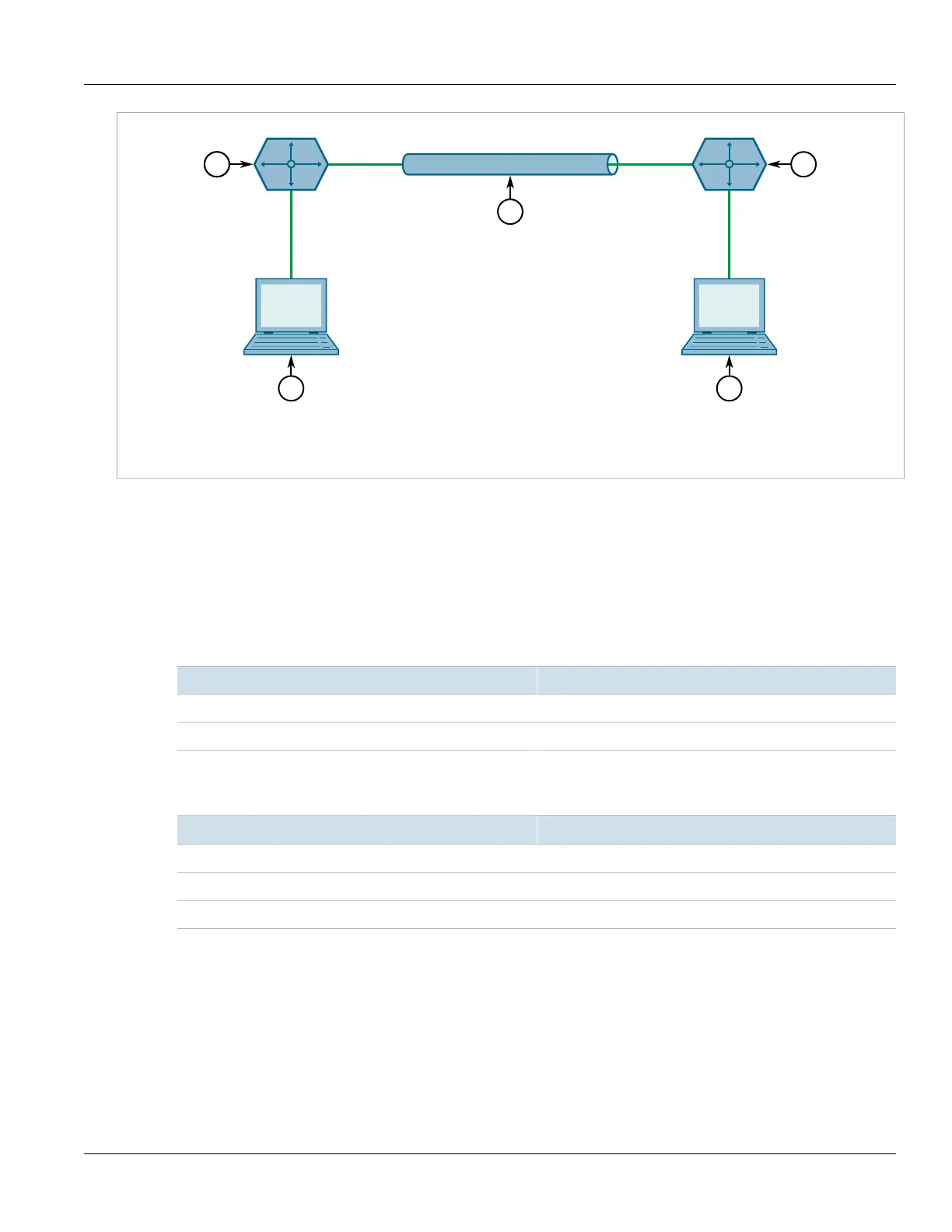

Figure19:Topology – Site-to-Site Encrypted VPN Tunnel with a Pre-Shared Key
1.Device A 2.IPsec Encrypted VPN Tunnel 3.Device B 4.Client 1 5.Client 2
To configure a VPN tunnel, do the following:
1. Configure a connection name for the VPN. For more information, refer to Section12.8.6.2, “Adding a
Connection”.
2. Configure Device A:
a. Configure a host name for the device. For more information, refer to Section5.2, “Configuring the Host
Name”.
b. Add a unique pre-shared key and configure the following parameters:
Parameter Value
Local Address 2.2.2.1/30
Remote Address 2.2.2.2/30
For more information, refer to Section12.8.5.2, “Adding a Pre-Shared Key”.
c. Add an IPsec connection and configure the following parameters:
Parameter Value
Startup Operation start
Authenticate By secret
Connection Type tunnel
For more information about IPsec connections, refer to Section12.8.6.2, “Adding a Connection”.
d. Configure an Internet Key Exchange (IKE) algorithm with default values. For more information, refer to
Section12.8.7.2, “Adding an IKE Algorithm”.
e. Configure an Encapsulated Security Payload (ESP) algorithm with default values. For more information,
refer to Section12.8.8.3, “Adding an ESP Algorithm”.
f. Configure the left connection end for the IPsec tunnel with the following public IP address parameters:
