Lanier Copier System Edition - Opening and Closing the Duplex Reversal Unit

Operating Instructions Maintenance Guide 2 Copier System Edition
71
D
DD
D

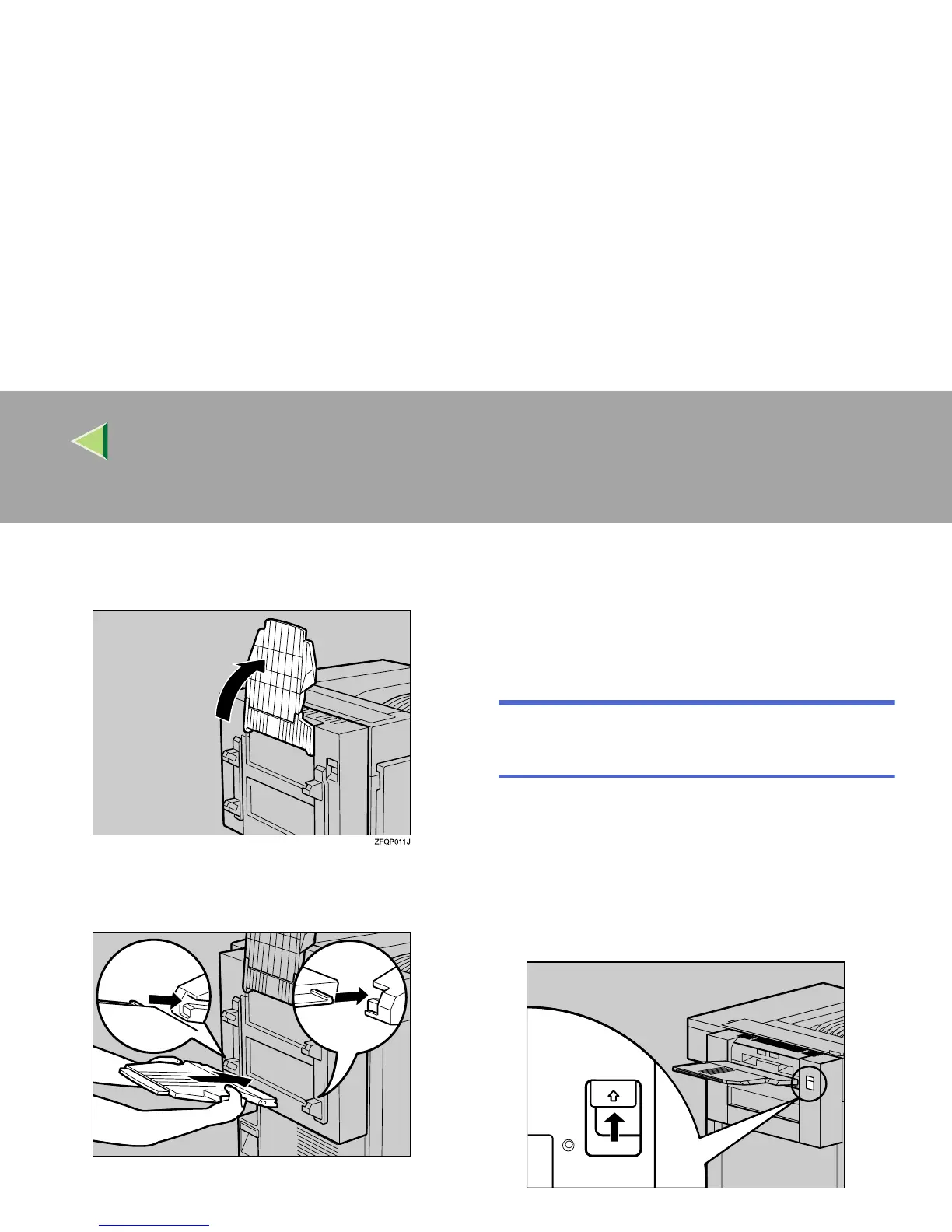

Raise the External Tray attached to the
Duplex Reversal Unit
E
EE
E
Insert the hooks on both sides of the lower
tray of the PT460 (Multi-bin) into the slots.
F
FF
F
Insert the hooks on both sides of the upper
tray of the PT460 (Multi-bin) into the slots
as in step
E
.
This completes the reattachment of the PT460
(Multi-bin) to the Duplex Unit.
Opening and Closing the Duplex
Reversal Unit
There are times when you might have to detach
the Duplex Reversal Unit to remove misfed pa-
per. This section describes how to detach the Du-
plex Reversal Unit.
A
AA
A
Push up the lock release button and keep it
in place.
ZFQP040J
ZDJP203J
