Troubleshooting for Finishing Options

Finisher Registration Adjustment For Booklet Finisher SR3220 (D3B9)

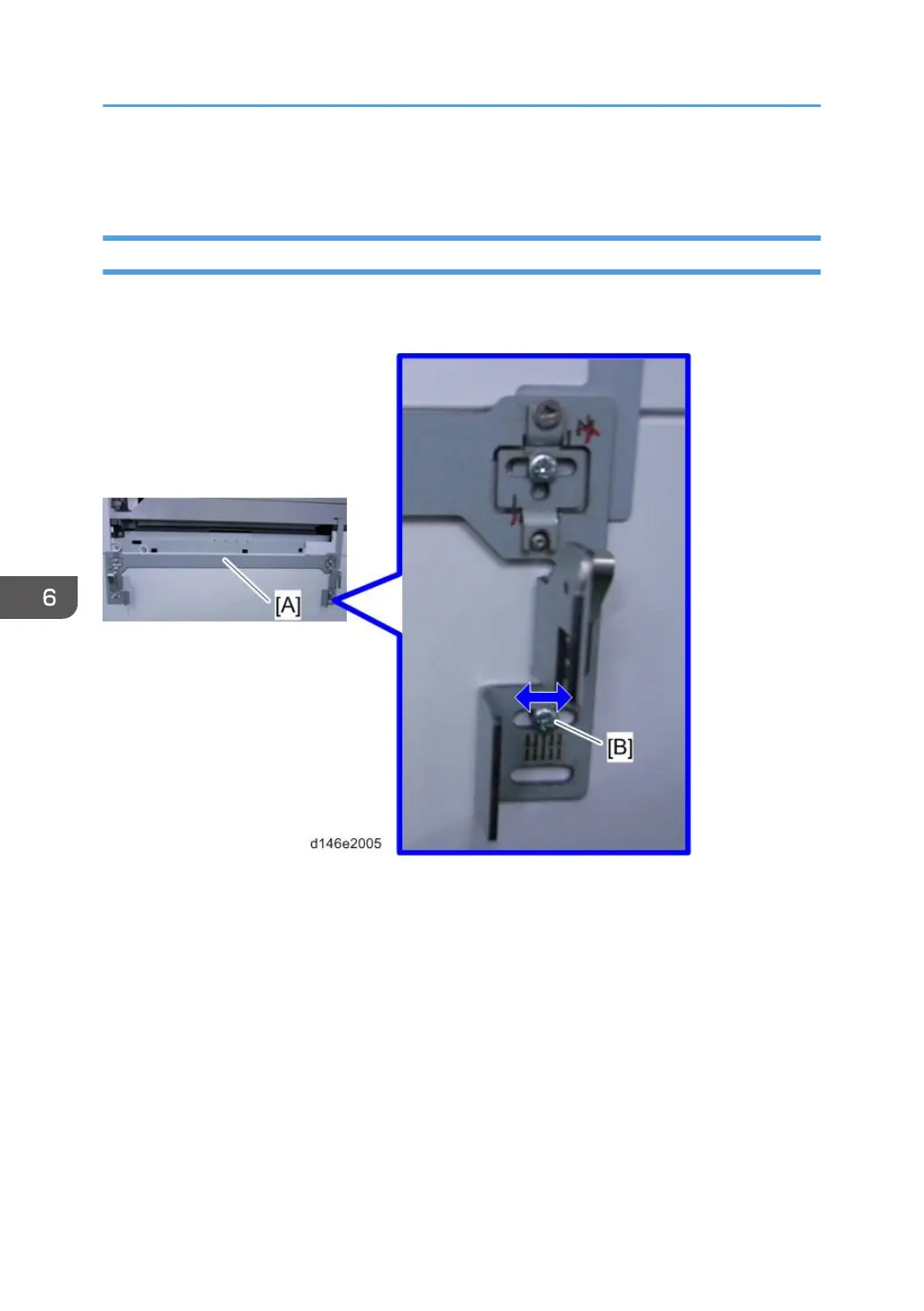

Side-to-side registration can be adjusted by the docking bracket for SR3220 [A] (and the docking

bracket screw [B]).

6. Troubleshooting

1044
