Ricoh MP C2504 - PCU Motor: Black; ITB Drive Motor

To Next Page

To Previous Page

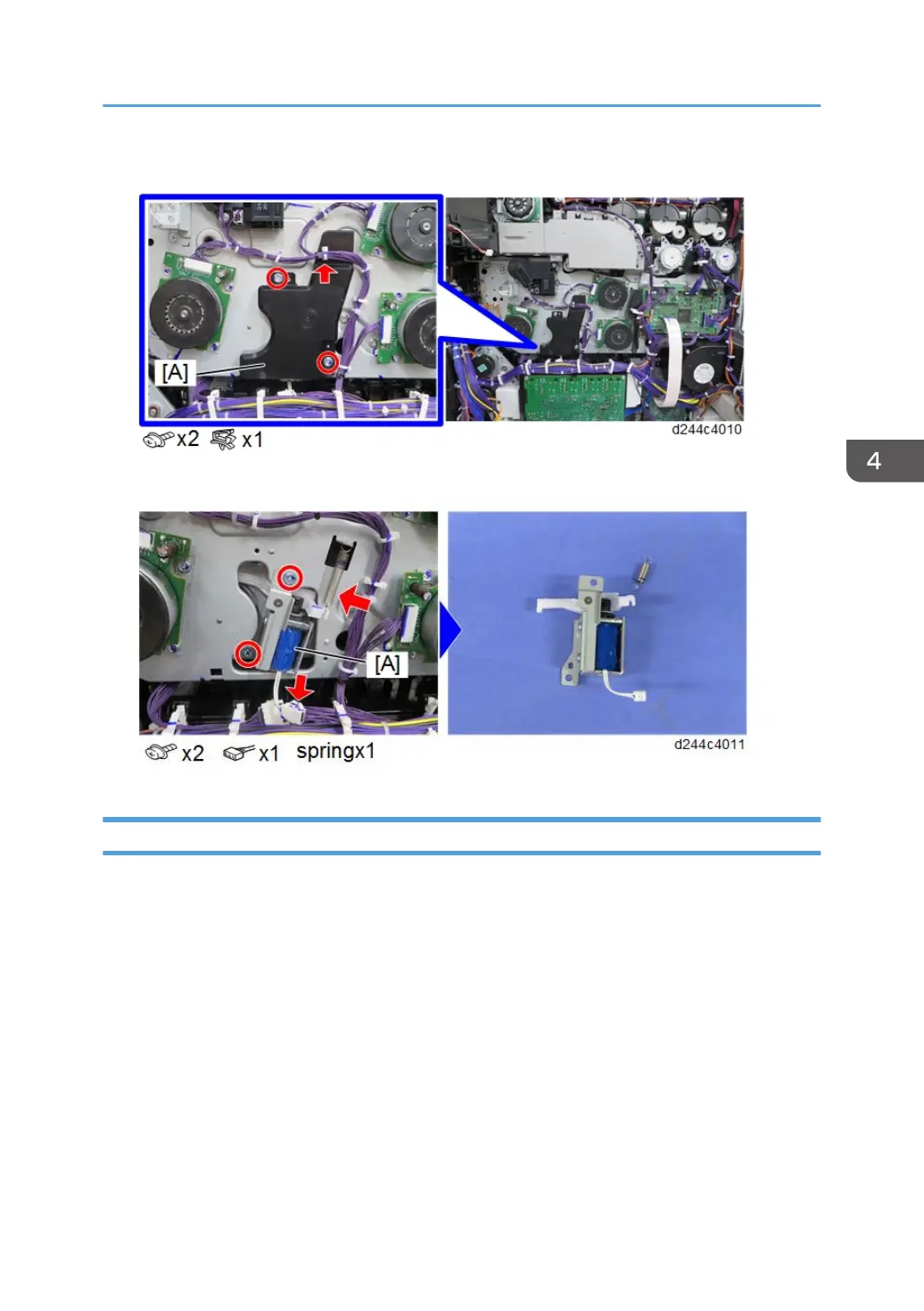

5. Development solenoid cover [A]

6. Development solenoid [A]

PCU motor: Black / ITB Drive Motor

1. Controller box (page 614)

2. Power supply box (page 620)

3. Right rear cover (page 412)

Drive Unit

517
