Ricoh MP C2504 - [E]: CMOS Clear; [F]: Fuse on the IPU

To Next Page

To Previous Page

3. Lock the hook.

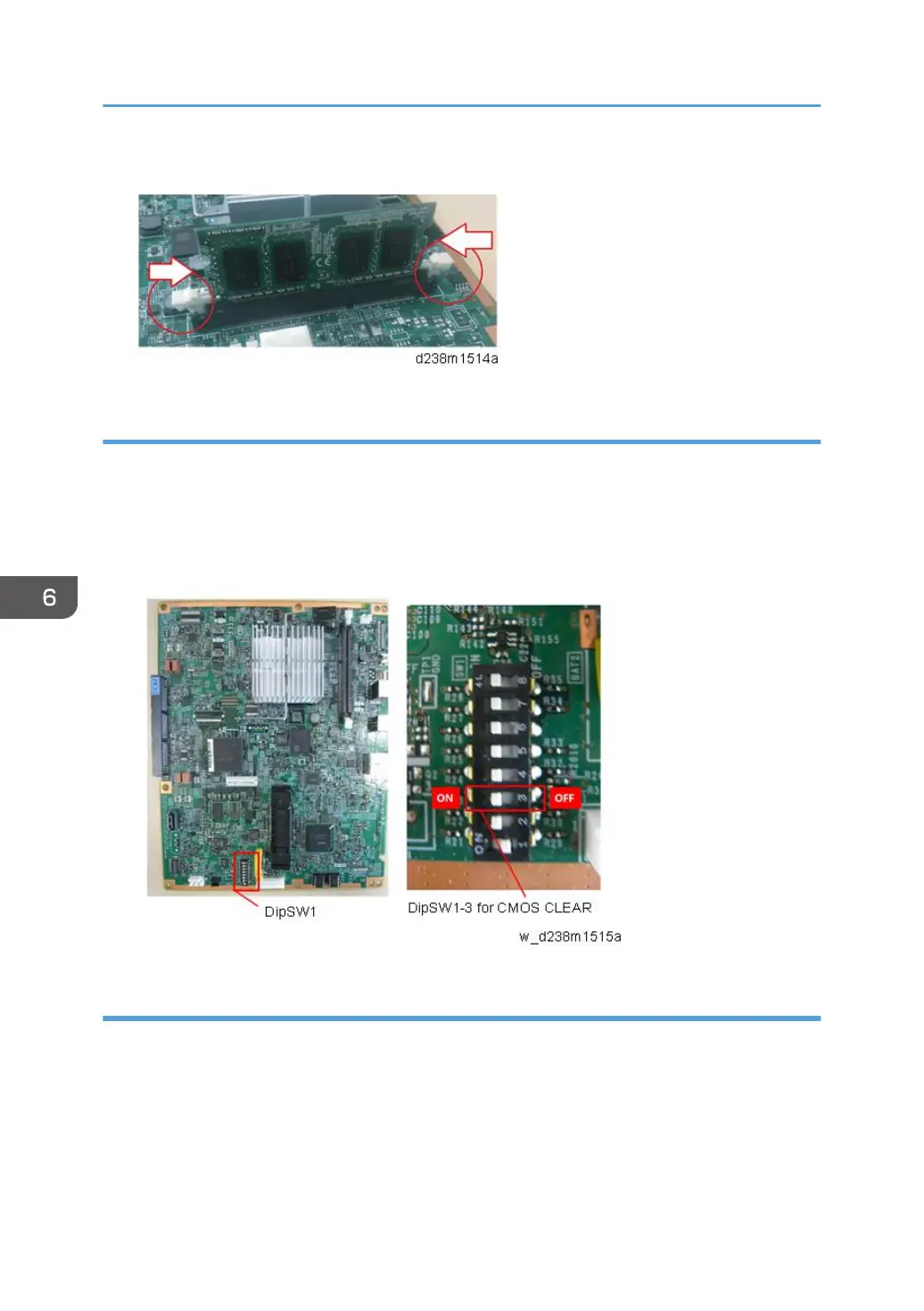

[E]: CMOS clear

1. Turn the machine power OFF.

2. Turn Dip switch 1-3 ON for 10 seconds

3. Turn Dip switch 1-3 OFF

4. Turn the machine power ON.

[F]: Fuse on the IPU

Fuse on the IPU

6. Troubleshooting

986
