Ricoh MP C2504 - Sub Hopper

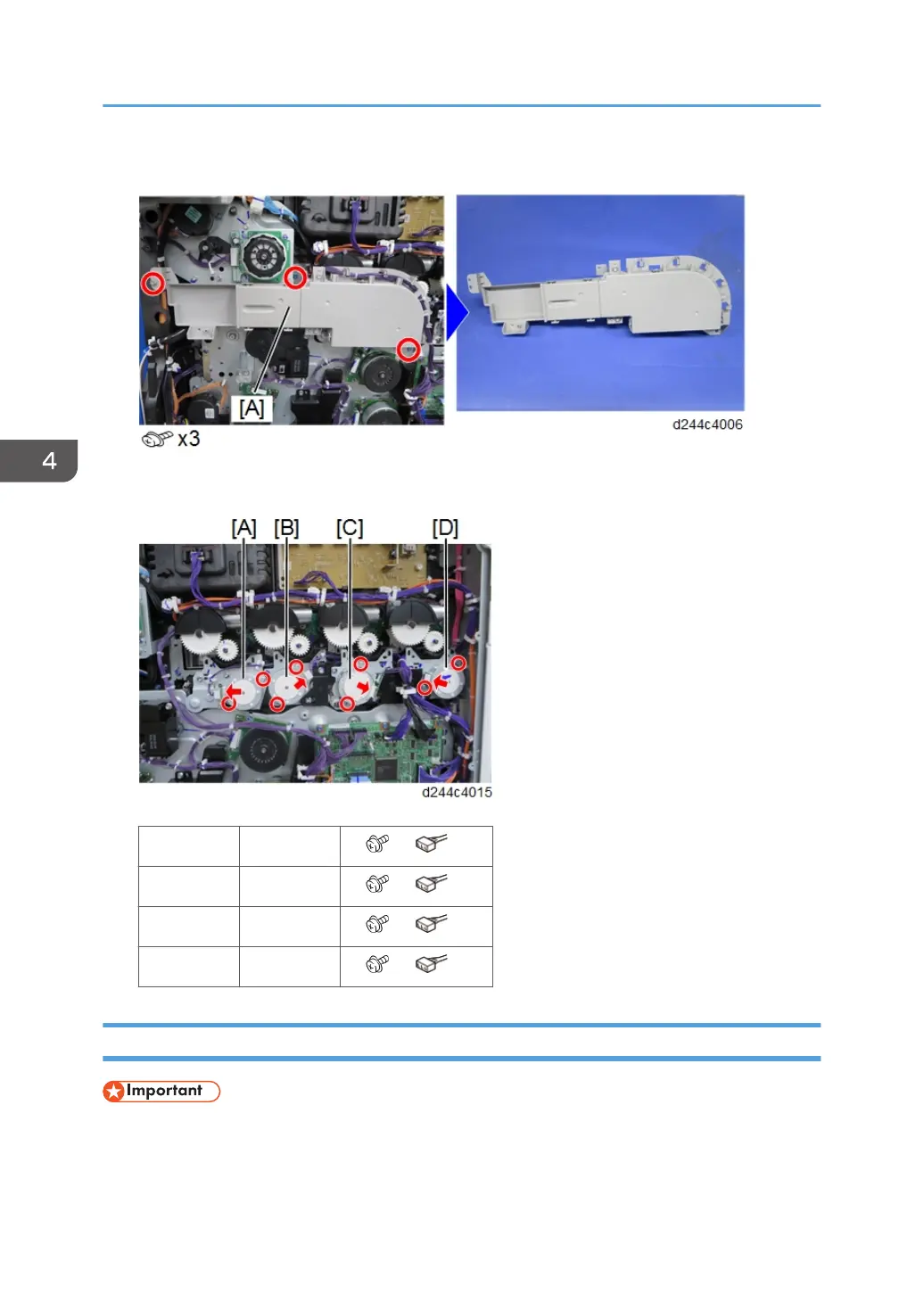

3. Duct [A]
4. Toner supply motor
[A] K ×2, ×1
[B] C ×2, ×1
[C] M ×2, ×1
[D] Y ×2, ×1
Sub Hopper
• When removing the sub hopper, be careful not to tilt it to avoid spilling the toner inside the hopper.
