Ricoh MP C2504 - Fusing Lower Cover

To Next Page

To Previous Page

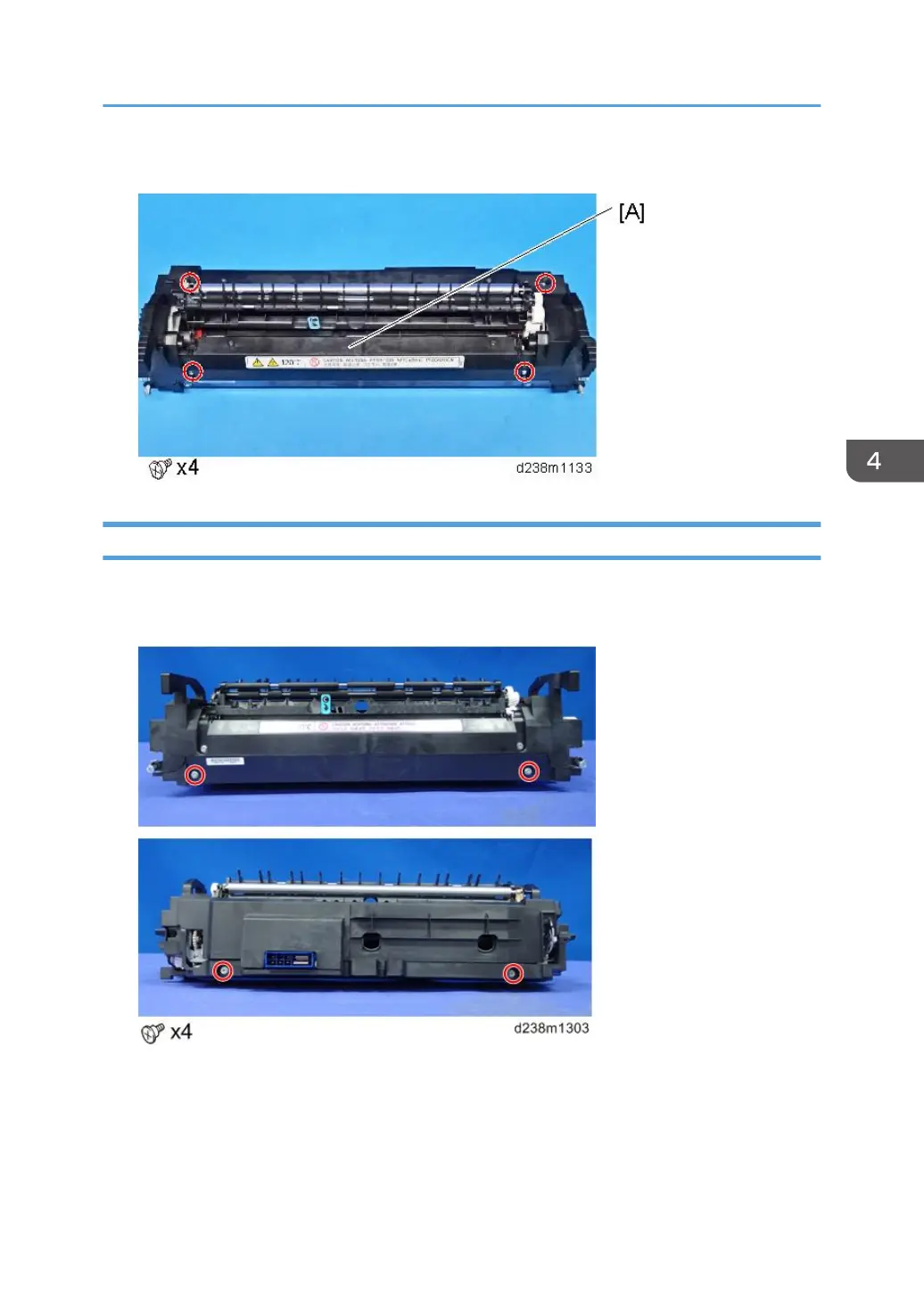

2. Fusing upper cover [A]

Fusing Lower Cover

1. Fusing unit (page 541)

2. Remove 4 screws on the front and rear sides.

Fusing Unit

545
