Paper Transfer Roller

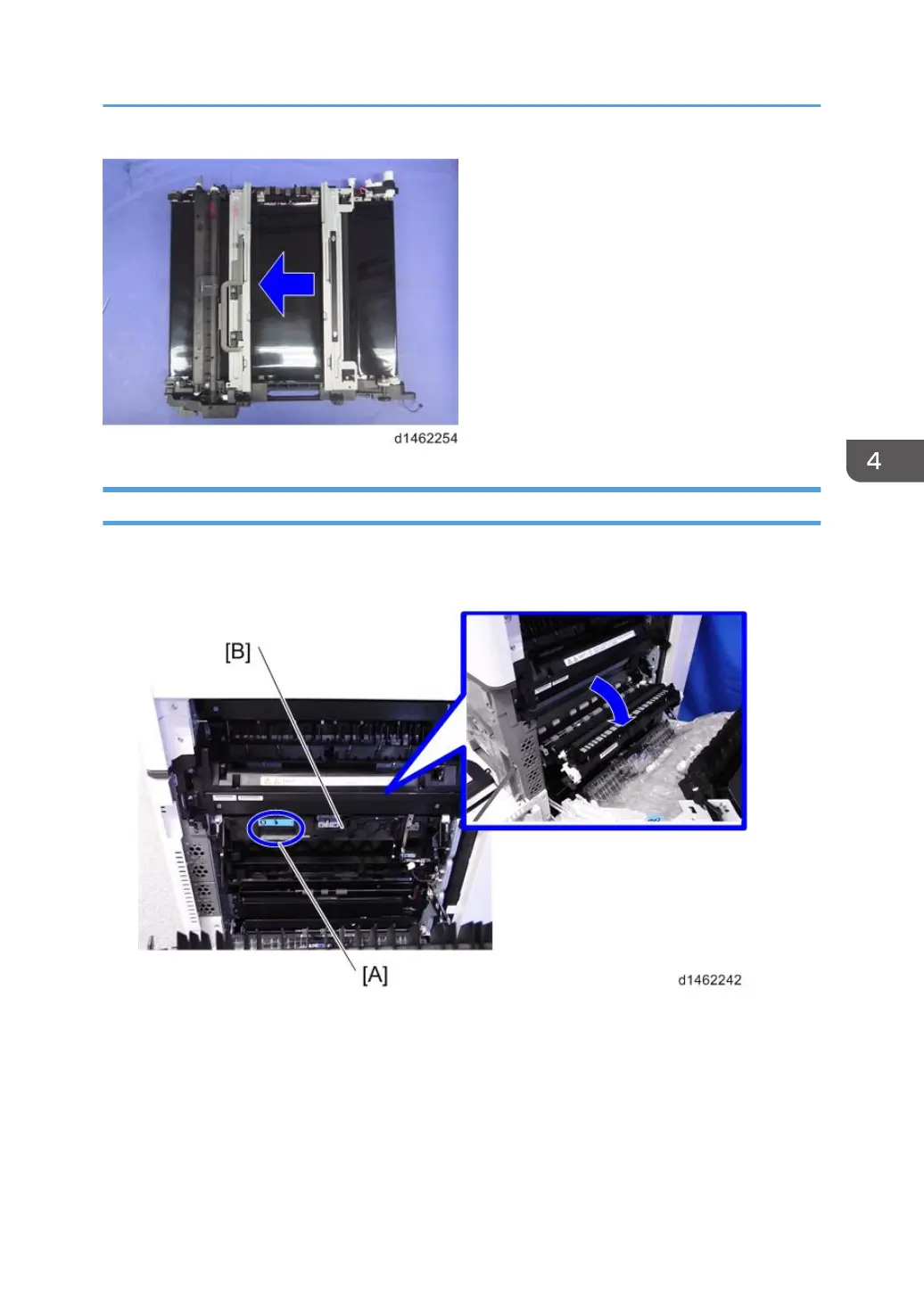

1. Open the right door.

2. Pull the handle [A] and open the paper transfer unit [B].

Image Transfer Unit

491
