Ricoh MP C2504 User Manual

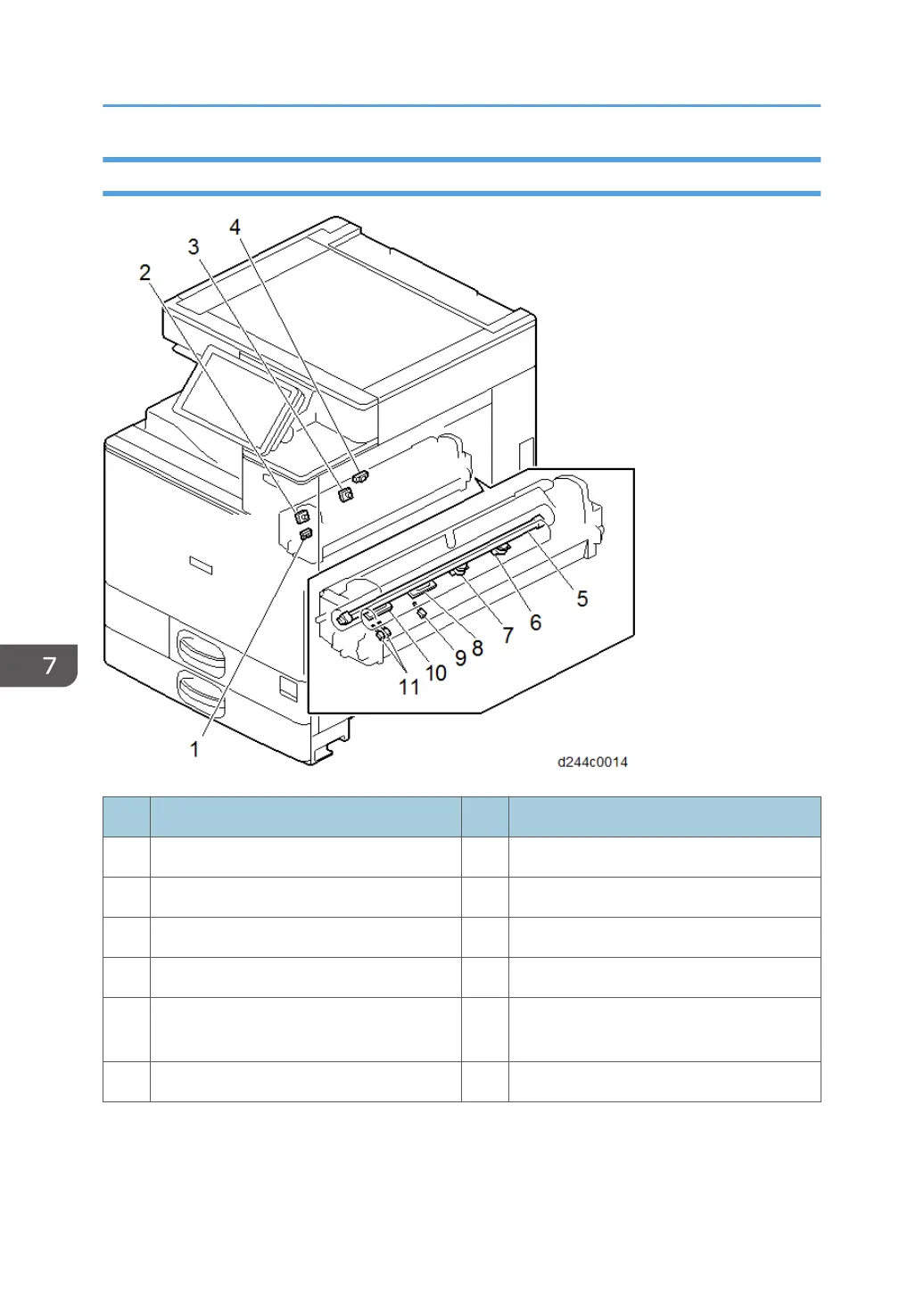

Fusing Unit
No. Description No. Description
1 Pressure roller HP sensor 7 Fusing sleeve thermostat (center)
2 Thermopile (edge) 8 Non-contact thermistor (center)
3 Thermopile (center) 9 Pressure roller thermistor (center)
4 Fusing exit sensor 10 Non-contact thermistor (edge)
5 Fusing lamp 11
Pressure roller thermistors (edge, full-bleed
edge)
6 Fusing sleeve thermostat (edge)
7. Detailed Descriptions
1094

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
