Ricoh MP C2504 - Controller Box Cooling Fan

To Next Page

To Previous Page

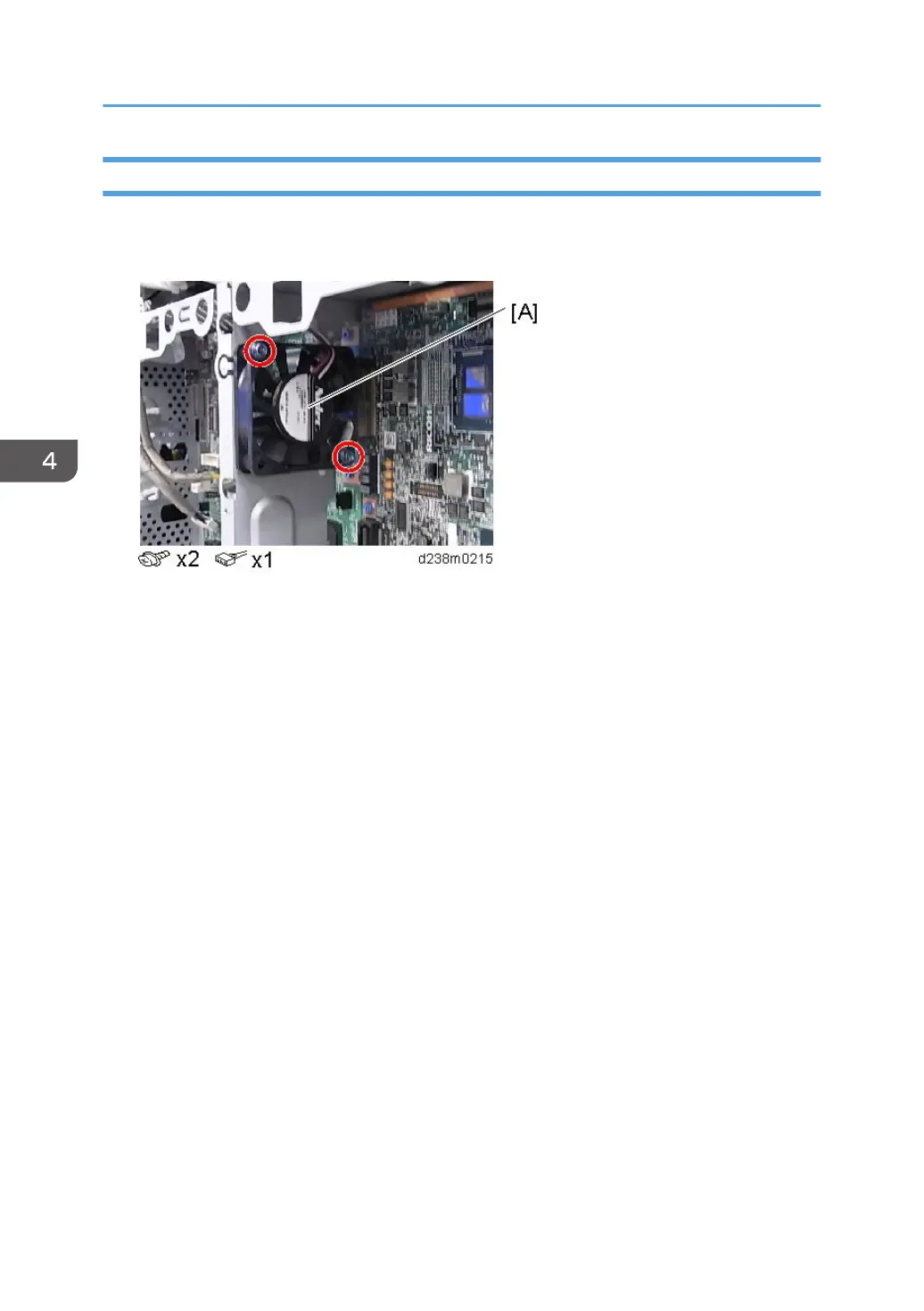

Controller Box Cooling Fan

1. Controller box cover (page 600)

2. Controller box cooling fan [A]

4. Replacement and Adjustment

632
