Ricoh MP C2504 User Manual

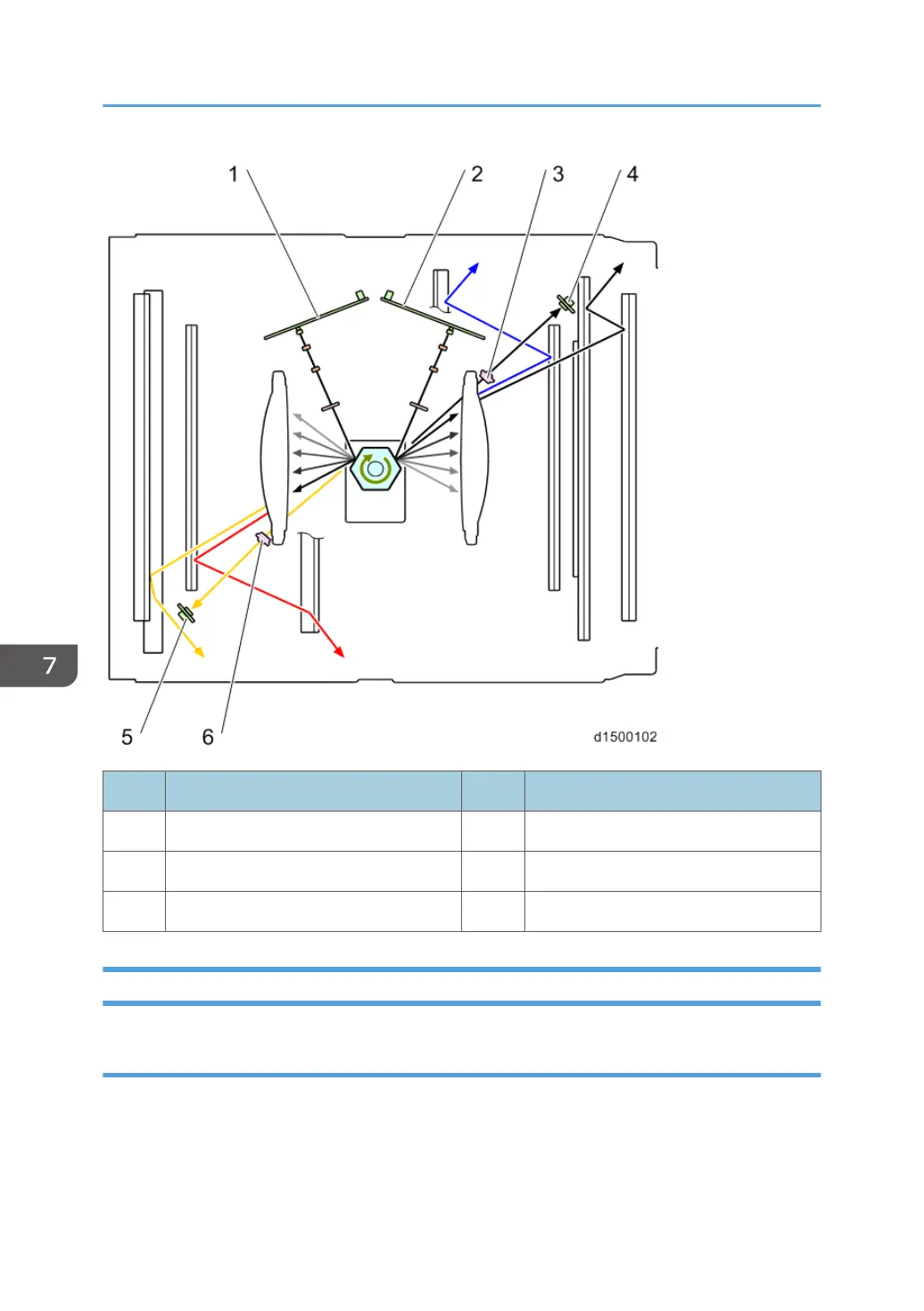

No. Description No. Description
1 LD drive board (M/Y) 4 Synchronizing detector board: Bk/C-S
2 LD drive board (Bk/C) 5 Synchronizing detector board: M/Y-S
3 Cylinder lens (Bk/C) 6 Cylinder lens (M/Y)
Mechanism
LD Drive Board
The LD Unit is provided with two LD drive board. The beam system is a 1 beam type.
The LD drive board comprises an LD (laser diode), PD (photodiode) and LD control unit.
• The LD outputs the laser light to the PCU.
• The PD continuously detects laser light from LD, and outputs it to the LD control unit.
7. Detailed Descriptions
1116

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
