Ricoh MP C2504 - Toner Supply Cooling Fan

To Next Page

To Previous Page

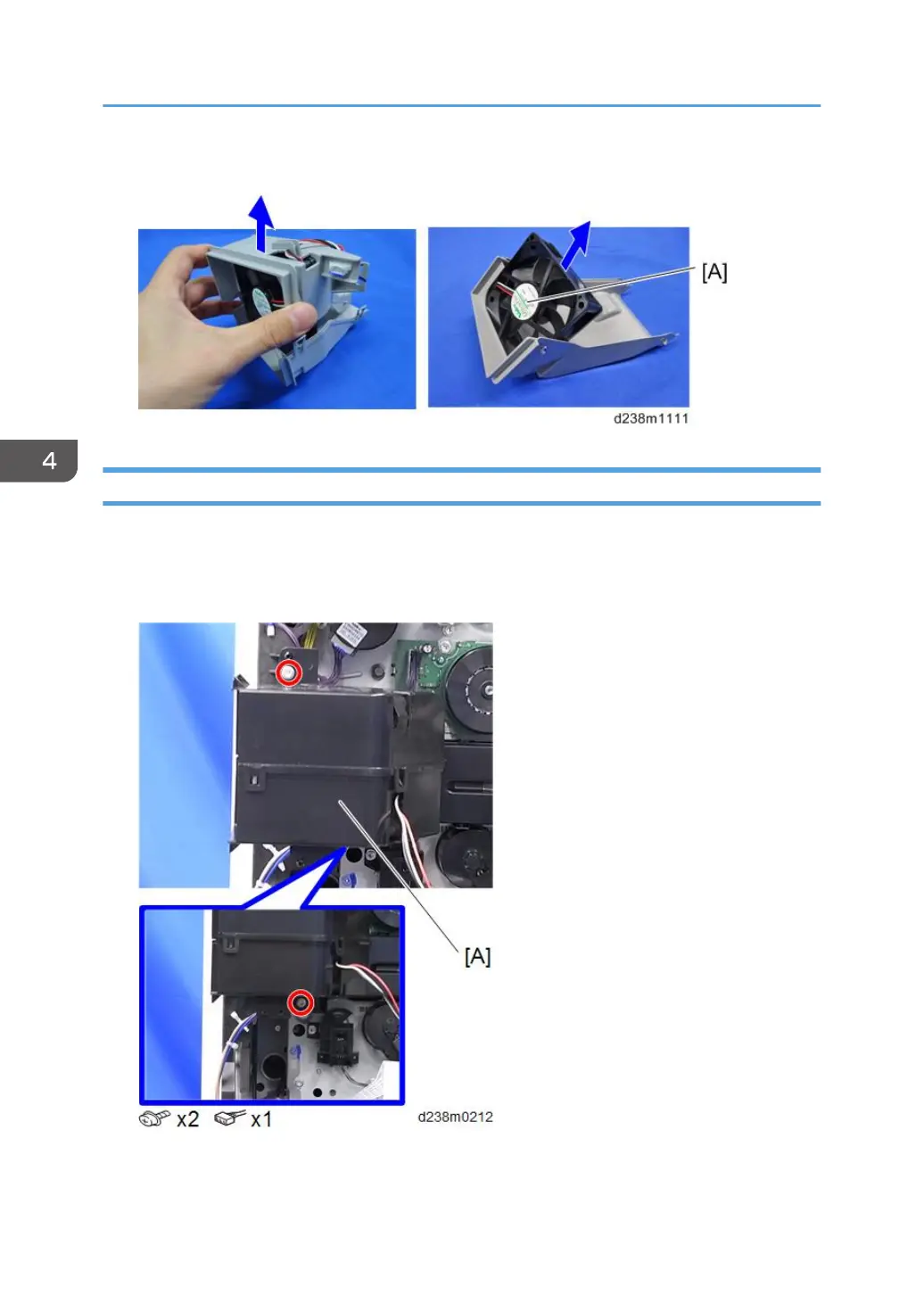

4. Fusing exhaust fan [A]

Toner Supply Cooling Fan

1. Rear cover (page 411)

2. Right rear cover (page 412)

3. Toner supply cooling fan unit [A]

4. Replacement and Adjustment
