Ricoh MP C2504 - Right Upper Cover; Front Upper Cover

To Next Page

To Previous Page

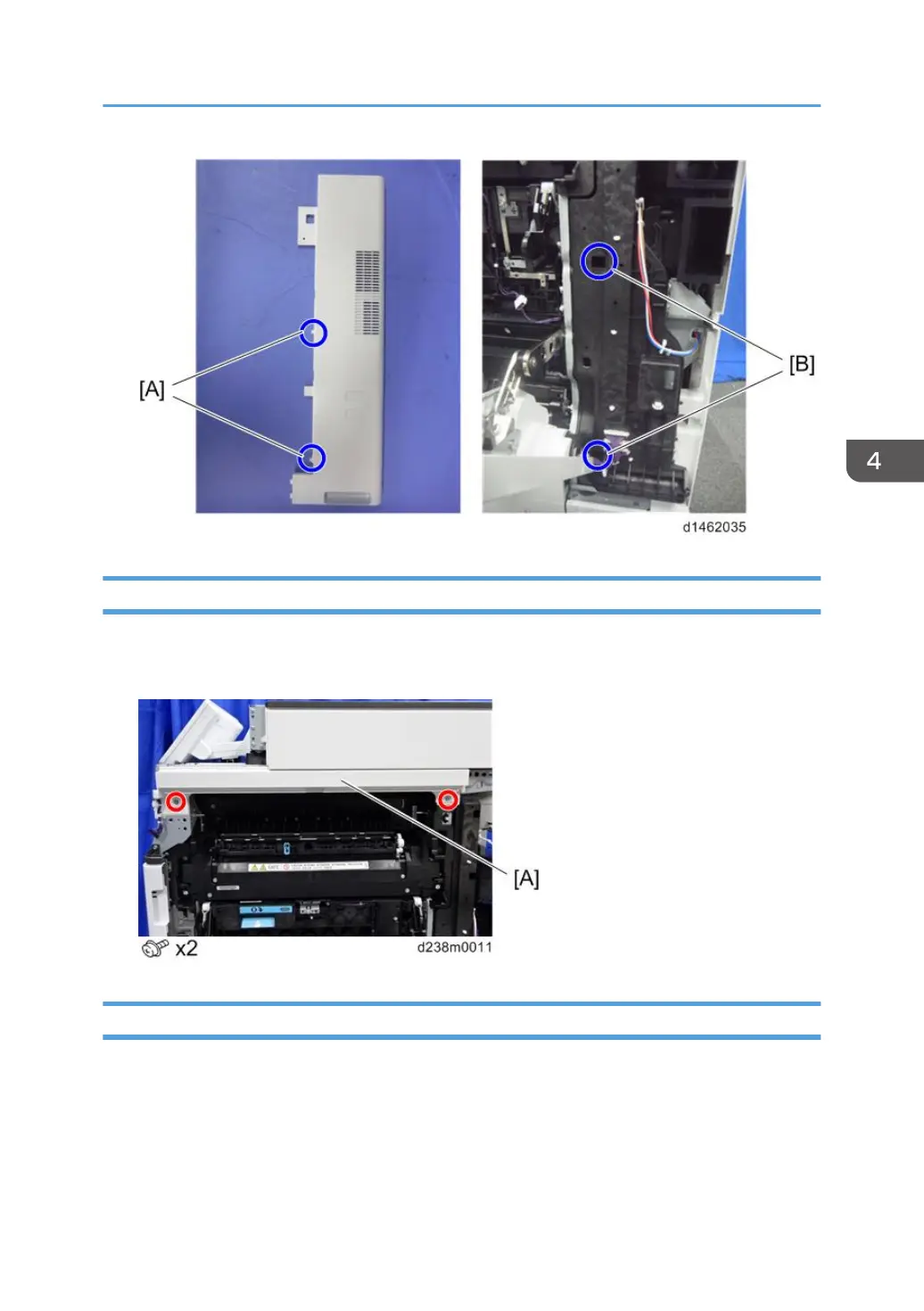

Right Upper Cover

1. Front upper cover (page 413)

2. Right upper cover [A]

Front Upper Cover

1. Open the right door.

Exterior Covers

413
